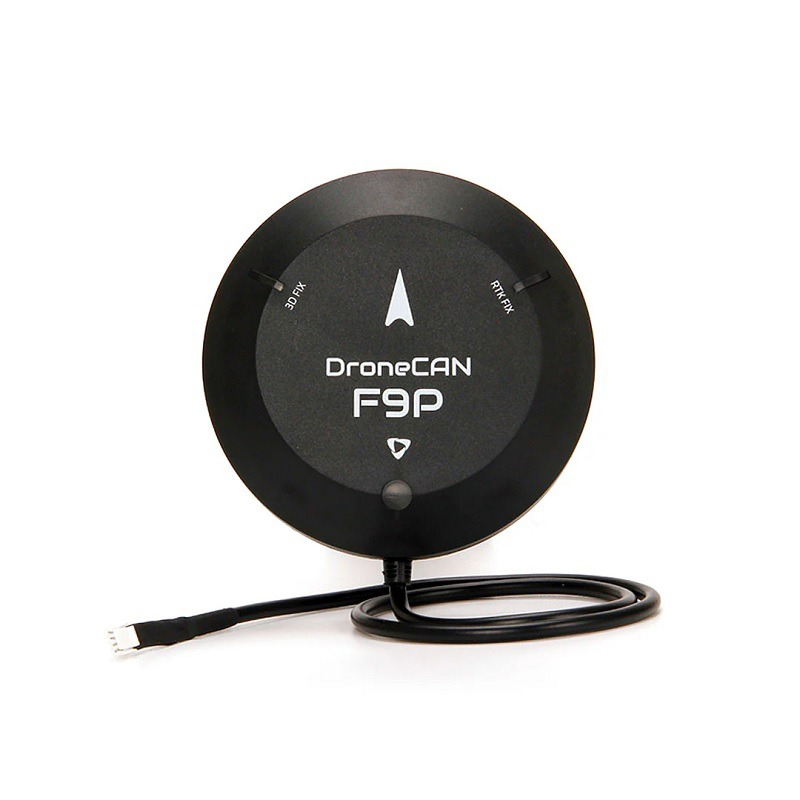

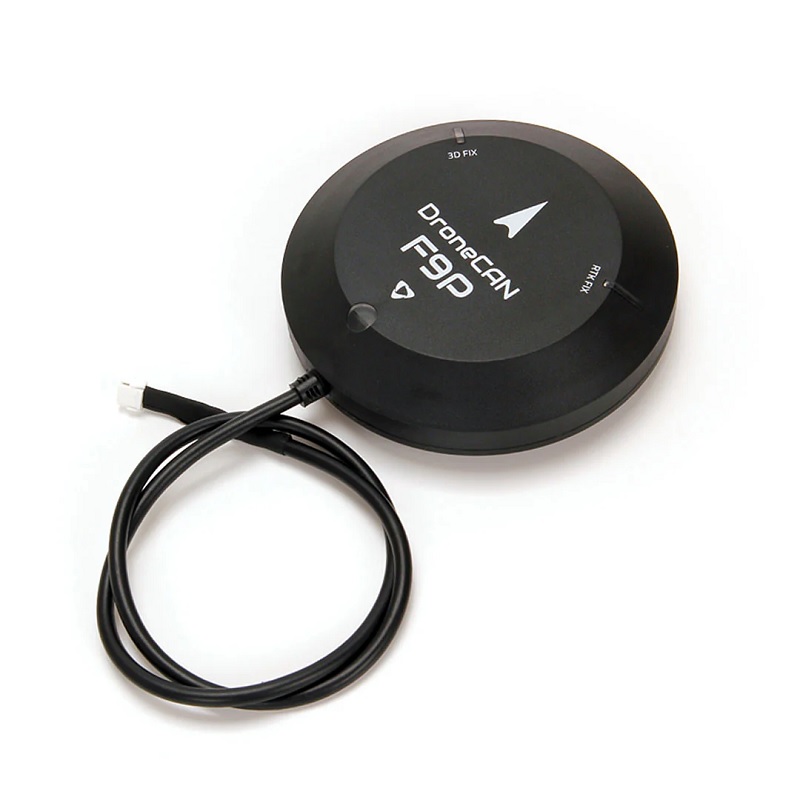

The DroneCAN H-RTK F9P is the latest differential high-precision GNSS positioning system. It has adopted the DroneCAN protocol for communication. It provides multi-band RTK with fast convergence times and reliable performance, concurrent reception of GPS, GLONASS, Galileo, and BeiDou, and a fast update rate for highly dynamic and high-volume applications with centimeter accuracy.

With the adoption of the DroneCAN Protocol, it has up to an 8 Hz navigation update rate, upgradeability, noise immunity, and real-time features, and is more robust than UART due to its increased resistance to electromagnetic interference. It does not occupy any serial port of the flight controller, and multiple CAN devices can be connected to the same CAN bus via a hub.

The DroneCAN-F9P uses a u-blox ZED-F9P module, a BMM150 compass, and a tri-colored LED indicator, and is equipped with the STM32G4 processor running at 170 MHz with 512 KByte Flash and 96KByte RAM. It supports DroneCAN firmware upgrades via the DroneCAN GUI Tool. It is compatible with the open-source Pixhawk series flight controller.

Features:

1. The Rover model has a flatter profile and stronger water resistance.
2. It uses a dual-band patch antenna and comes with an integrated cable to connect to the CAN bus.
3. It excels in spaces where there are few obstructions.
4. Built with durable materials to withstand rugged conditions and ensure long-term reliability.

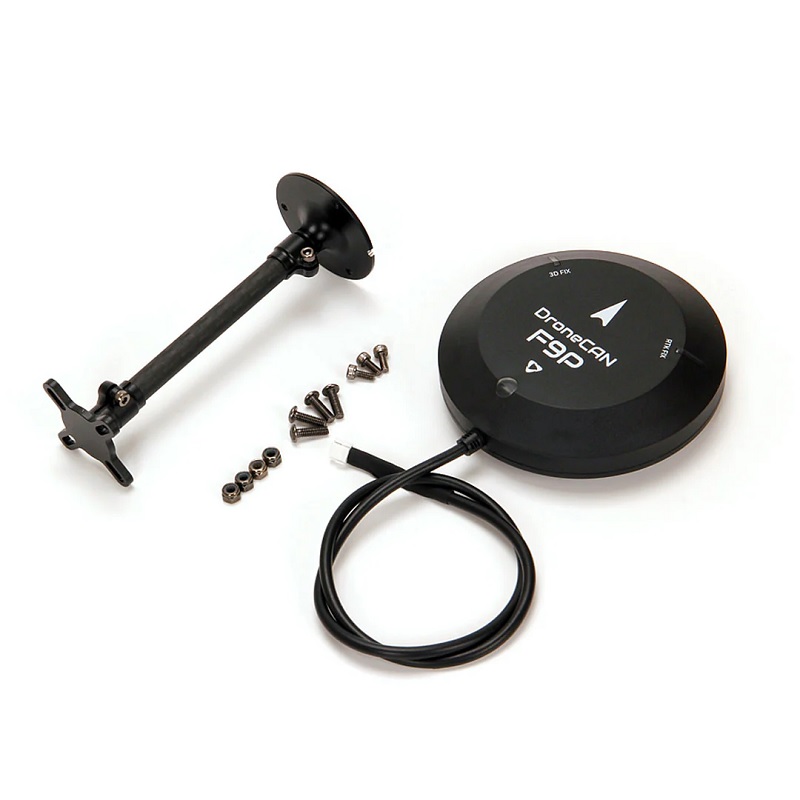

Package Includes:

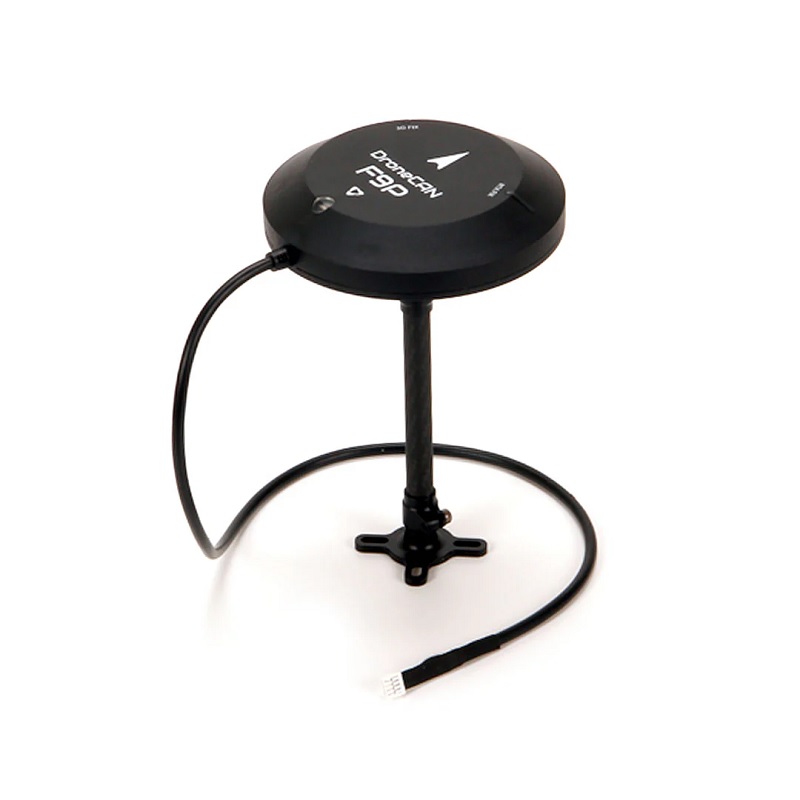

1 x Holybro DroneCAN H-RTK F9P Rover 42 Cm

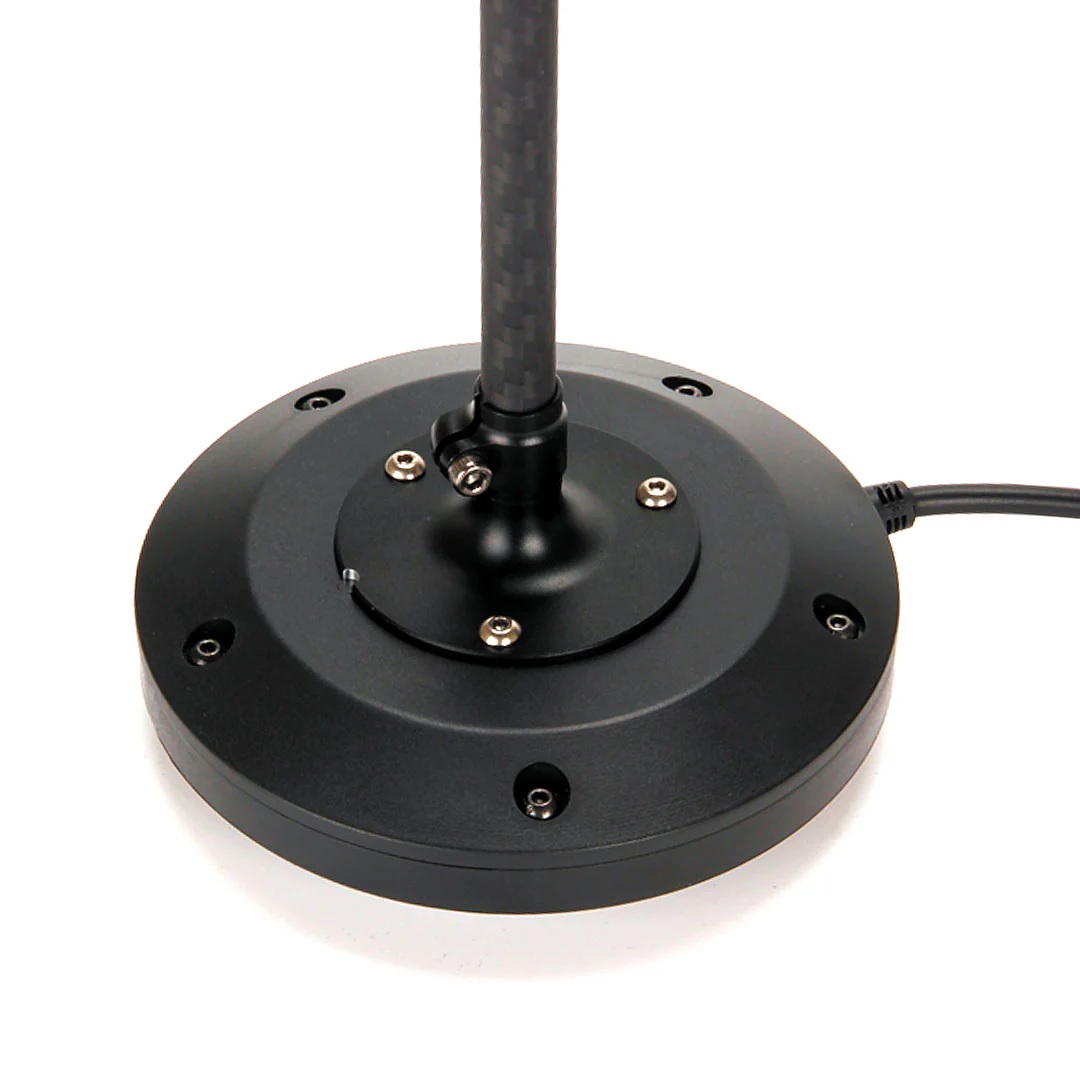

1 x Fixed Carbon Fiber GPS mount
