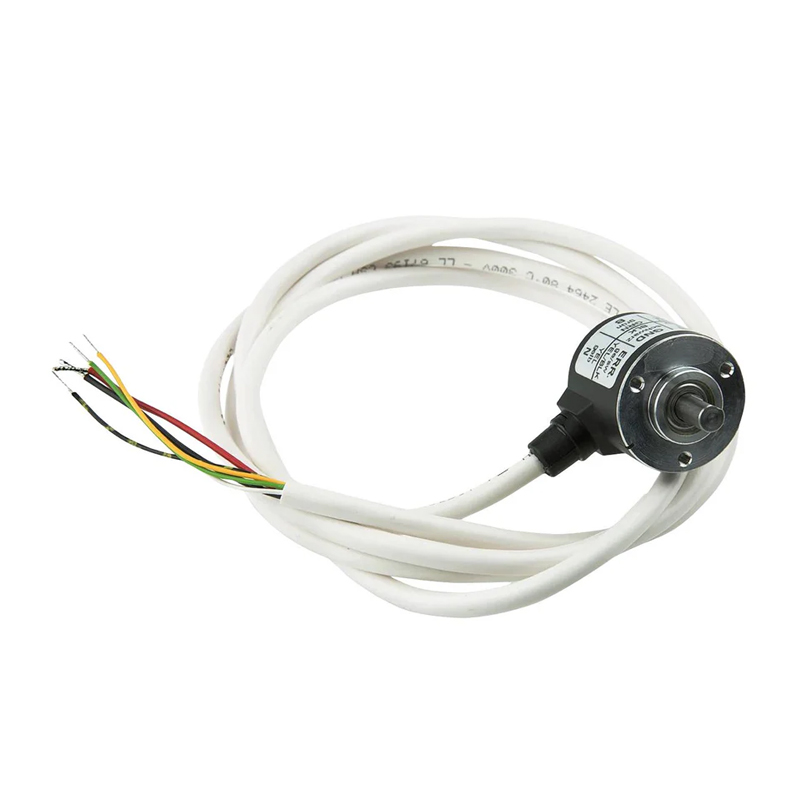

HENGSTLER 0529110 Rotary Encoder, Optical, Incremental, 500 PPR, 0 Detents, Horizontal, Without Push Switch, RI38 Series
- Resolution: 500 Pulses Per Revolution (PPR)
- Supply Voltage: 10VDC to 30VDC
- Maximum Speed: 10,000 RPM
- Output Type: Push-Pull (3 Channels)
- Shaft Size: 6mm diameter, 12.5mm length
SKU: Not Found
Brand: HENGSTLER
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The HENGSTLER 0529110 RI38 Series Rotary Encoder is a high-precision optical incremental encoder designed for accurate motion control and position feedback in industrial automation systems. With 500 pulses per revolution (PPR), this encoder ensures reliable speed and position monitoring in demanding applications. Built with a robust solid 6mm shaft and flange mounting design, it delivers stable performance even at high rotational speeds up to 10,000 RPM.
Its push-pull output, wide 10–30V DC supply range, and durable construction make it ideal for CNC machines, packaging systems, robotics, and motor control applications. Compact, reliable, and easy to integrate, the RI38 Series encoder is engineered for consistent and long-term performance.
Features:
- Optical incremental encoder with 500 PPR resolution
- High-speed operation up to 10,000 RPM
- Push-Pull output for stable signal transmission
- Solid 6mm shaft with flange mounting
- Wide operating voltage range 10–30V DC
Package Includes:
1 x HENGSTLER 0529110 Rotary Encoder, Optical, Incremental, 500 PPR, 0 Detents, Horizontal, Without Push Switch, RI38 Series
Technical Specifications
| Encoder Technology | Optical |
|---|---|
| Encoder Type | Incremental |
| Height (mm) | 26.7 |
| Item Type | Rotary Encoder |
| Length (mm) | 39 |
| Maximum Speed | 10,000 RPM |
| Model No | 529110 |
| Operating Temperature (°C) | -10 to +60 |
| Orientation | Horizontal |
| Output Type | Push-Pull (3 Channels) |
| Resolution | 500 Pulses Per Revolution (PPR) |
| Safety IP Rating | IP40, IP50 |
| Shaft Size (mm) | diameter : 6, length : 12.5 |
| Shipping Dimensions | 9 × 6 × 5 cm |
| Shipping Weight | 0.3 kg |
| Supply Voltage (VDC) | 10 to 30 |
| Termination | Cable |
| Weight (g) | 250 |
| Width (mm) | 39 |
