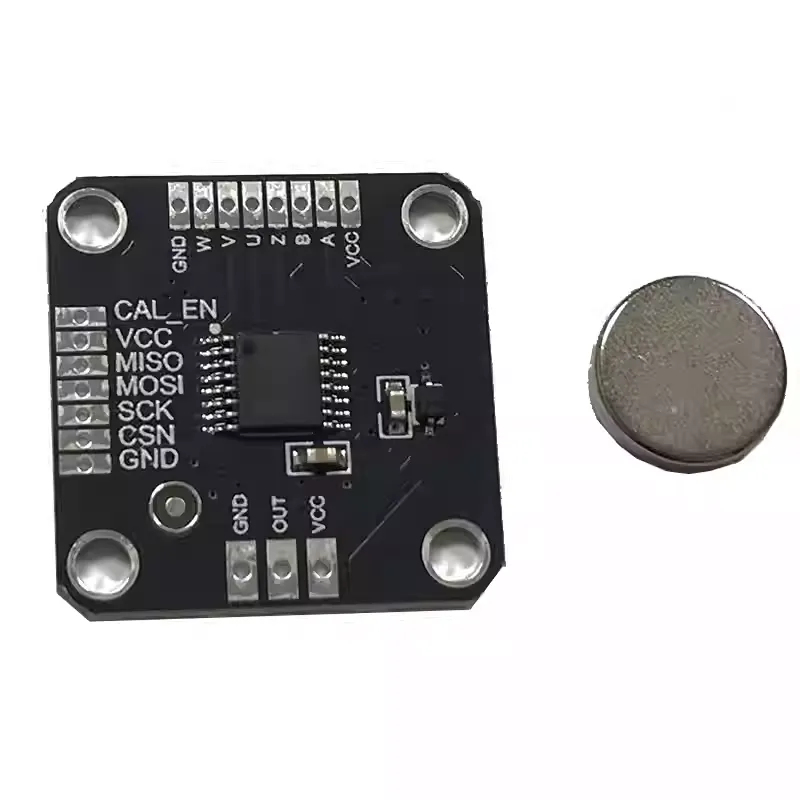

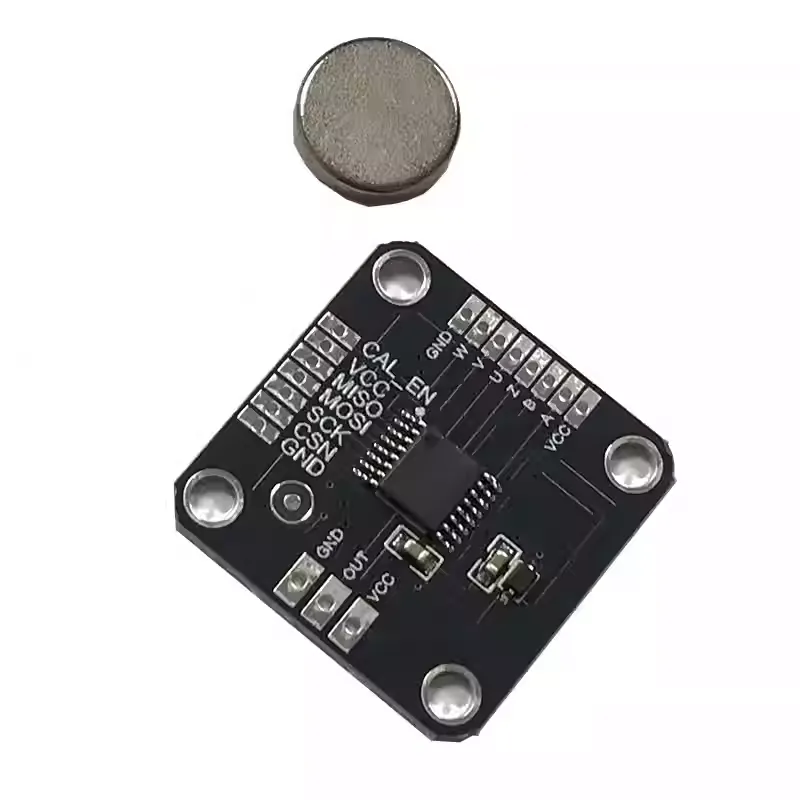

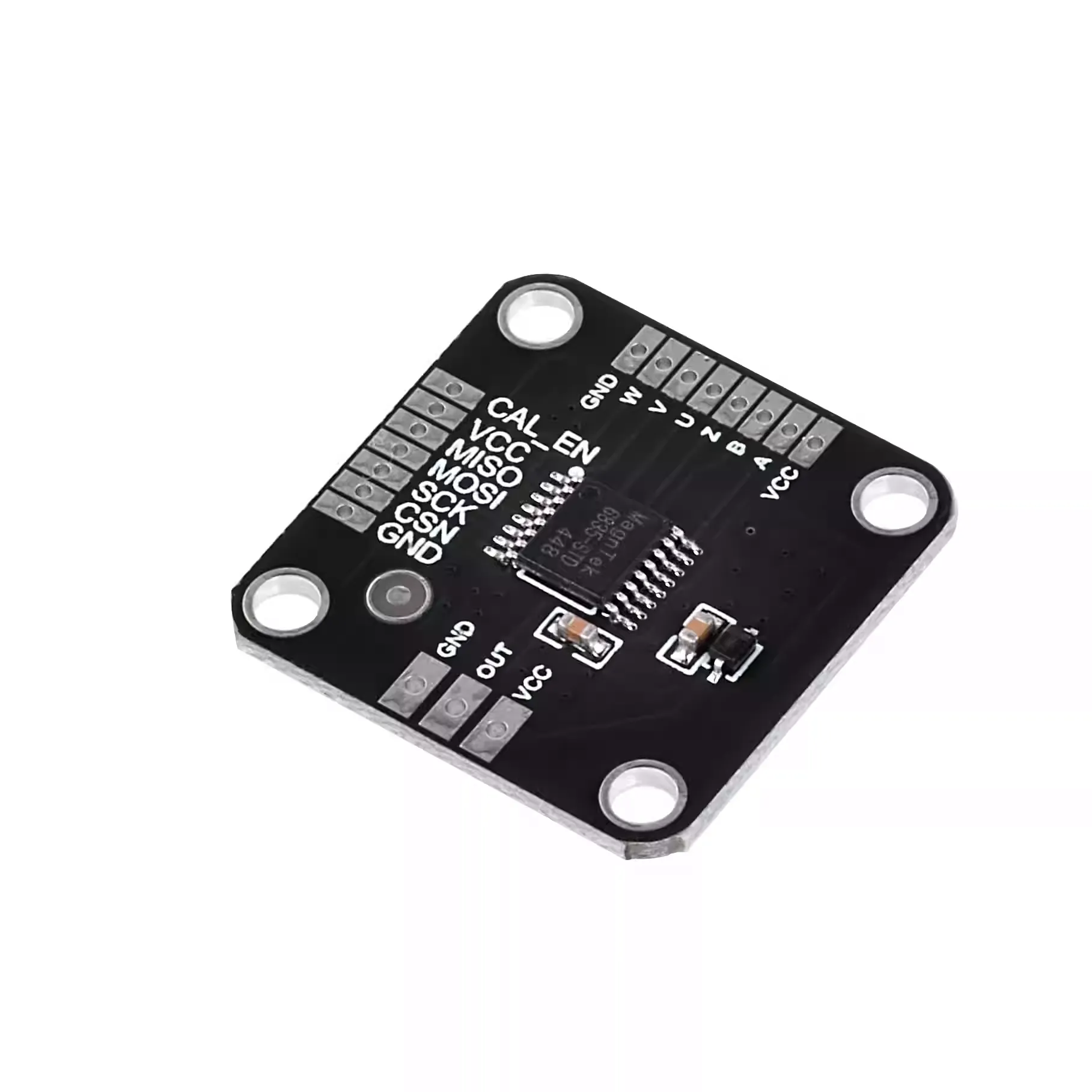

MT6835 magnetic encoder module PWM/SPI brushless motor 21BIT encoder with magnet to replace AS5048 – AB 10000
- 21-bit absolute angle encoder using AMR technology
- High precision with SPI, PWM, ABZ, and UVW outputs
- Supports speeds up to 120,000 RPM
- ABZ output resolution: 1–10000 PPR
- UVW output: 1–16 pole pairs configurable
- Ideal to replace AS5048 – AB 10000
SKU: Not Found
Brand: Generic
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The MT6835 magnetic encoder module from MagnTek is a high-speed, high-precision 21-bit absolute angle encoder designed to elevate your brushless motor or robotics project. Using cutting-edge AMR technology, it delivers smooth, accurate 360° angle detection with ultra-low system latency. It supports PWM and SPI interfaces, with incremental ABZ and UVW outputs, making it highly versatile for industrial automation, CNC machines, and servo systems. With a wide voltage range (3.3–5V), compact TSSOP-16 package, and speeds up to 120,000 RPM, it is the perfect upgrade for AS5048 – AB 10000 encoders, offering unmatched performance and reliability.
Features:
- –360° absolute angle sensing via AMR technology
- High-speed operation: up to 120,000 RPM
- SPI, PWM, ABZ, UVW output modes supported
- 21-bit resolution via SPI (18-bit core), 12-bit PWM output
- Flexible user-programmable ABZ/UVW resolutions
- Operating temperature: -40°C to +125°C (industrial grade)
Package Includes:
1 x MT6835 magnetic encoder module PWM/SPI brushless motor 21BIT encoder with magnet to replace AS5048 – AB 10000
Technical Specifications
| Counts Per Revolution (CPR) | 21-bit |
|---|---|
| Encoder Type | Absolute Magnetic Encoder |
| Height (mm) | 02 |
| Length (mm) | 27 |
| Magnets | to replace AS5048 – AB 10000 |
| Operating Temperature (°C) | -40~125 |
| Operating Voltage (VDC) | 3.3~5.0 |
| Pulse Per Revolution (PPR) | 1–10000 |
| Rated Speed (RPM) | 120,000 |
| Shipping Dimensions | 5 × 3 × 2 cm |
| Shipping Weight | 0.004 kg |
| Weight (g) | 03 |
| Width (mm) | 27 |
