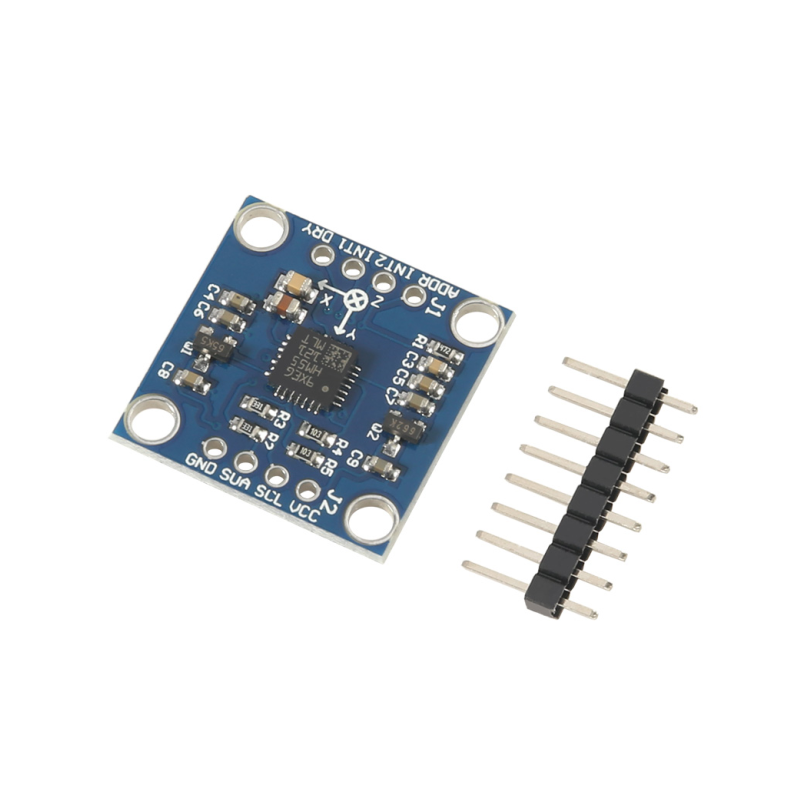

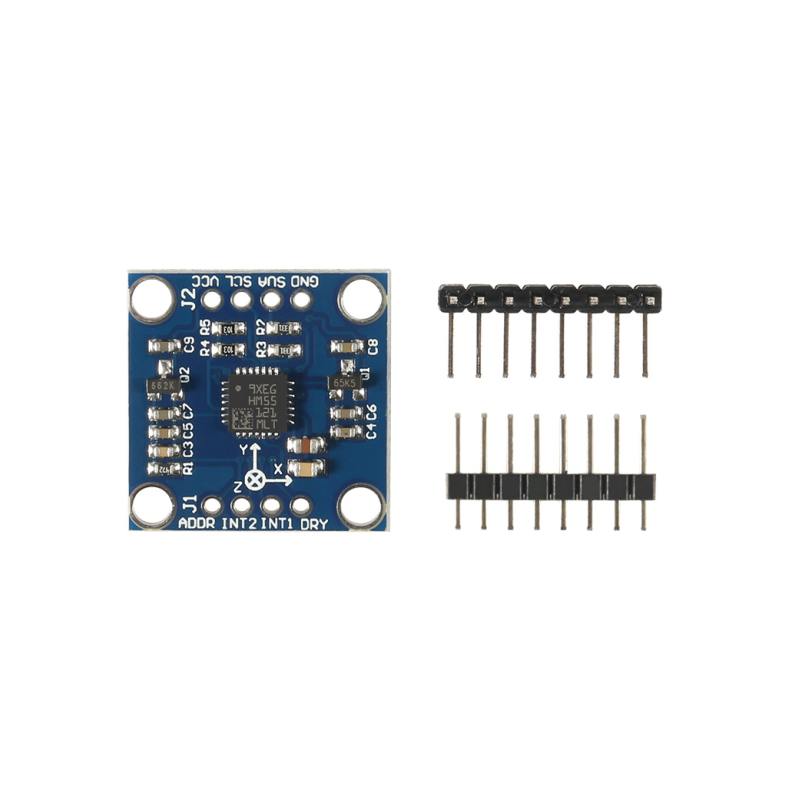

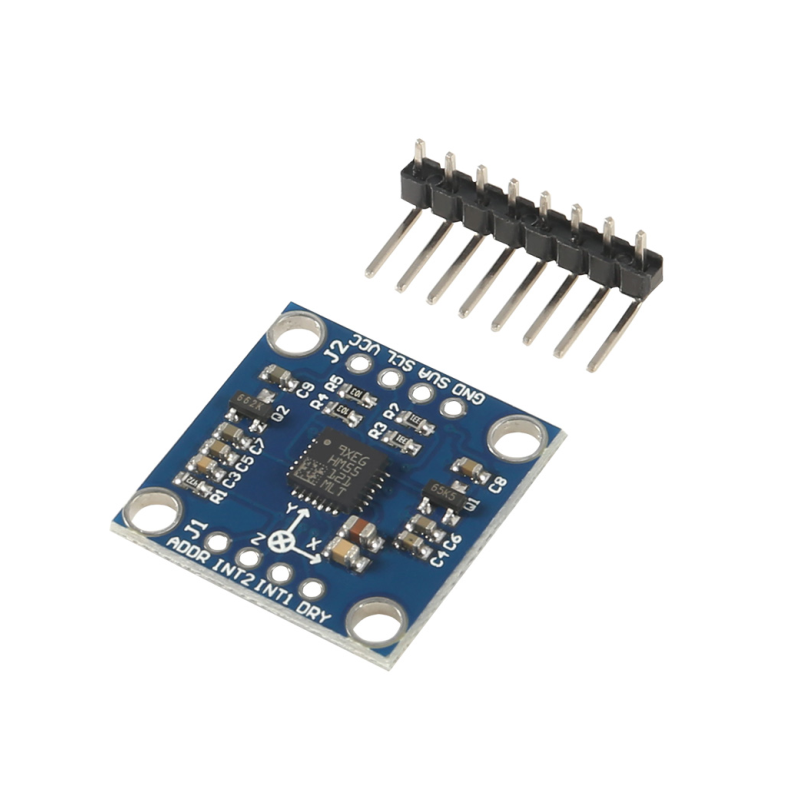

GY-51 LSM303DLH 3-Axis Magnetic Field Acceleration Module
- Model: GY-51 LSM303DLH
- 12 Bit A/D Converter
- 3-5VDC Power Supply
- I2C Communication Interface
- 16 Bit Data Output
SKU: Not Found
Brand: Unknown Brand
Out of stock
₹442.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The GY-51 LSM303DLH chip has an accelerometer, magnetometer, A / D converters and signal conditioning circuit integrated. Still, the communication to the processor is done through the I2C bus. Thus only one chip is required to achieve a six-axis data detection and output. The LSM303DLH requires very little peripheral devices.
Features:
- Integrated three-axis magnetometer and a tri-axial accelerometer with a digital interface.
- Comes with automatic detection.
- Also incorporates high-performance accelerometers.
- Accelerometers can run on LOW power mode.
Package Includes:
1 x GY-51 LSM303DLH module 3-axis magnetic field acceleration
Technical Specifications
| Acceleration (g) | Range: ± 2 g / ± 4 g / ± 8 g |
|---|---|
| Additional Specs. | Data Output: 16 bit |
| Communication Mode | I2C |
| Height (mm) | 2 |
| Item Type | Accelerometer |
| Length (mm) | 23 |
| Magnetic field range | ± 1.3 / ± 1.9 / ± 2.5 / ± 4.0 / ± 4.7 /± 5.6 / ± 8.1 gauss |
| Model No | GY-51 LSM303DLH |
| Operating Voltage (VDC) | 3 to 5 |
| Shipping Dimensions | 6 × 8 × 2 cm |
| Shipping Weight | 0.005 kg |
| Weight (g) | 3 |
| Width (mm) | 23 |
