Soil Moisture Sensors

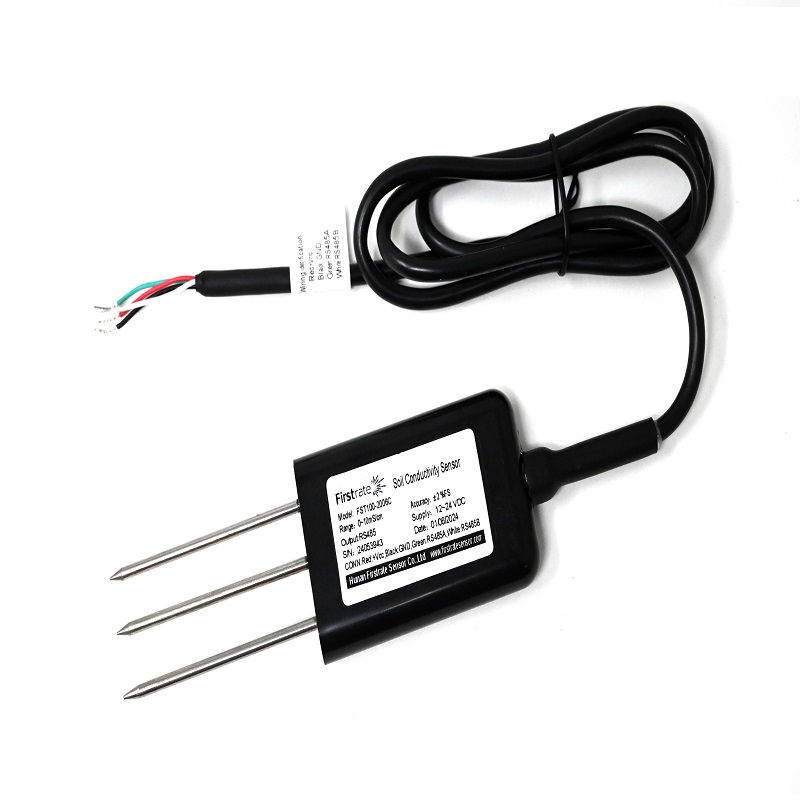

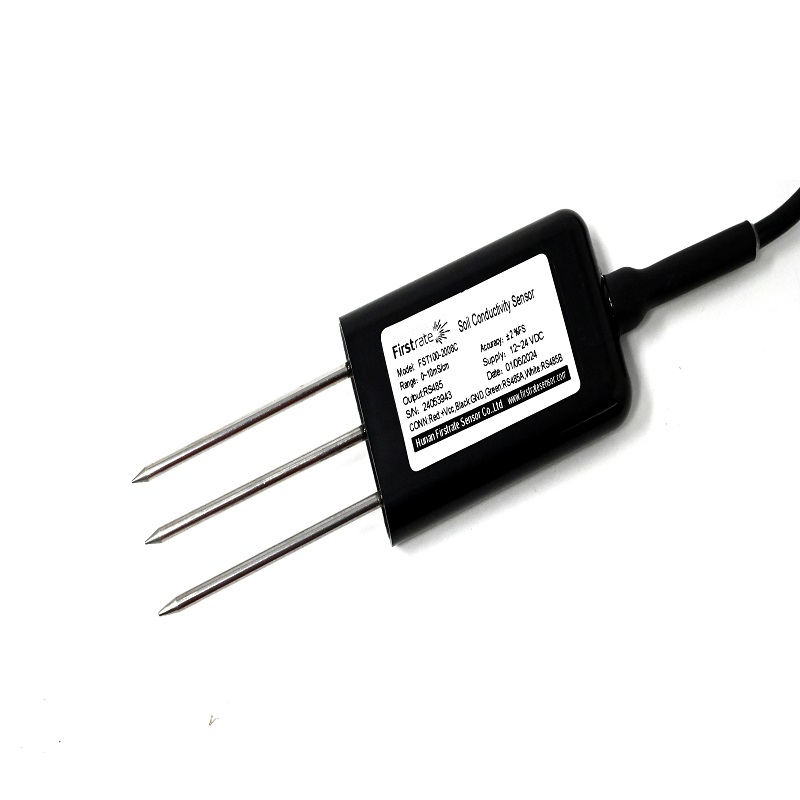

FirstRate FST100-2006C Soil Conductivity Sensor Material Graphite, Range: 0~10 mS/c (RS485)

  • Model: FST100-2006C Soil Conductivity Sensor (EC value)
  • Test range: 0~10 mS/cm
  • Operating temperature: -40°C~80°C
  • Signal output:RS485
  • Power supply:12~24V
  • Electrical connector: Direct out 1M cable

SKU: Not Found

Brand: FirstRate

Out of stock
₹3697.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
Currently Unavailable
  • 100% Secure Checkout
  • 7-Day Easy Returns
  • Authentic & Quality Checked
  • 24/7 Priority Support
Secure Payment

Product Description

FST100-2006C The soil conductivity sensor uses a graphite electrode to convert the analog or digital signal of the soil conductivity through a transmitter. After the conductivity sensor is buried in the soil, the conductivity of the soluble salt ions in the soil solution is directly measured. Graphite electrodes have the characteristics of stable performance and high sensitivity, and have a wide range of applications, especially for high conductivity, so they are very suitable for the determination of soil conductivity.

Applications:

  1. Water-saving agricultural irrigation, weather monitoring
  2. Greenhouses, flowers and vegetables, grass pastures, soil testing
  3. Fields that need to measure soil moisture such as plant cultivation and scientific experiments

Features:

  1. Water-saving agricultural irrigation, weather monitoring
  2. Greenhouses, flowers and vegetables, grass pastures, soil testing
  3. Fields that need to measure soil moisture such as plant cultivation and scientific experiments

Package Includes:

1 x FirstRate FST100-2006C Soil Conductivity Sensor Material Graphite, Range: 0~10 mS/c (RS485)

SKU: R123397 Category:

Technical Specifications

Item TypeSensor
ModelSoil Sensor
Model NoFST100 2006C
Operating Temperature (°C)-40 to 80
Resolution10μS/cm
Response Time(s)<1
Shipping Dimensions21 × 10 × 6 cm
Shipping Weight0.175 kg
Signal OutputRS485
Voltage Rating (VDC)12 to 24
