Soil Moisture Sensors

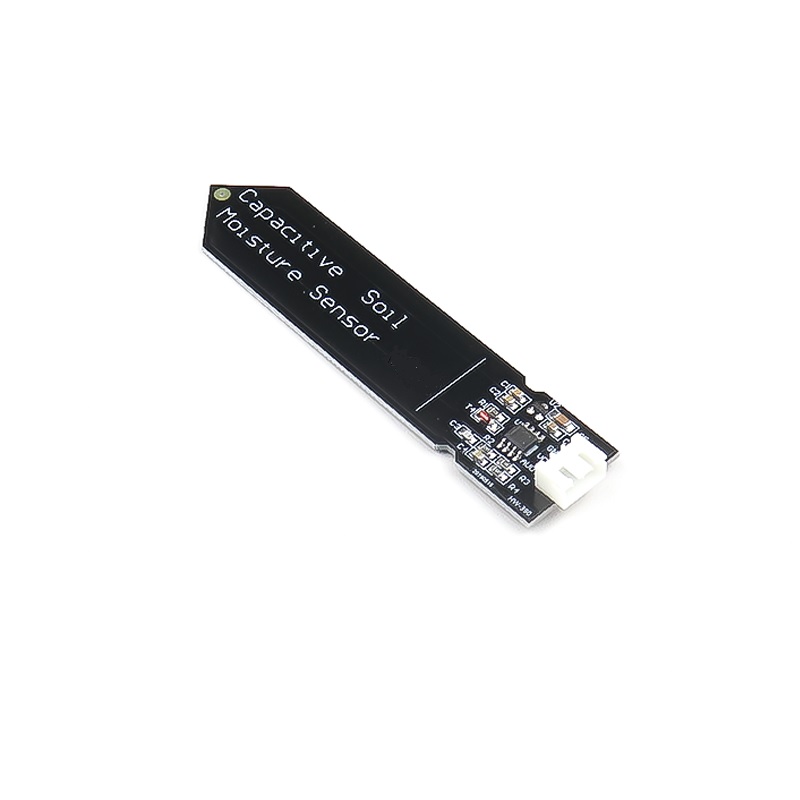

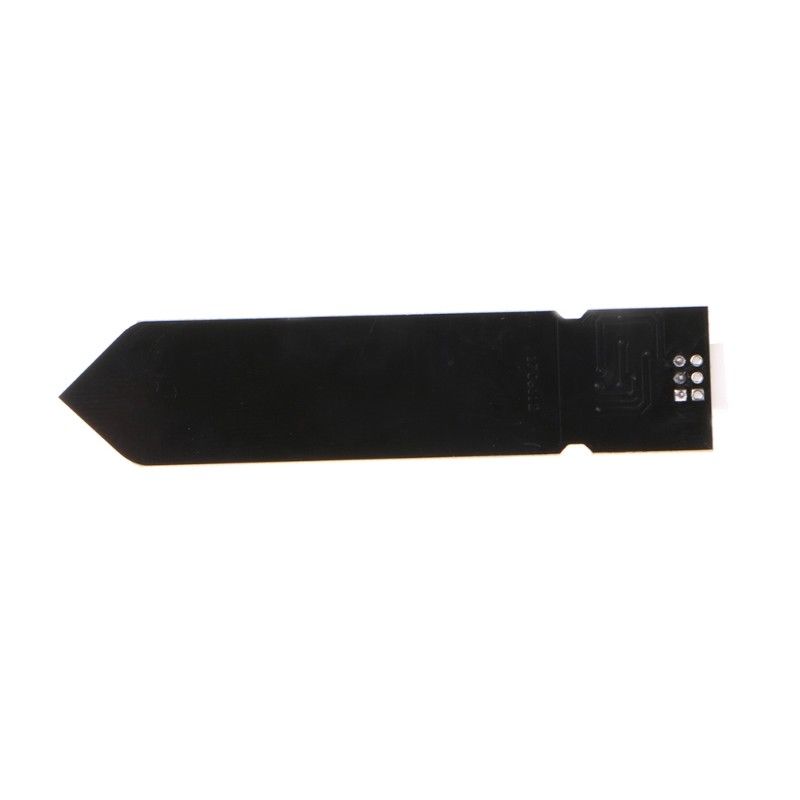

Capacitive Soil Moisture Sensor
- Operating Voltage: 3.3 ~ 5.5 VDC.
- Operating Current: 5mA.
- Interface: PH2.54-3P.
- Dimensions mm(LxWxH): 98 x 23 x 4.
- Supports 3-Pin Gravity Sensor interface
- Analog output.
- Weight (gm): 15.
SKU: Not Found
Brand: Generic
Out of stock
₹55.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description

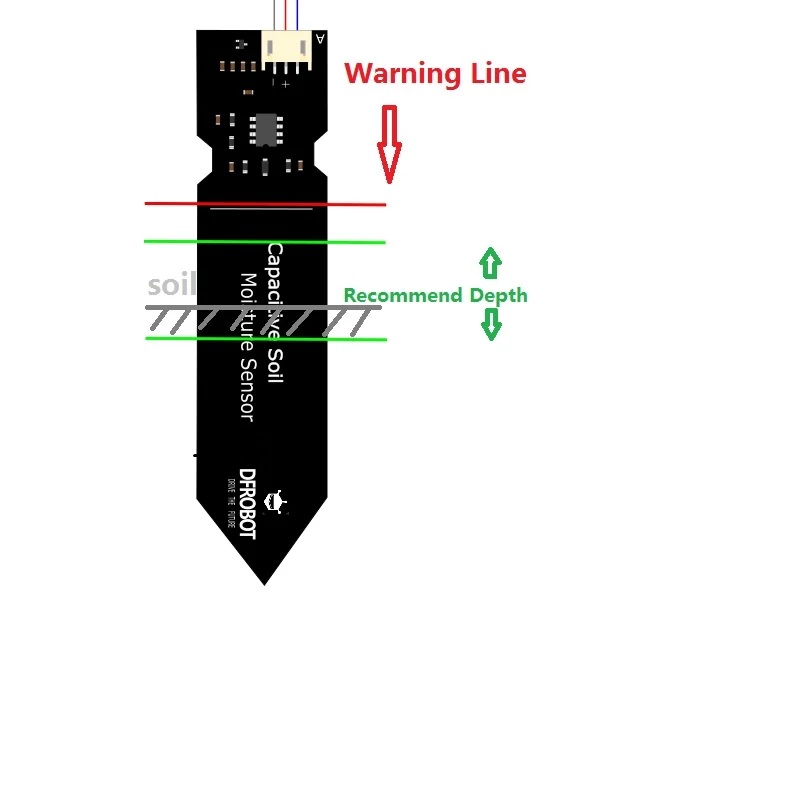

This Capacitive soil moisture sensor measures soil moisture levels by capacitive sensing rather than resistive sensing like other sensors on the market. It is made of corrosion-resistant material which gives it excellent service life. Insert it into the soil around your plants and impress your friends with real-time soil moisture data!
This module includes an onboard voltage regulator which gives it an operating voltage range of 3.3 ~ 5.5V. It is perfect for low-voltage MCUs, both 3.3V, and 5V. For compatibility with a Raspberry Pi, it will need an ADC converter.
This soil moisture sensor is compatible with our 3-pin “Gravity” interface, which we can connect to the Gravity I/O expansion shield.
Applications:
- Garden plants
- Moisture detection
- Intelligent agriculture

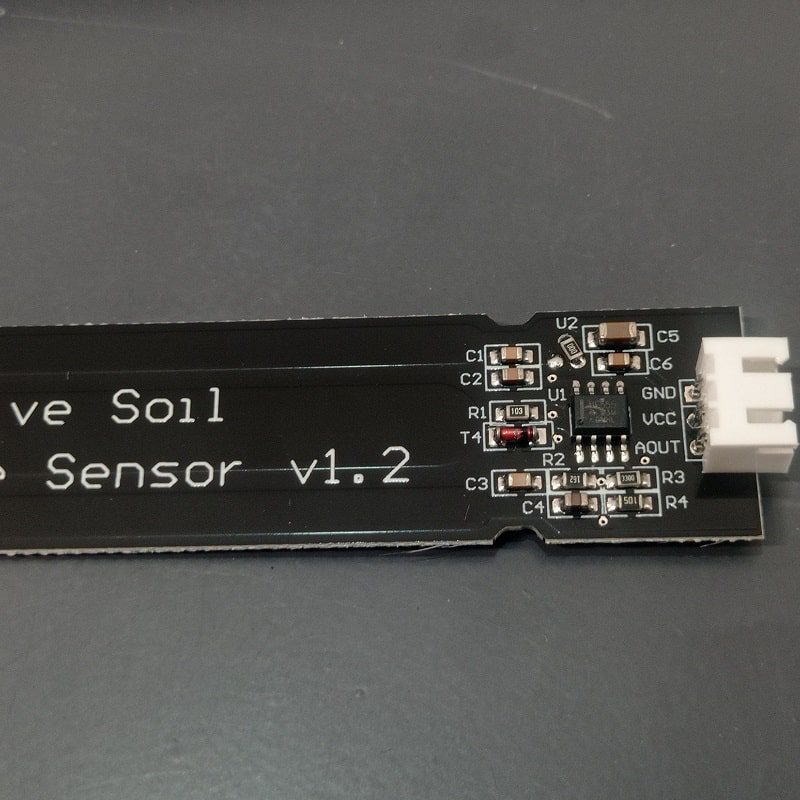

Note: This module is available in different versions. The V1.2 version sensor can work with only 5v while the V2.0 version sensor works with both 3.3V and 5V
Circuit Diagram of Moisture Sensor Compatible with Arduino and Display:
Software
- Arduino IDE V1.6.5 Click to Download Arduino IDE
To Explore More Moisture Sensors, Click here
Features:
- Supports 3-Pin Gravity Sensor interface
- Analog output
Package Includes:

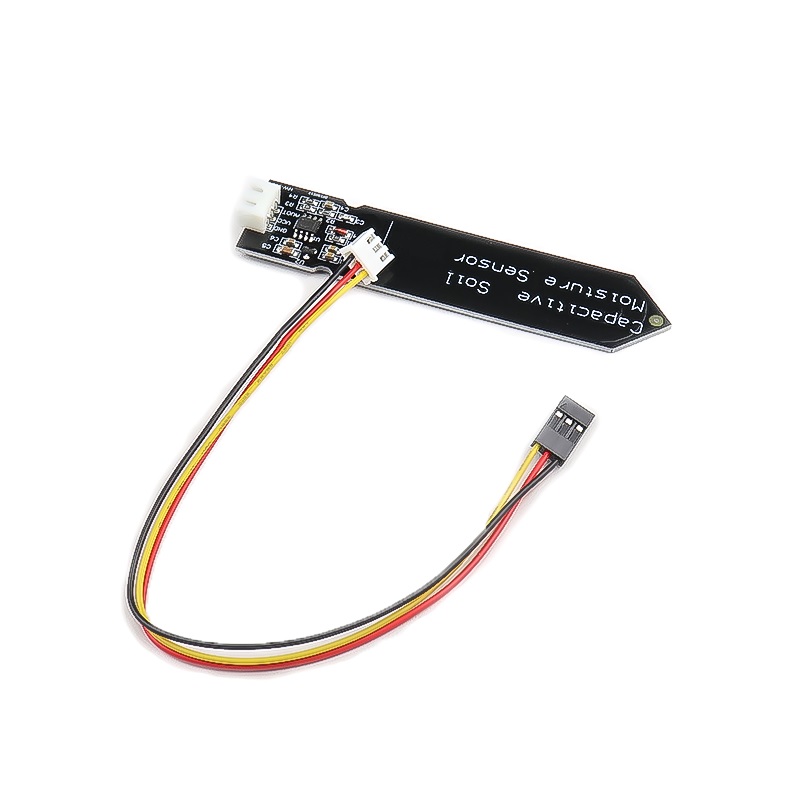

1 x Capacitive Soil Moisture Sensor
Technical Specifications

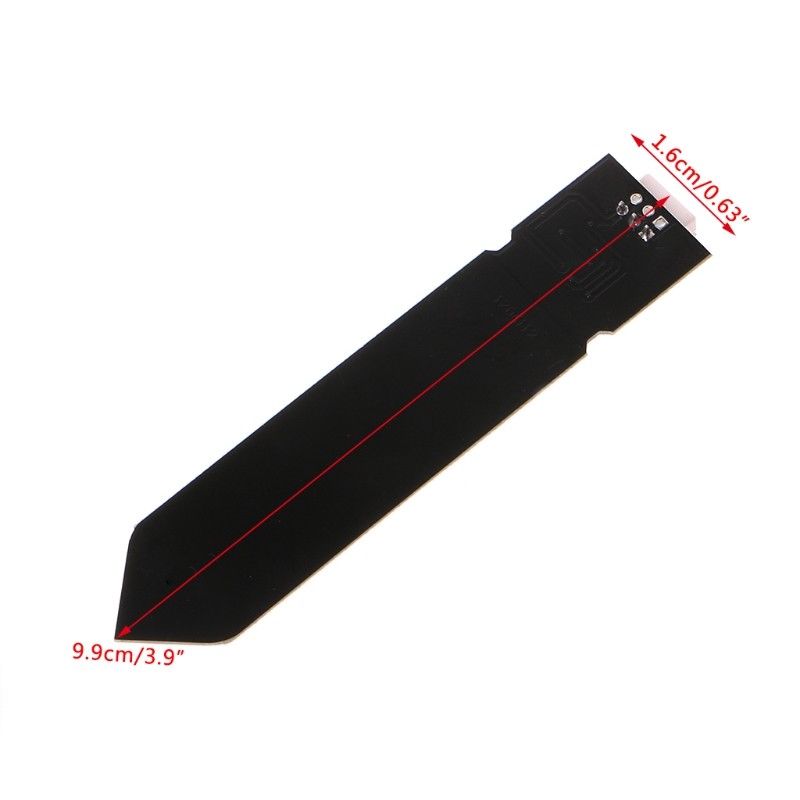

| Dimensions (L x W x H) mm | 98 x 23 x 4 |
|---|---|
| Interface | PH2.54-3P |
| Item Type | Sensor |
| Model | Soil Sensor |
| Operating Current (mA) | 5mA |
| Output Voltage (V) | 0 ~ 3.0VDC |
| Shipping Dimensions | 12 × 4 × 1 cm |
| Shipping Weight | 0.018 kg |
| Voltage Rating (VDC) | 3.3 to 5.5 |
| Weight (g) | 15 |
