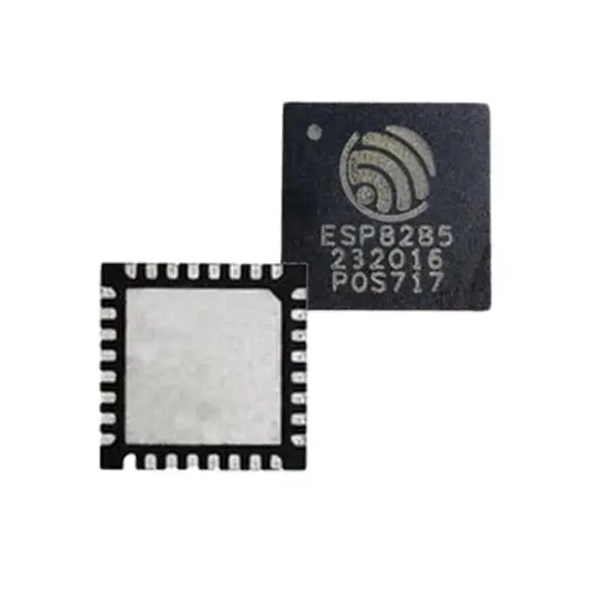

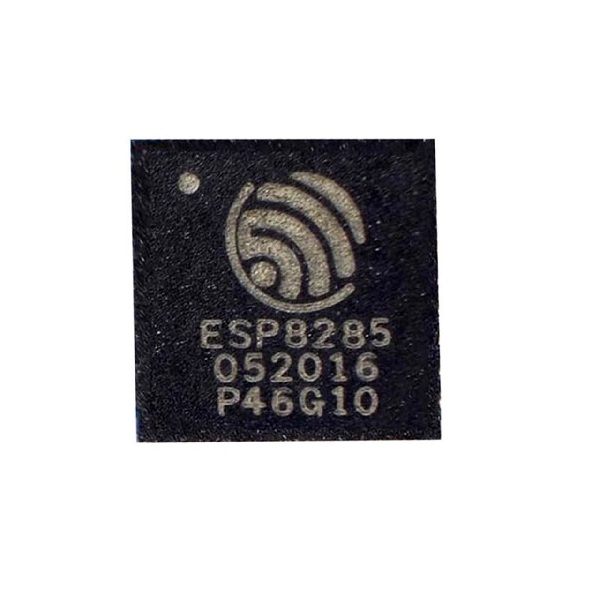

ESP8285 Single-core 32-bit MCU 2.4GHz Wi-Fi SoC 32-Pin QFN
- 802.11b/g/n Wi-Fi+BT SOC
- Dual-core 32-bit CPU, 240 MHz frequency
- Supports UART/SPI/I2C/SDIO/GPIO/ADC/PWM
SKU: Not Found
Brand: Generic
Out of stock
₹129.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 13 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
ESP8285 delivers highly integrated Wi-Fi SoC solutions to meet users’ continuous demands for efficient power usage, compact design and reliable performance in the Internet of Things industry. With the complete and self-contained Wi-Fi networking capabilities, ESP8285 can perform either as a standalone application or as the slave to a host MCU. When ESP8285 hosts the application, it promptly boots up from the flash. The integrated high-speed cache helps to increase system performance and optimize system memory. Also, ESP8285 can be applied to any microcontroller design as a Wi-Fi adaptor through SPI/SDIO or UART interfaces.
Pin Diagram
Features:
Package Includes:
1 x ESP8285 QFN32 IC Chip
Technical Specifications
| Case/Package | QFN 32 |
|---|---|
| Core | L106, RSIC |
| Data Bus Width | 32bit |
| Data RAM size and Type | SRAM |
| Data Rate | 54 Mb/s Max |
| Frequency Rating | 2.4GHz |
| Interface Type | ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART |
| Length (mm) | 5 mm |
| Manufacturer | Espressif |
| Maximum Clock Frequency | 160 MHz |
| Model Series | ESP8285 |
| Mounting Style | SMD/SMT |
| Net Weight | 70.100 mg |
| Operating Frequency(GHz) | 2.4 to 2.5GHz |
| Operating Supply Voltage(V) | 2.7 V to 3.6 V |
| Operating Temperature (°C) | -40 C to 125 C |
| Output Power | 20 dBm |
| Product Type | RF System on a Chip – SoC |
| Program Memory (KB) | 1 MB |
| Program Memory Type | FLASH |
| Sensitivity (dBm) | – 72 dBm |
| Shipping Dimensions | 1 × 1 × 1 cm |
| Shipping Weight | 0.001 kg |
| Subcategory | Wireless & RF Integrated Circuits |
| Width (mm) | 5 mm |
