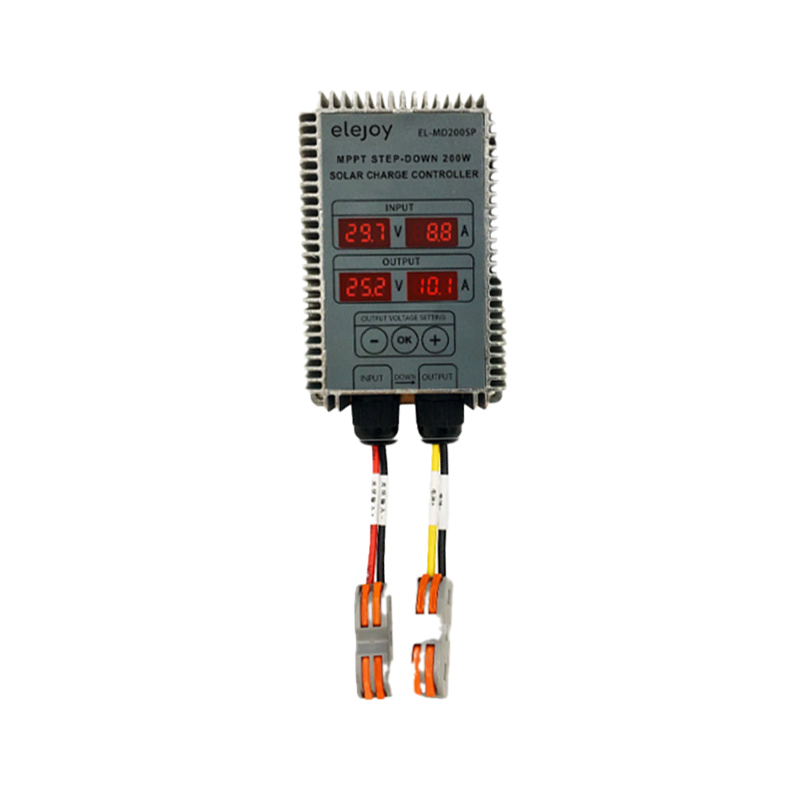

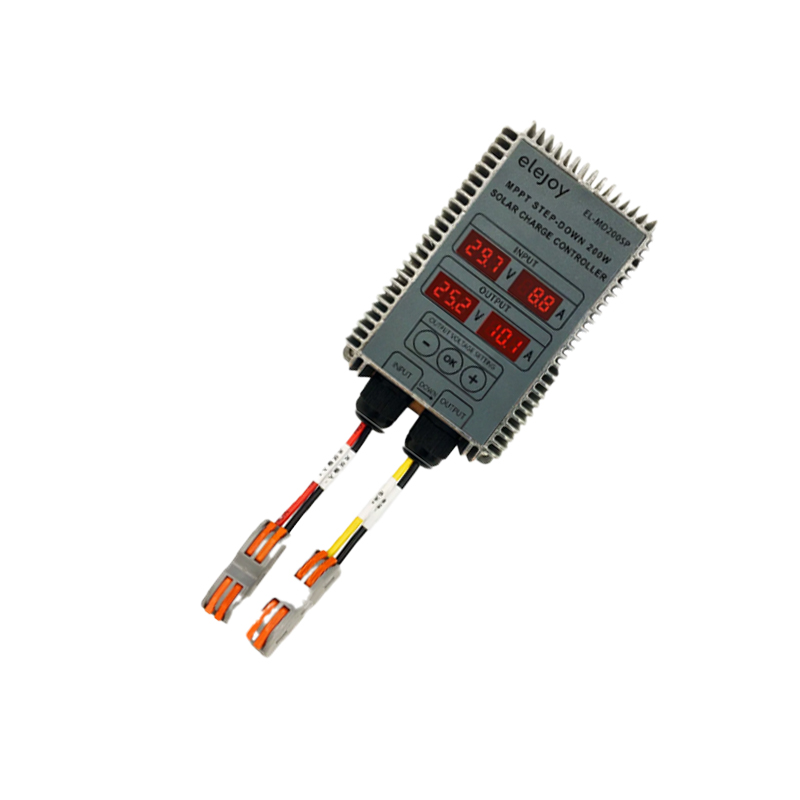

Elejoy MPPT Step-Down Solar Charge Controller EL-MD200SP 200W
- 200W MPPT solar charge controller
- Auto 12V/24V battery detection
- Up to 30% higher efficiency
- Overload & short-circuit protection
- Compact design for mobile use
- Ideal for RV, boat, or off-grid use
SKU: Not Found
Brand: Elejoy
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The EL-MD200SP is a high-efficiency MPPT step-down solar charge controller, designed for reliable solar energy management up to 200W. Utilizing advanced MPPT (Maximum Power Point Tracking) technology, it maximizes solar panel output and ensures safe, efficient battery charging. Its intelligent circuitry adapts to various battery types, providing overcharge, overload, and short-circuit protection. The EL-MD200SP supports 12V/24V auto-detection, ensuring compatibility with off-grid solar systems. Its compact, durable design makes it ideal for RVs, boats, and small solar installations, offering performance, reliability, and peace of mind in any solar power setup.
Features:
- MPPT Technology: Increases efficiency by up to 30% over PWM controllers.
- Wide Compatibility: Auto-detects 12V/24V systems.
- 200W Capacity: Ideal for small to medium solar setups.
- Battery Protection: Guards against overcharging and discharging.
- Compact & Durable: Built for rugged off-grid environments.
- Easy Installation: Simple wiring with LED indicators.
Package Includes:
1 x MPPT Step-Down Solar Charge Controller EL-MD200SP 200W
Technical Specifications
| Frequency (Hz) | 50-60 |
|---|---|
| Height (mm) | 42 |
| Input Voltage (V) | 17-55 |
| Item Type | Step-Down Solar Charge Controller |
| Length (mm) | 110 |
| Model No | EL-MD200SP |
| Operating Temperature (°C) | -35°C to +65°C |
| Output Current (A) | 25 |
| Output Power (W) | 200 |
| Protection level | IP65 |
| Shipping Dimensions | 15 × 8 × 4 cm |
| Shipping Weight | 0.477 kg |
| Startup Voltage(V) | 18 |
| Weight (g) | 456 |
| Width (mm) | 75 |
