Solar Panels and Controllers

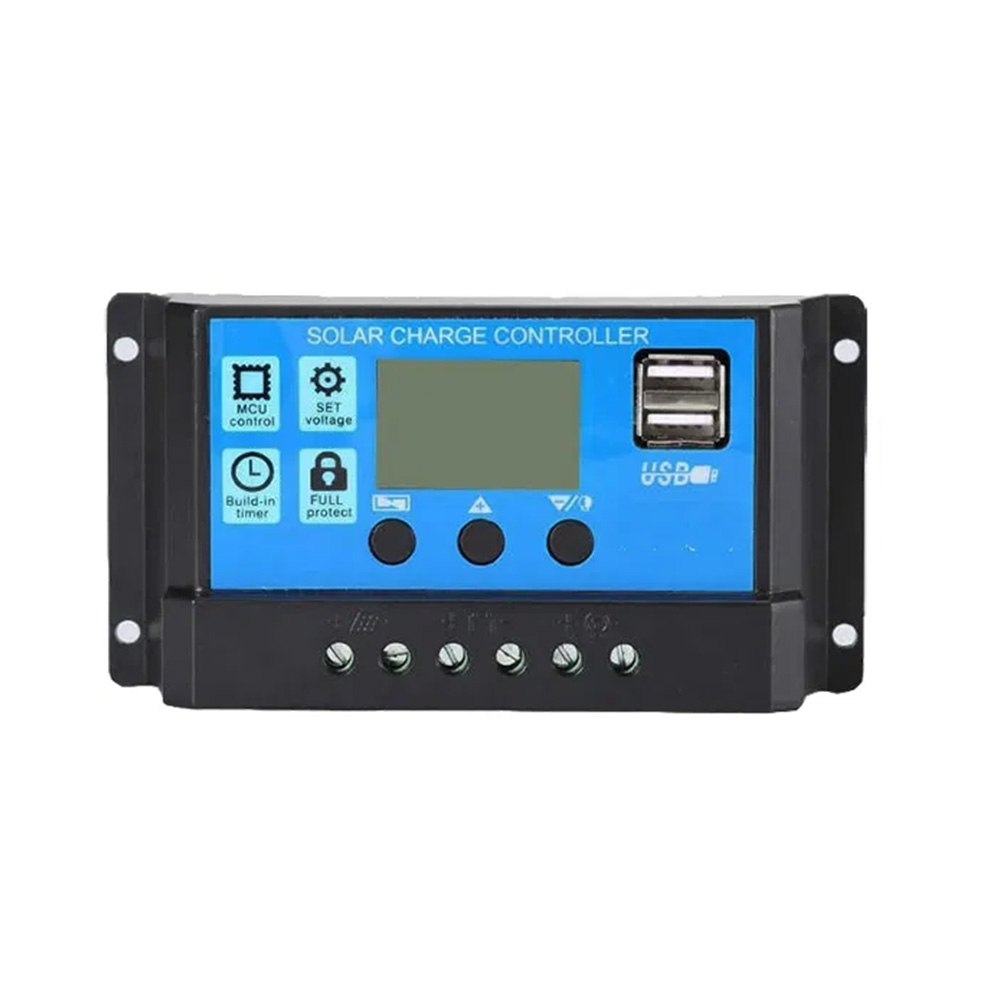

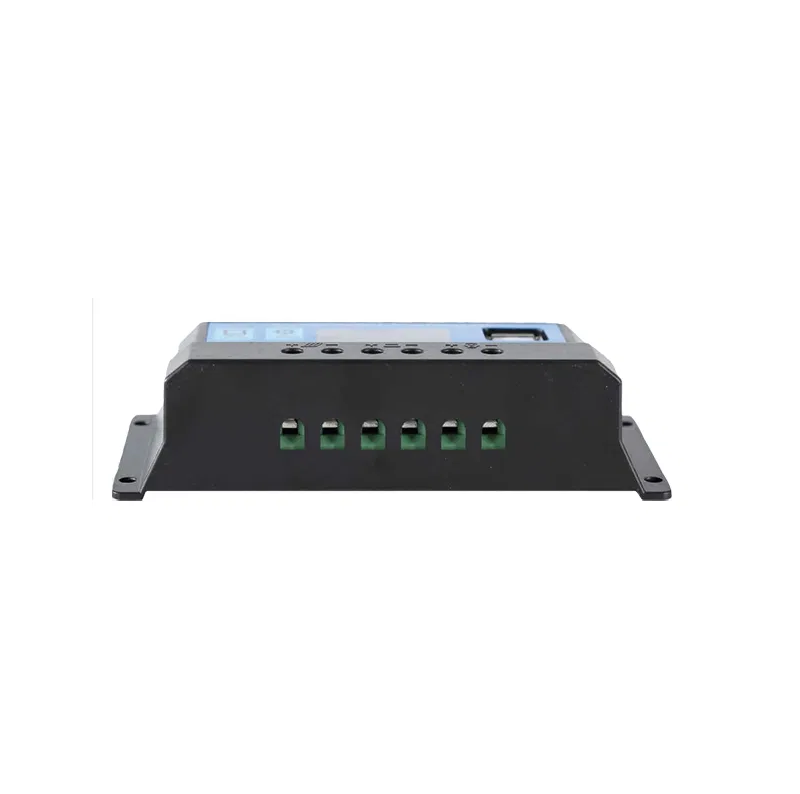

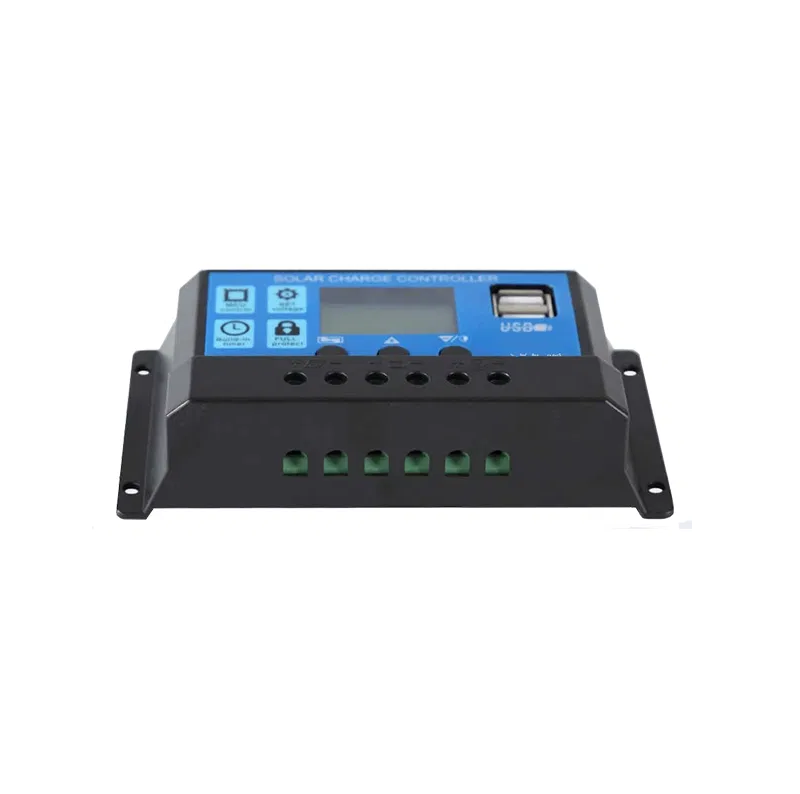

20A Intelligent LCD Solar Controller with USB Output Port
- Built-in Industrial Micro-Controller
- Big LCD Display
- All Adjustable Parameters
- Full 4 Stage PWM Charge Management
SKU: Not Found
Brand: Generic
Out of stock
₹423.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
20A Intelligent LCD Solar Controller with USB Output Port is a Digital PWM Solar Charge Controller for the lead-acid batteries connected to a solar power system. When connected to the battery, this charge controller automatically detects the battery voltage from 12V-24V. This charge controller has some advanced features like built-in short circuit protection, open-circuit protection, reverse voltage protection, overload protection, etc which makes it ideal for grid power systems.
Features:
- Built-In Industrial Micro Controller
- Big LCD Display
- Full 4 Stage PWM Charge Management
- Dual MOSFET Reverse Current Protection
- Low Heat Production
Package Includes:
1 x 20A Intelligent LCD Solar Controller
Technical Specifications
| Battery Input | 12-24V Auto |
|---|---|
| Charging Current (A) | 20 |
| Height (mm) | 35 |
| Item Type | Solar Controller |
| Length (mm) | 150 |
| Operating Temperature (°C) | -35 to 60 |
| Shipping Dimensions | 15 × 8 × 4 cm |
| Shipping Weight | 0.17 kg |
| Solar input voltage | <50V |
| USB | 3A@5V |
| Weight (g) | 150 |
| Width (mm) | 78 |
