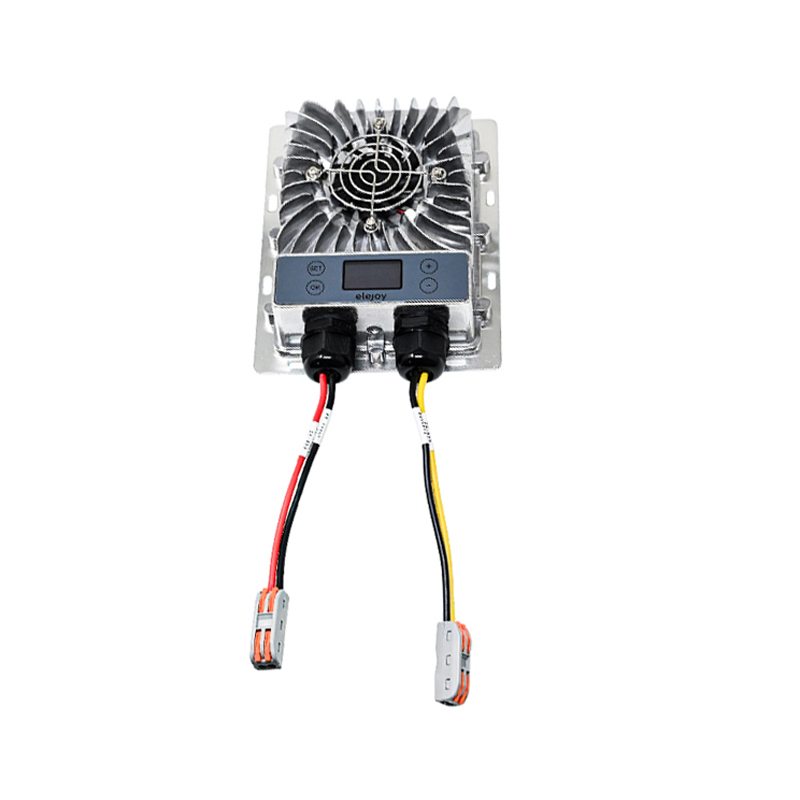

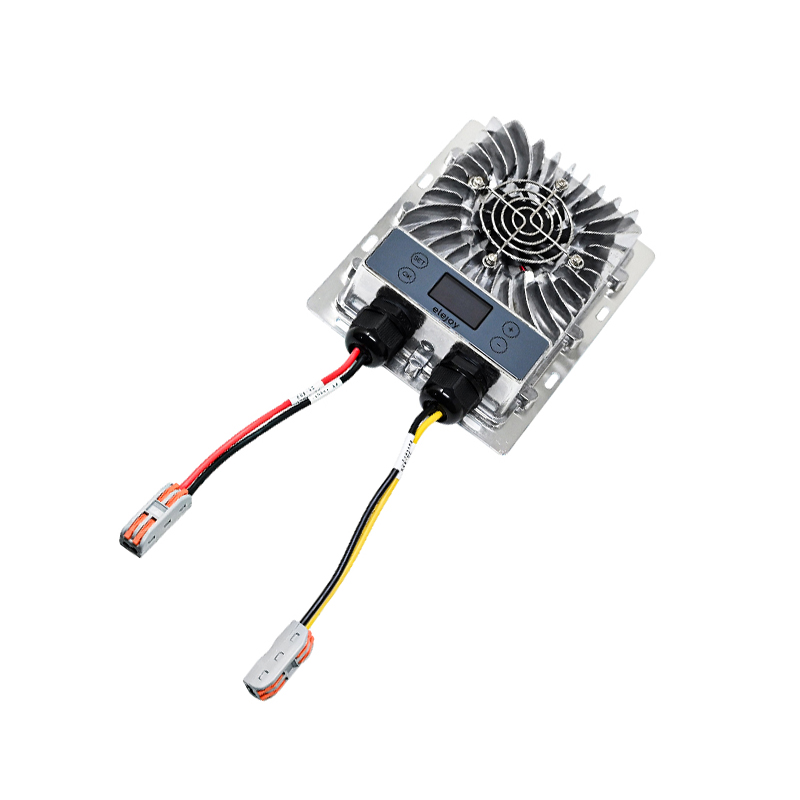

Elejoy MPPT Buck-Boost Solar Charge Controller EMX20A 20V-85V 20A
- MPPT Buck-Boost Solar Charge Controller
- Input Voltage: 20V–85V
- Output Current: Up to 20A
- Compatible with Li-ion, AGM, Gel, Lead-acid
- Overload, short-circuit, and reverse polarity protection
- Ideal for RV, off-grid, and solar systems
SKU: Not Found
Brand: Elejoy
Out of stock
₹9273.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The EMX20A MPPT Buck-Boost Solar Charge Controller is a high-efficiency, intelligent charge controller designed for solar power systems ranging from 20V to 85V input and up to 20A output. With advanced Maximum Power Point Tracking (MPPT) technology, it optimizes solar charging in varying light conditions while supporting both buck (step-down) and boost (step-up) operation. Its rugged design ensures stability and performance in off-grid, RV, and solar home applications. This controller enhances battery life, protects from overcharging, and supports a wide variety of battery types including Li-ion, AGM, and Gel.
Features:
- MPPT Technology for efficient solar charging
- Wide input voltage range (20V-85V)
- Buck-Boost capability supports multiple battery voltages
- Supports Li-ion, Gel, AGM, and Lead-acid batteries
- Intelligent protections: overcharge, over-discharge, short-circuit
- LCD display with real-time status and performance tracking
Package Includes:
1 x MPPT Buck-Boost Solar Charge Controller EMX20A 20V-85V 20A
Technical Specifications
| Frequency (Hz) | 50-60 |
|---|---|
| Input Current (A) | 20 |
| Input Voltage (V) | 20-85 |
| Item Type | Buck-Boost Solar Charge Controller |
| Max. Output Voltage | 20V-85V |
| Model No | EMX20A |
| Operating Temperature (°C) | -30°C to +60°C |
| Output Current (A) | 20 |
| Output Power (W) | 400 |
| Protection level | IP65 |
| Shipping Dimensions | 53 × 30 × 10 cm |
| Shipping Weight | 0.8 kg |
