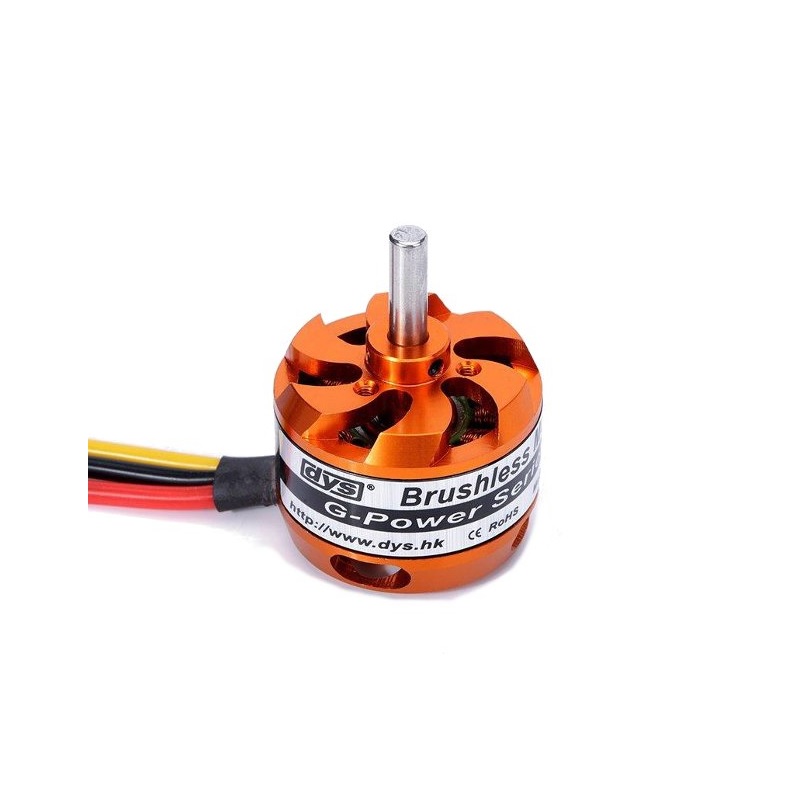

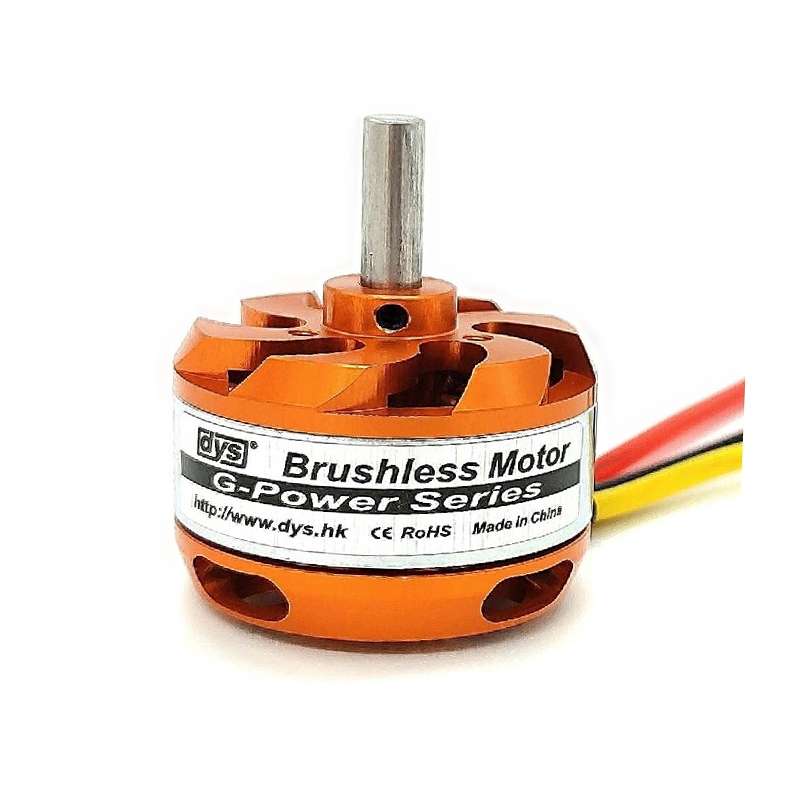

Dys D3530-14 1100KV Bldc Motor
- Model: DYS D3530-14
- Voltage: 7.4v~15V / 2~3s Lipo
- Kv: 1100 rpm/v
- Shaft Diameter: 5mm
- Max Watts: 313W
- ESC: 50A
SKU: Not Found
Brand: Dys
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
This DYS D3530-14 1100KV brushless outrunner motor specifically made to power Quadcopters and Multirotors. It is a 1100kV motor. It provides high performance, superpower, and brilliant efficiency. These motors are perfect for medium size quadcopters with 7 propellers.
The motor comes with 3mm banana male connector attached which can be directly connected with 50A ESC without any soldering requirement
With a 3S LiPo battery, 50A ESC, and high efficiency 10″ propellers, these motors provide up to 313gms of thrust each. Using 4 of these motors on a quadcopter with orange propellers will give you a total of 3.84 kg thrust Use this to build powerful and efficient quadcopters.
This is a low price and excellent quality Brushless Motor. It comes with Bullet Connectors already soldered.
Applications:
- Drones
- Quad-copters
- Multi-rotors
- RC Airplanes
- UAV
Features:
- The steel design is capable of withstanding competitive conditions.
- Lightweight design makes them suitable for a wide range of Quadcopter and Hexacopter Frames.
- Compact size.
- Offers great performance and value for money.
- Smooth throttle response for best RC experience.
Package Includes:
1 x DYS D3530-14 1100KV BLDC Motor
Technical Specifications
| Brushless ESC(A) | 50A |
|---|---|
| Max. Power (W) | 313W |
| Model Name | DYS D3530-14 1100KV |
| Motor KV (RPM/V) | 1100 |
| Motor Size (mm) | 35 x 30mm |
| Motor Weight (g) | 74g |
| Rated Voltage (Lipo) | 7.2v~15V / 2~3s Lipo |
| Shaft Diameter (mm) | 3mm |
| Shaft Length (mm) | 10mm |
| Shipping Dimensions | 8 × 5 × 4 cm |
| Shipping Weight | 0.105 kg |
