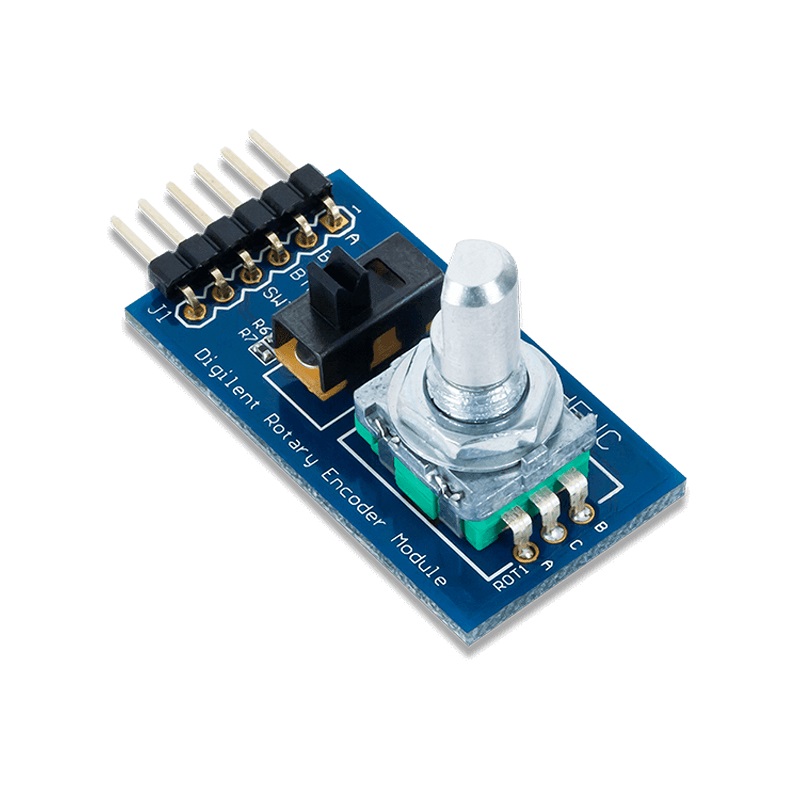

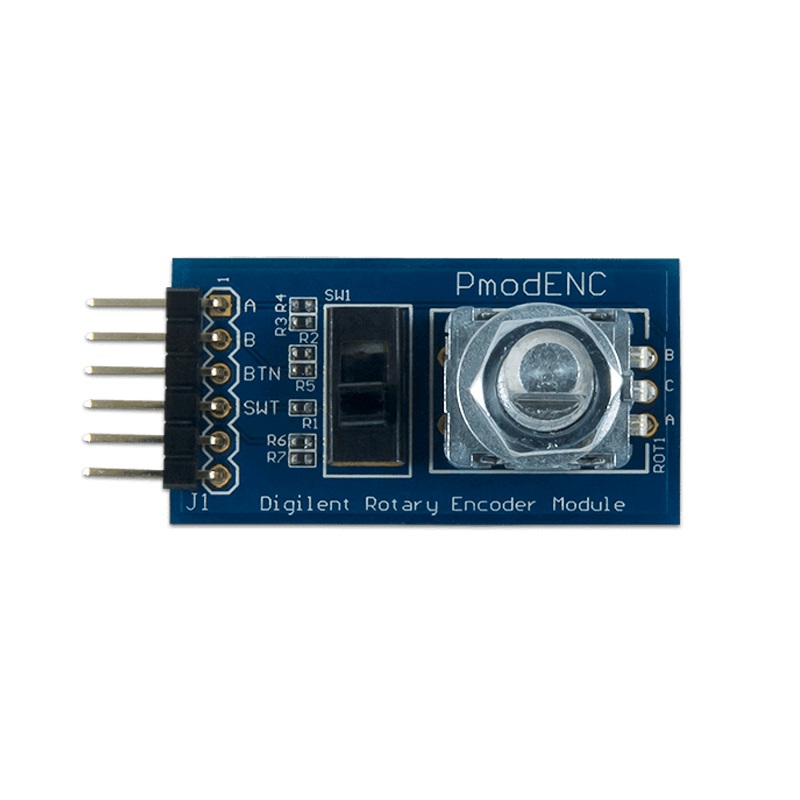

The Pmod ENC features a rotary-shaft encoder with an integral push-button to provide multiple types of outputs, such as a way for users to quickly switch between multiple choices shown on a screen or predefined motor speeds. The module also includes a sliding switch that is commonly used as an on/off output. An encoder is commonly used in freely rotating volume knobs to detect how many “clicks” a knob has been rotated.

Features:

1. Rotary push-button shaft encoder
2. Adds multiple types of user input to host board or project
3. Additional static slide switch
4. Small PCB size for flexible designs 1.5 in × 0.8 in (3.8 cm × 2.0 cm)
5. 6-pin Pmod connector with GPIO interface
6. Follows Digilent Pmod Interface Specification Type 1
7. Library and example code available in resource center

Package Includes:

1 x Digilent Pmod ENC: Rotary Encoder
