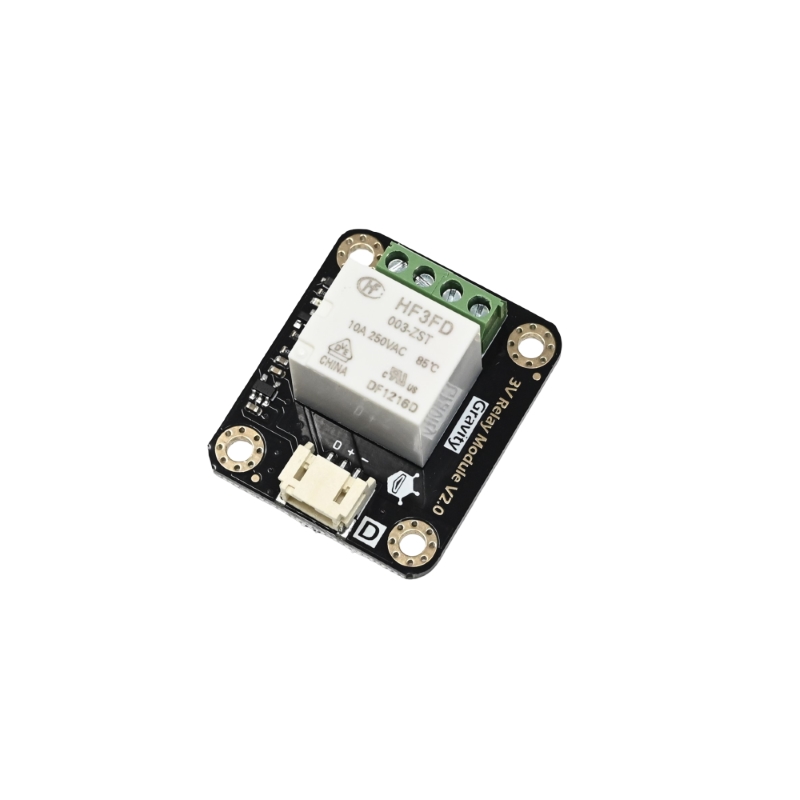

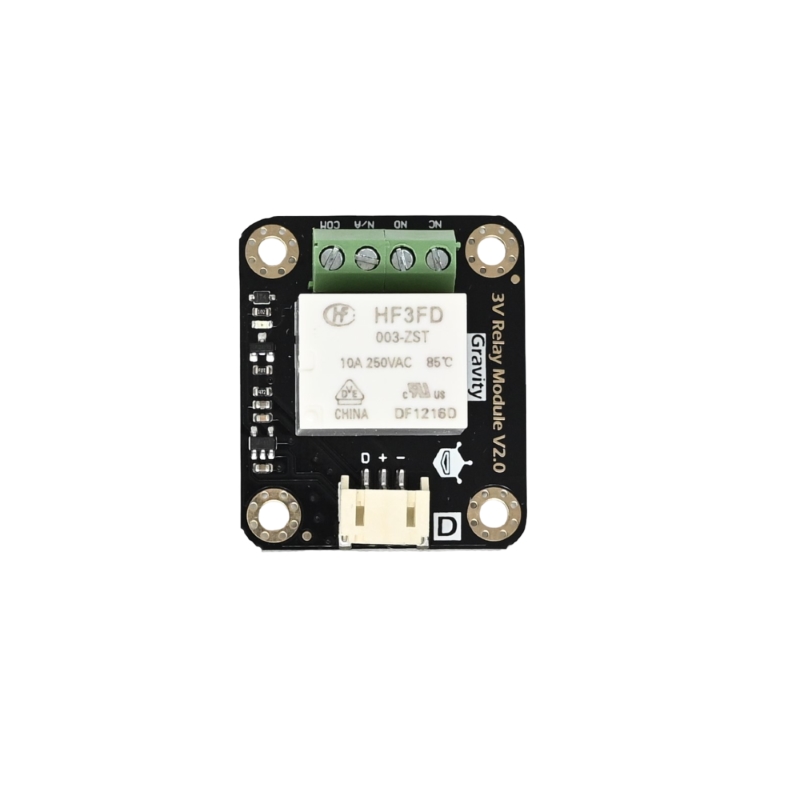

DFRobot Gravity: Digital 10A Relay Module
- Voltage Range: Operates from 2.8V to 5.5V.
- Current Handling: Supports up to 10A.
- Durability: 1 million mechanical uses; 50,000 electrical uses.
- LED Indicator: Shows relay status.
- Easy Setup: Plug-and-play with Gravity-3 pin interface.
- Safe Design: Isolated for safety.
- Wide Compatibility: Works with Arduino, Raspberry Pi, and other 3.3V devices.
SKU: Not Found
Brand: DFRobot
Out of stock
₹491.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The Gravity: Digital 10A Relay Module is a versatile and high-performance relay solution designed for a wide range of applications. It is compatible with various platforms, including Arduino, Raspberry Pi, BeagleBoard Black, and other 3.3V devices, making it an excellent choice for both low-voltage and standard projects.
Features:
- Wide Voltage Compatibility: Operates with input voltages from 2.8V to 5.5V, suitable for various devices.
- High Current Capacity: Handles up to 10A with a maximum switching power of 300W.
- Durable Design: Mechanical life of 1 million uses; electrical life of 50,000 uses.
- Indicator LED: Built-in LED for easy monitoring of relay status.
- Easy Installation: Gravity-3 pin interface for hassle-free, plug-and-play connections.
- Safety Isolated: The board is isolated with an acrylic plate for added safety.

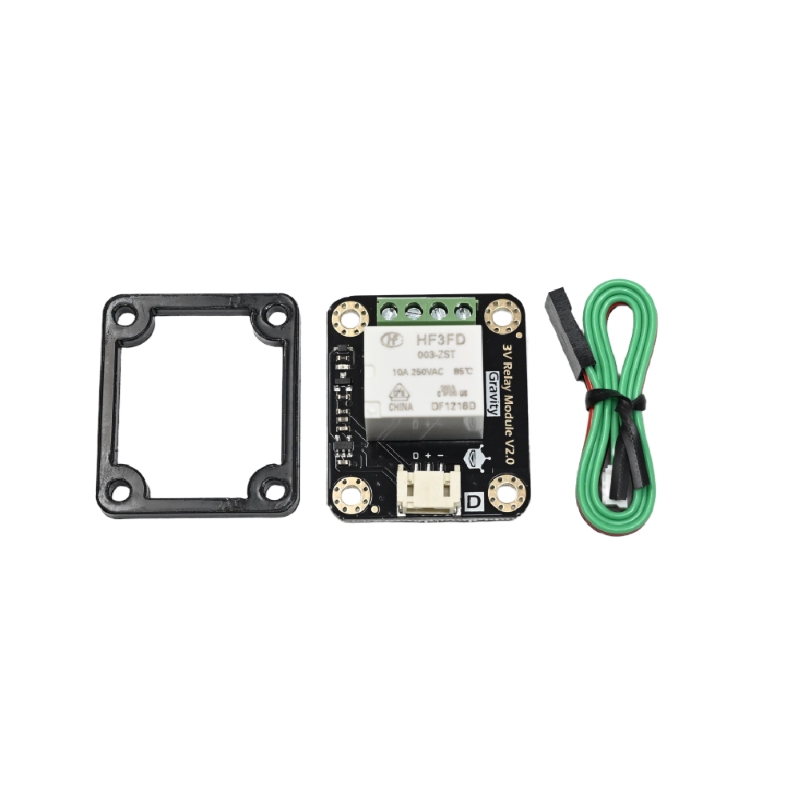

Package include:
1 x DFRobot Gravity: Digital 10A Relay Module
Technical Specifications
| Item Type | Relay Module |
|---|---|
| Max. Switching Current(A) | 10 |
| Max. Switching Voltage | 35VAC; 30VDC |
| Release time | ≤5ms |
| Shipping Dimensions | 7 × 6 × 3 cm |
| Shipping Weight | 0.025 kg |
| Supply Voltage | 2.8V ~ 5.5V |
