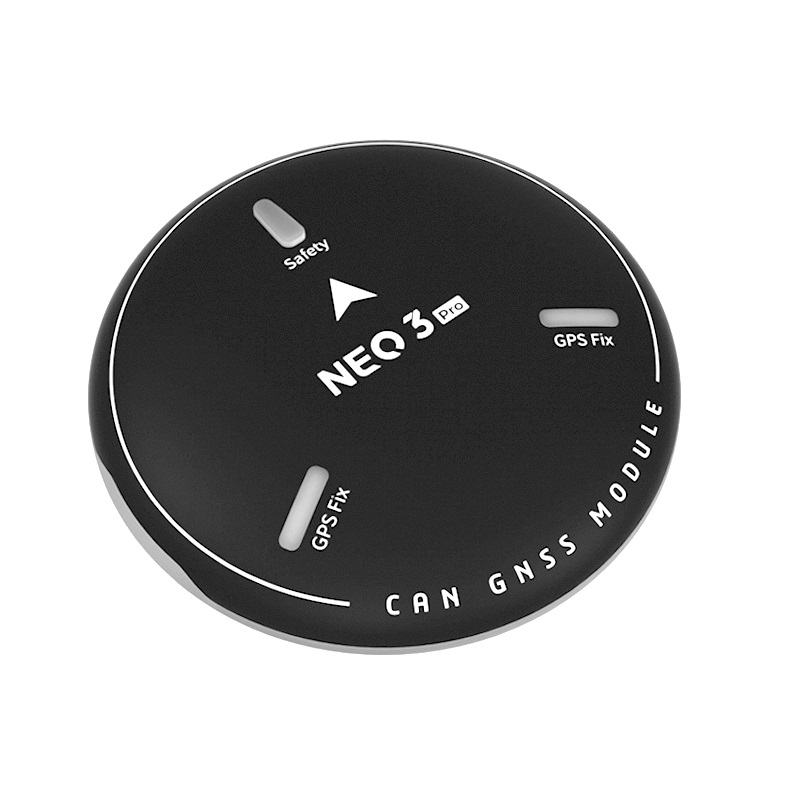

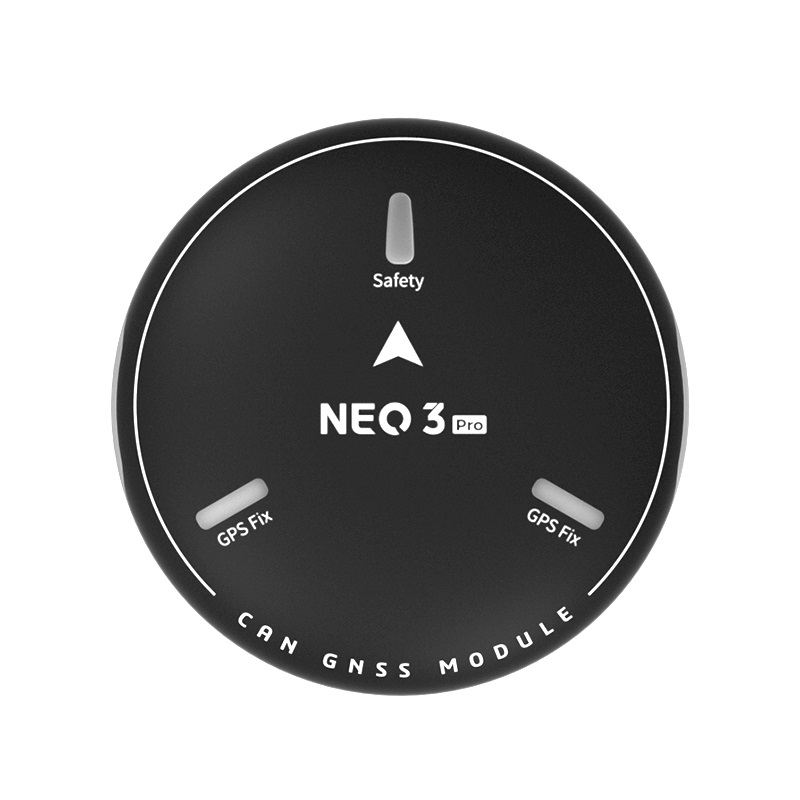

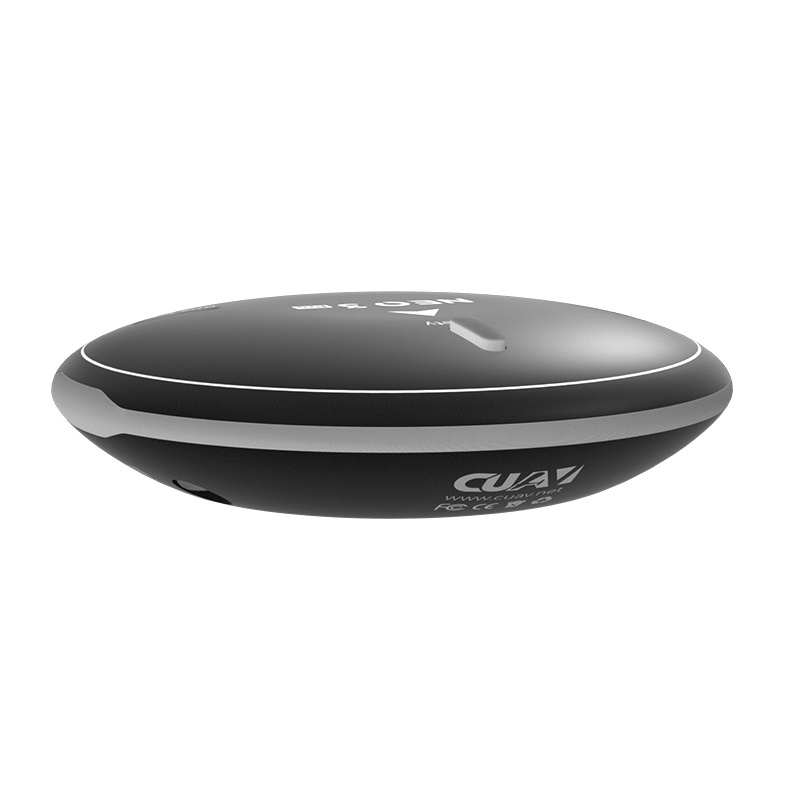

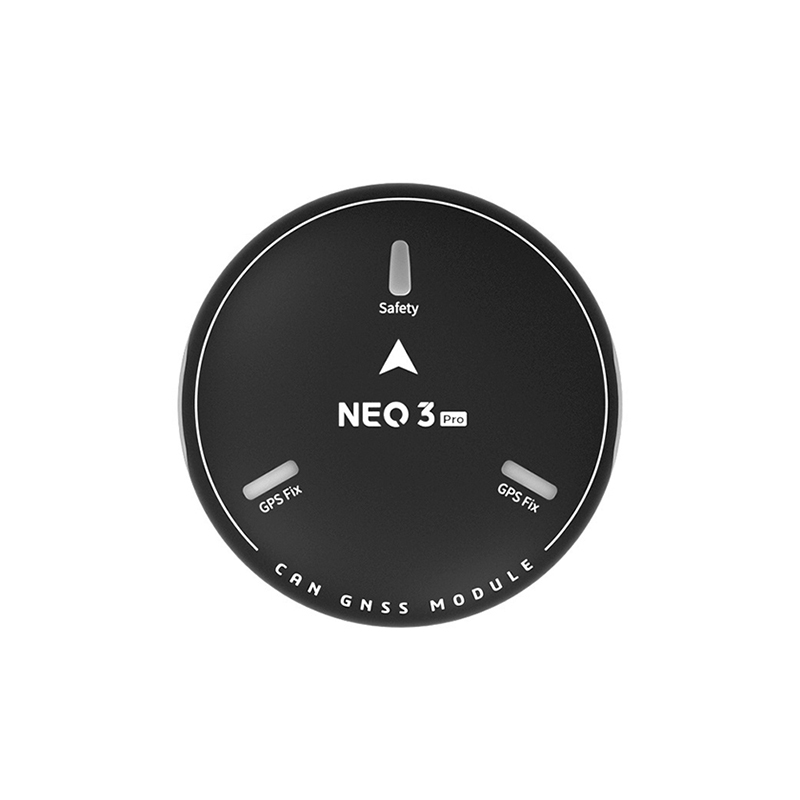

CUAV NEO 3 Pro GPS Module | GNSS U-BLOX M9N CAN BUS
- Name: NEO 3 PRo GPS
- V5+ version/X7 Pro/Nora
- Industrial-Grade Electronic Compass
- RGB Surround Light
- Buzzer Prompt
- Safety Switch
- Barometer
- CAN BUS
SKU: Not Found
Brand: CUAV
Out of stock
₹17308.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
CUAV NEO 3 Pro GPS Module | GNSS U-BLOX M9N CAN BUS is a new product from CUAV brand. NEO 3 Pro continues the hardware design of NEO V2, upgrade the GNSS module to Ublox NEO M9N, supports Beidou, Galileo, Glonas and GPS receive the same time, and the horizontal positioning accurcy is up to 0.7m. Integrated with safety swith, buzzer, RGB light.

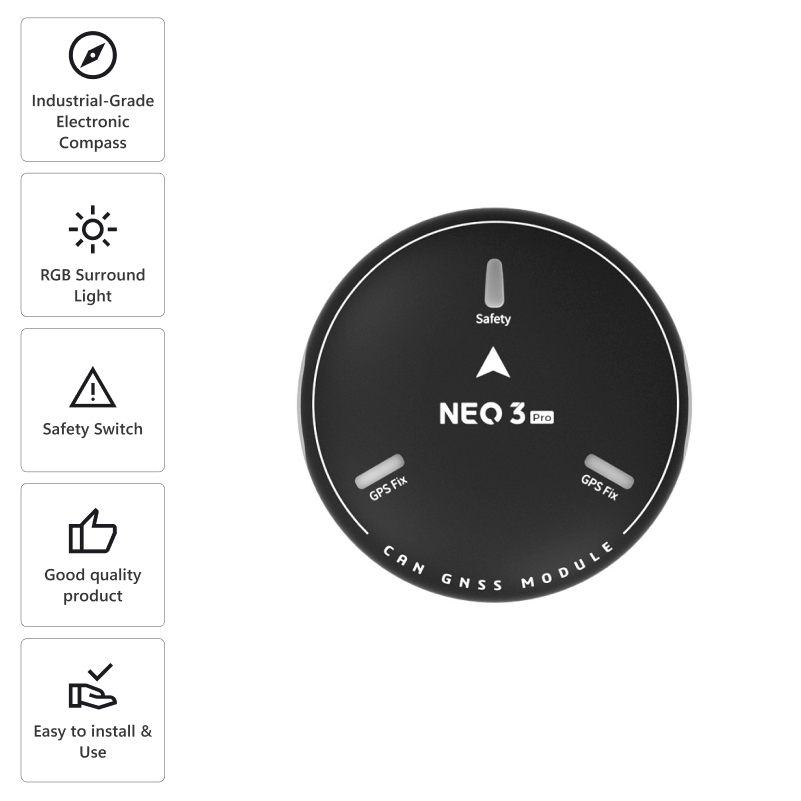

Features:
- Easy to use
- Industrial-Grade Electronic Compass
- RGB Surround Light
- Buzzer Prompt
- Safety Switch
- Barometer
- CAN BUS
- Easy to install
- Good quality product
Comparison between NEO v2 Pro & NEO 3 Pro:
Package Includes:
1 x CUAV NEO 3 Pro GPS Module | GNSS U-BLOX M9N CAN BUS

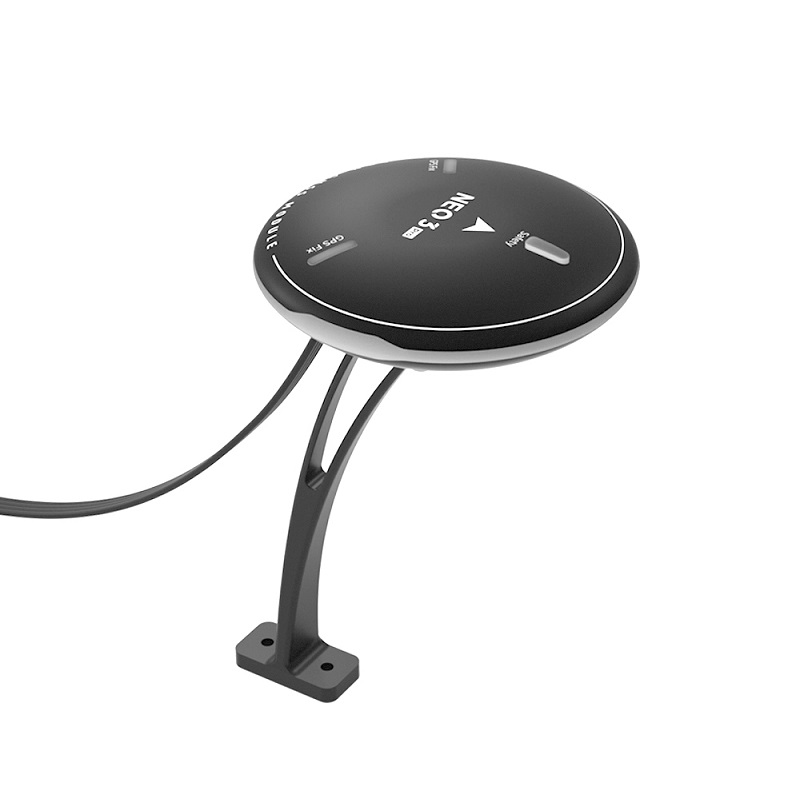

1 x stand and cable

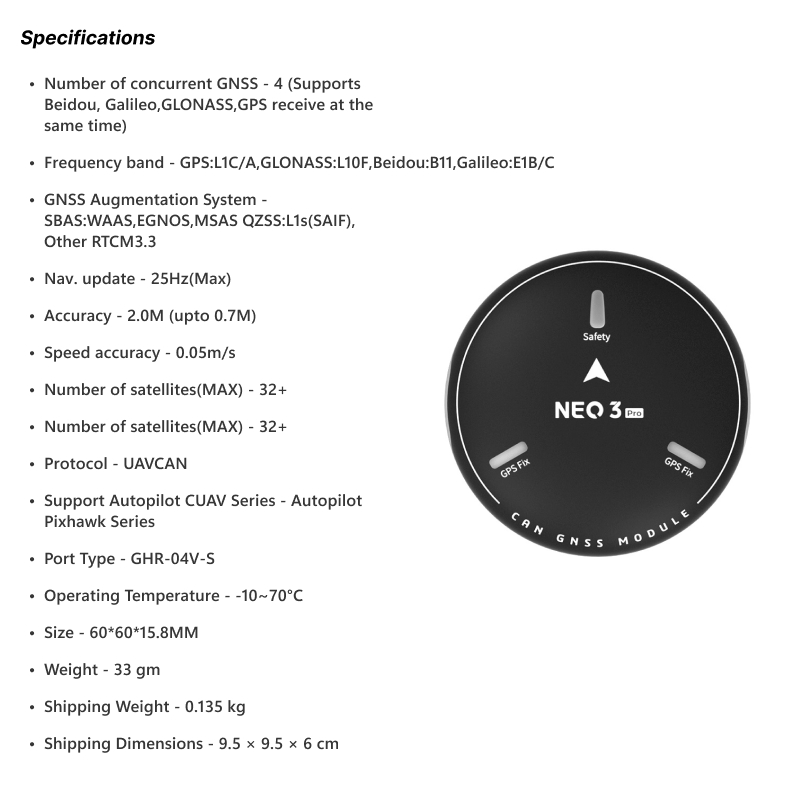

Technical Specifications
| Accuracy | 2.0M (Upto 0.7M) |
|---|---|
| GNSS Augmentation System | SBAS:WAAS,EGNOS,MSAS QZSS:L1s(SAIF), Other RTCM3.3 |
| Input Voltage (V) | 4.7 to 5.2 |
| Item Type | GPS Module |
| Nav. update | 25Hz(Max) |
| Net Weight | 33g |
| No. of Concurrent GNSS | 4 (Supports Beidou, Galileo,GLONASS,GPS receive at the same time) |
| No. of Satellites (Max) | 32+ |
| Operating Temperature (°C) | -10~70°C |
| Port Type | GHR-04V-S |
| Protocol | UAVCAN |
| Shipping Dimensions | 9.5 × 9.5 × 6 cm |
| Shipping Weight | 0.135 kg |
| Size | 60*60*15.8MM |
| Speed accuracy | 0.05m/s |
