Buffers & Transceivers IC
CH340N USB to Serial Bridge IC 12MHz Inbuilt Crystal SOP8 150mil ( 8 PIN )
- Model: CH340N
- Supply Voltage: 5 and 3.3V
- Band Rate: 50bps to 2Mbps
SKU: Not Found
Brand: Generic
Out of stock
₹89.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description

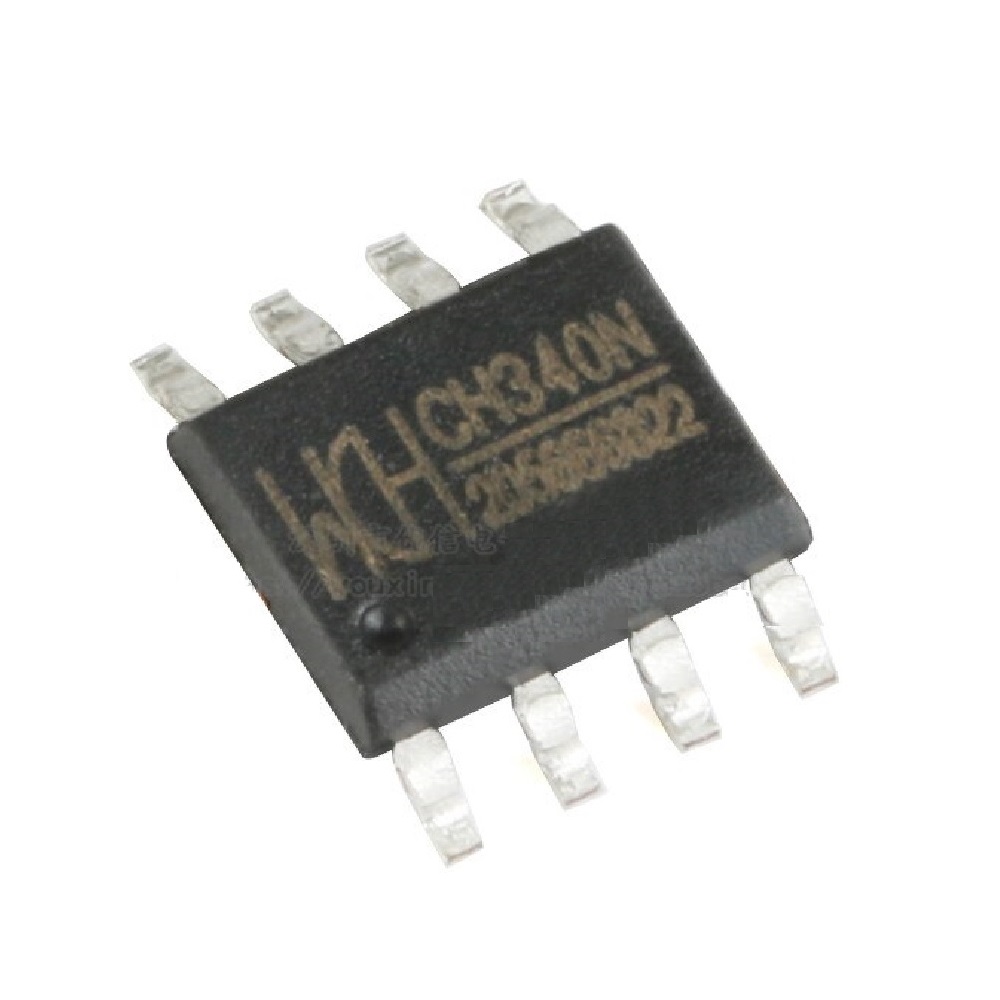

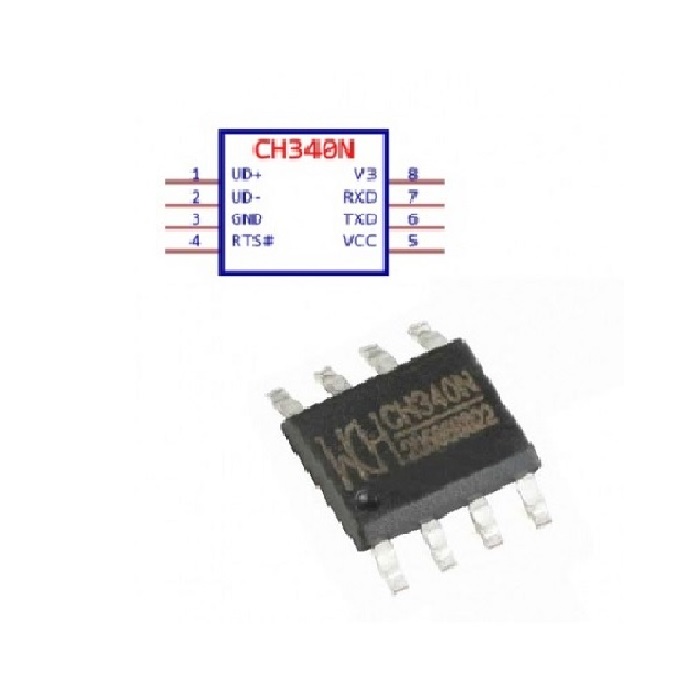

The CH340N is a USB to Serial Bridge IC with a built-in 12MHz crystal, encapsulated in an SOP8 150mil (8-PIN) package. It offers a compact and integrated solution for interfacing USB with serial communication, making it suitable for various applications.
Yet another member of the popular CH340 family of USB-to-serial converter chips. This particular variant CH340N is designed with an internal clock and a small SOP8 package saving a lot of PCB space for certain applications.
Features:
- Full-speed USB device interface, compatible with USB V2.0.
- Hardware full-duplex serial port, built-in transceiver buffer, support communication band rate 50bps~2Mbps.
- Support 5V supply voltage and 3.3V supply voltage and even 3V supply voltage.
- CH340N built-in clock, no external crystal oscillator required
Package Includes:
1 x CH340N USB to Serial Bridge IC 12MHz Inbuilt Crystal SOP8 150mil ( 8 PIN )
Technical Specifications
| Band Rate | 50bps~2Mbps |
|---|---|
| Compatibility | USB V2.0 |
| Frequency (MHz) | 12 |
| Model Name | CH340N |
| Shipping Dimensions | 1 × 1 × 1 cm |
| Shipping Weight | 0.001 kg |
| Supply Voltage (V) | 5 and 3.3 |
