The SN65HVD230DR is intended for use in applications employing the CAN serial communication physical layer in accordance with the ISO 11898 standard. Each CAN transceiver is designed to provide differential transmit capability to the bus and differential receive capability to a CAN controller at speeds up to 1Mbps. Designed for operation in especially harsh environments, this devices feature cross wire protection, loss of ground and over voltage protection, over temperature protection, as well as wide common mode range. The transceiver interfaces the single ended CAN controller with the differential CAN bus found in industrial, building automation, and automotive applications. It operates over a -2V to 7V common-mode range on the bus, and it can withstand common-mode transients of ±25 V.

Specifications:

IC Case / Package: SOIC
Operating Temperature Min: -40°C
No. of Pins: 8Pins
No. of Channels: 1Channels
Operating Temperature Max: 85°C
No. of Receivers: 1Receivers
Supply Voltage Min: 3V
No. of Drivers: 1Drivers
CAN Interface IC Type: CAN Transceiver
Supply Voltage Max: 3.6V
Data Rate Max: 1Mbps

Package Includes:

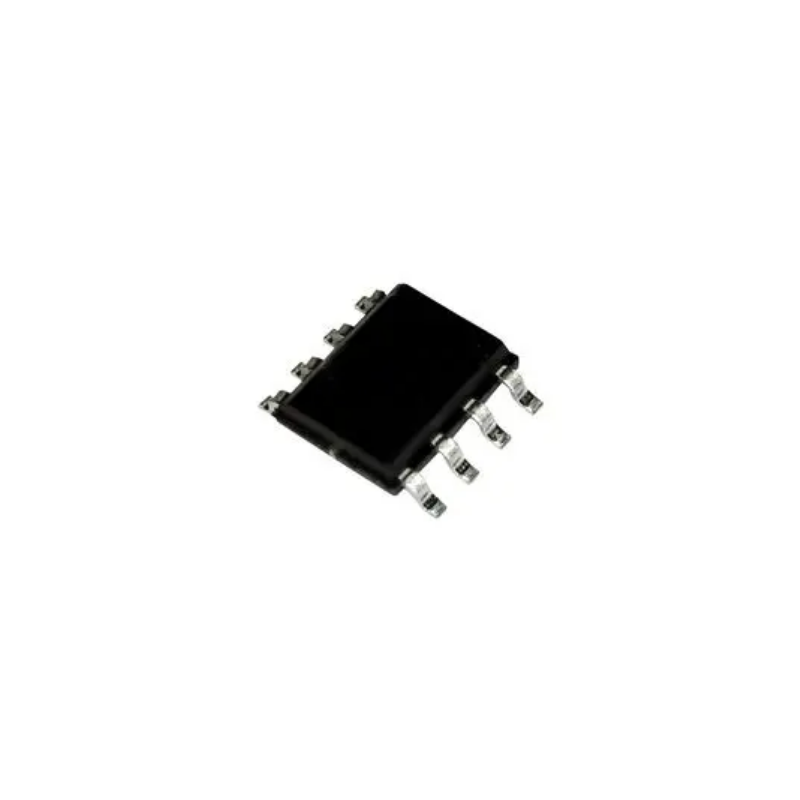

1 x SN65HVD230DR-TEXAS INSTRUMENTS-SN65HVD230DR-CAN Interface, Transceiver, CAN Transceivers, 1 Mbps, 3 V, 3.6 V, SOIC, 8 Pins
