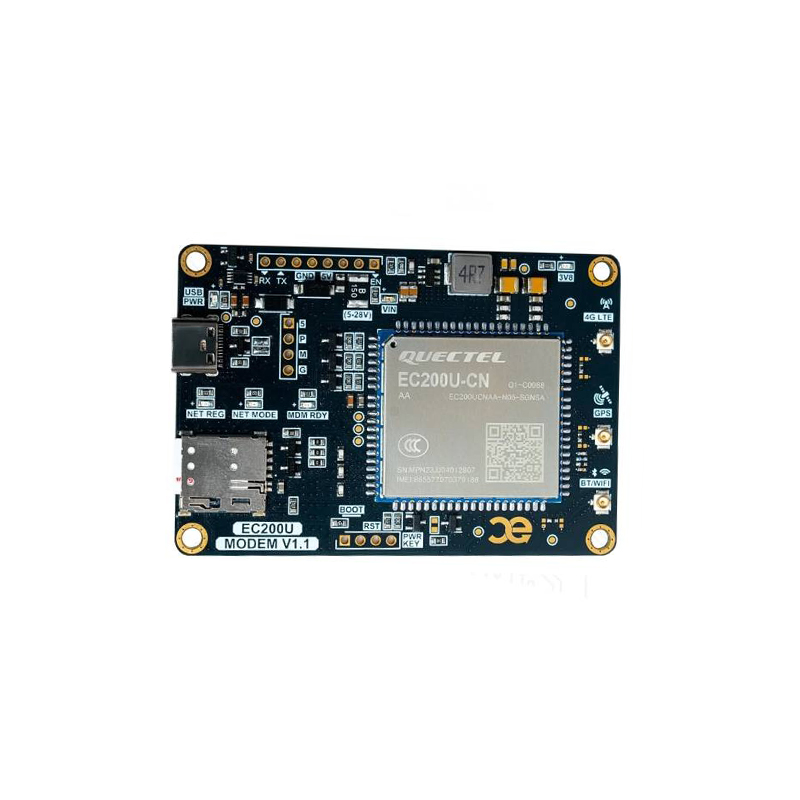

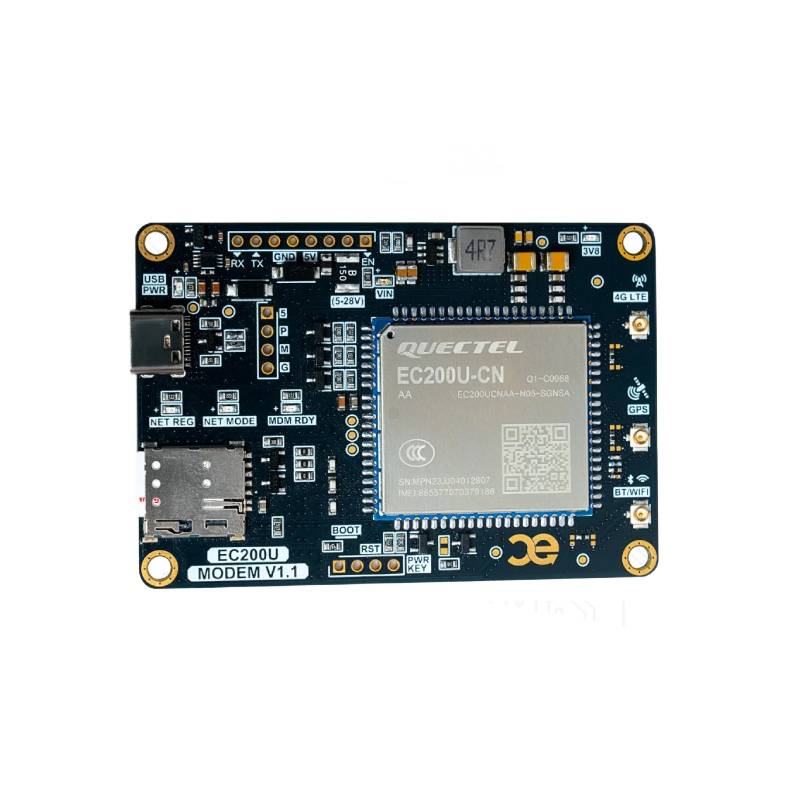

The CAPUF Embedded EC200U 4G Cellular GSM Modem is a versatile communication module powered by the Quectel EC200U 4G chipset. It supports USB and UART interfaces for easy integration, with options for both standard and GPS-enabled variants. The modem operates on 5V to 28V DC, with built-in overvoltage and overcurrent protection.CAPUF EC200U Modem WITHOUT inbuilt GPS features LED indicators for power, modem status, and network connection, and includes a Nano SIM card slot with ESD protection. CAPUF EC200U Modem board also offers connectors for 4G, GPS, and Bluetooth antennas. Ideal for industrial and IoT applications, it provides reliable, high-performance cellular connectivity.

NOTE : 4G/LTE Flex Antenna comes with the modem. Users need to buy a GPS Antenna and Bluetooth Antenna separately.

Features:

1. Powered by Quectel EC200U 4G module for reliable connectivity.
2. USB-C port and 4-pin header for USB interface.
3. ESD protection for USB and SIM card connections.
4. 8-pin header with 3.3V UART and power pins (5V, 5-28V).
5. Nano SIM card slot with ESD protection.

Package Includes:

1x CAPUF EC200U Modem without inbuilt GPS
