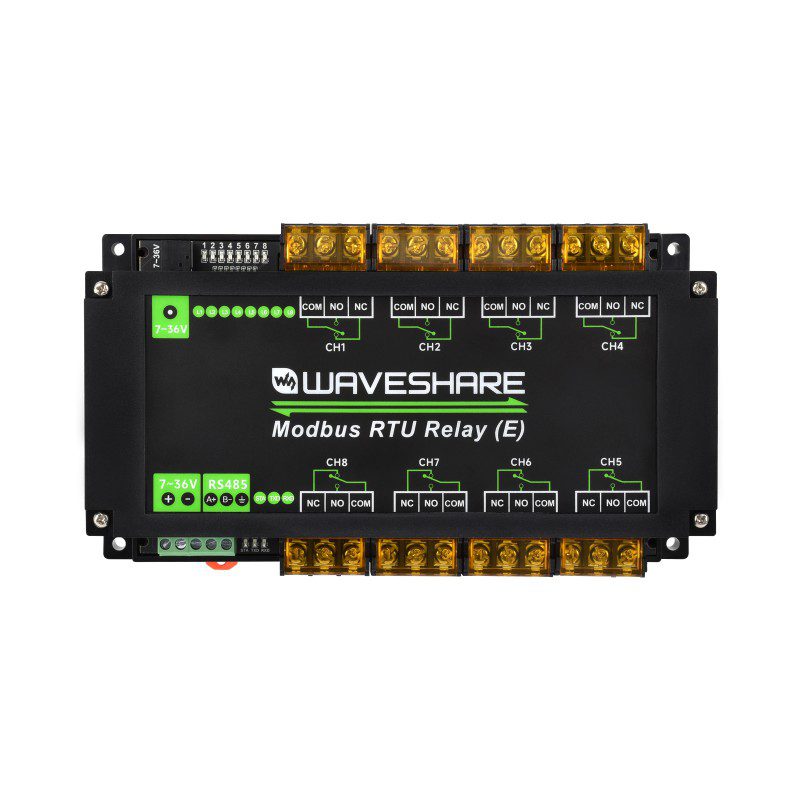

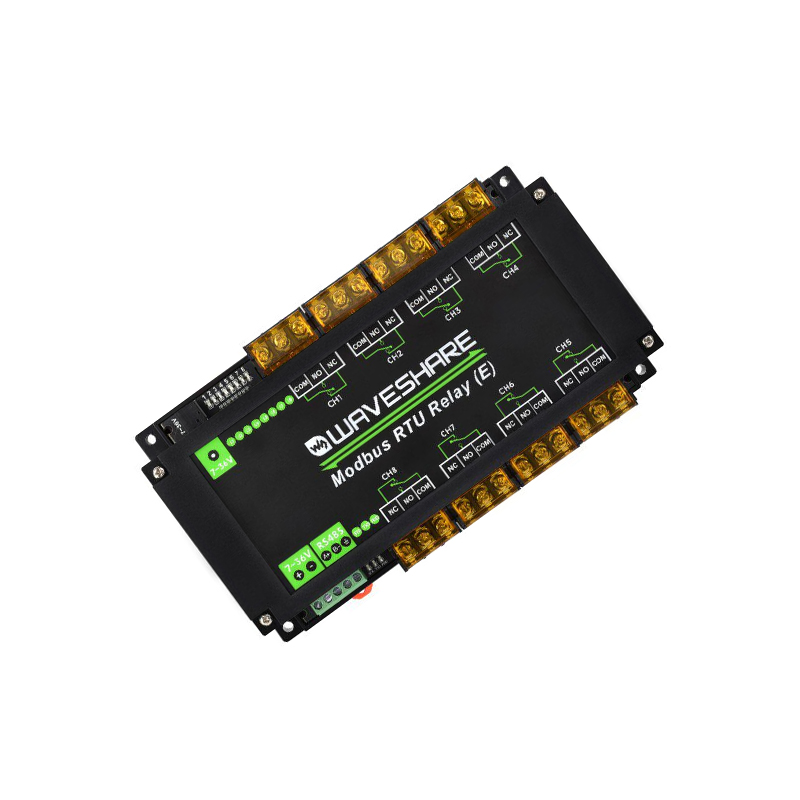

Modbus RTU 8-ch Relay Module is an industrial 8-ch relay module controlled via RS485 bus, utilizing Modbus RTU protocol. It features embedded protection circuits such as power isolation, ADI magnetically isolation, resettable fuse, and TVS diode, etc. Modbus RTU 8-ch Relay Module  also comes with an ABS enclosure. The Modbus RTU Relay (E) is very easy to use. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipment’s and/or applications with high communication requirement.

Features:

1. Configurable device address (1~255), multi devices can be cascaded on RS485 bus
2. Features flash-on, flash-off function, by passing arguments to the command, it is possible to turn on the relay for a while and then close it automatically
3. Onboard voltage regulator, supports 7V~36V wide voltage supply
4. Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
5. Onboard unibody ADI magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
6. Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, provides over-
7. current/over-voltage proof, lightningproof & anti-electrostatic
8. Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
9. Adopts dedicated relay driver chip, with built-in flyback diode protection, for stronger and more stable driving ability
10. Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
11. High quality relay, contact rating: ≤30A 250V AC or ≤30A 28V DC

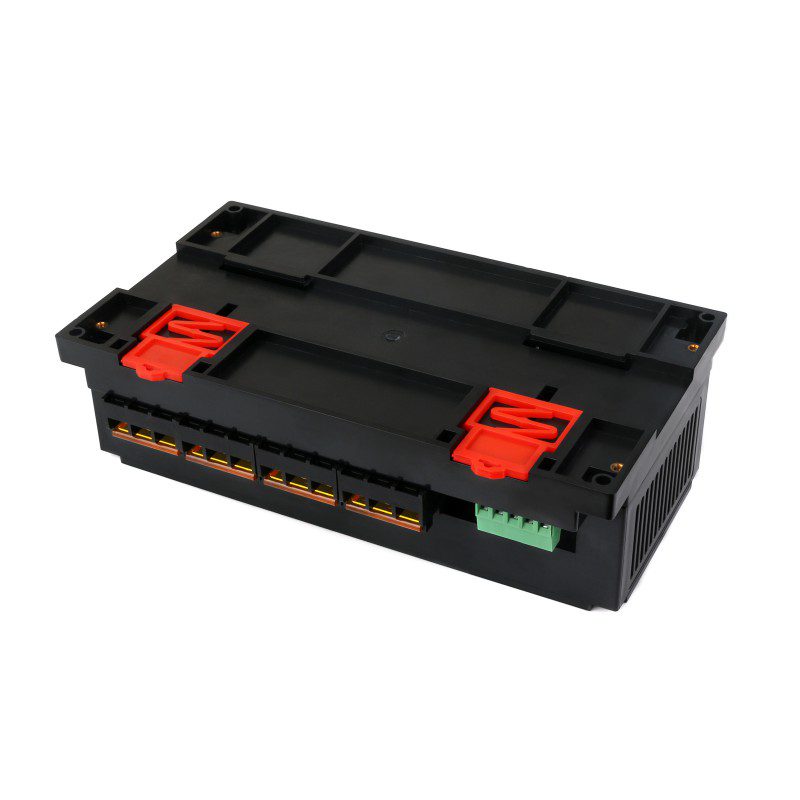

12. Rail-mounted ABS plastic enclosure, easy to install, safe to use
13. 3 LEDs for indicating the MCU status and signal transceiving status

Package Includes:

1 x Modbus RTU Relay (E)
