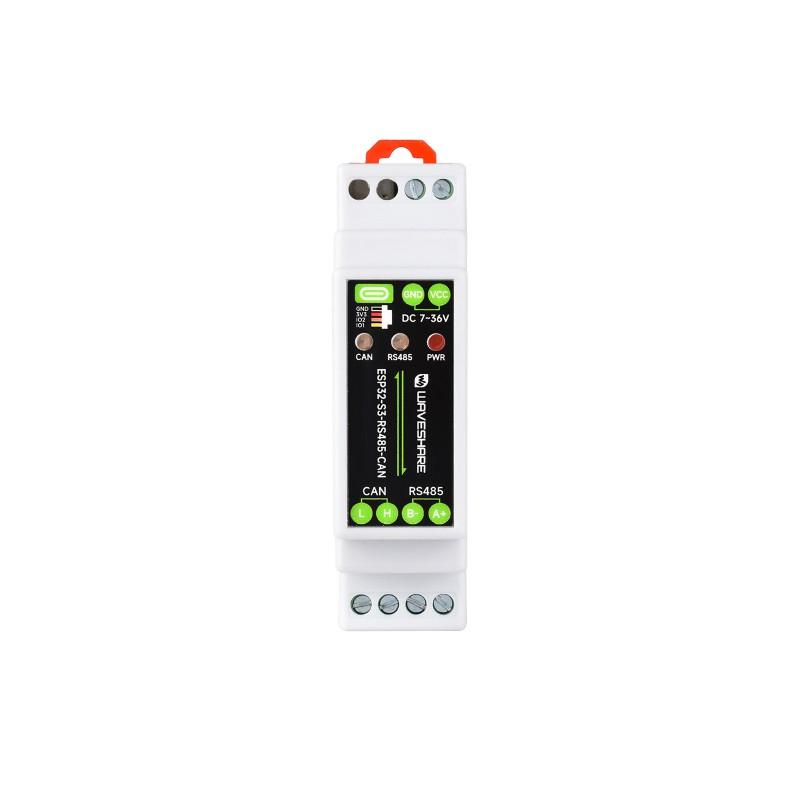

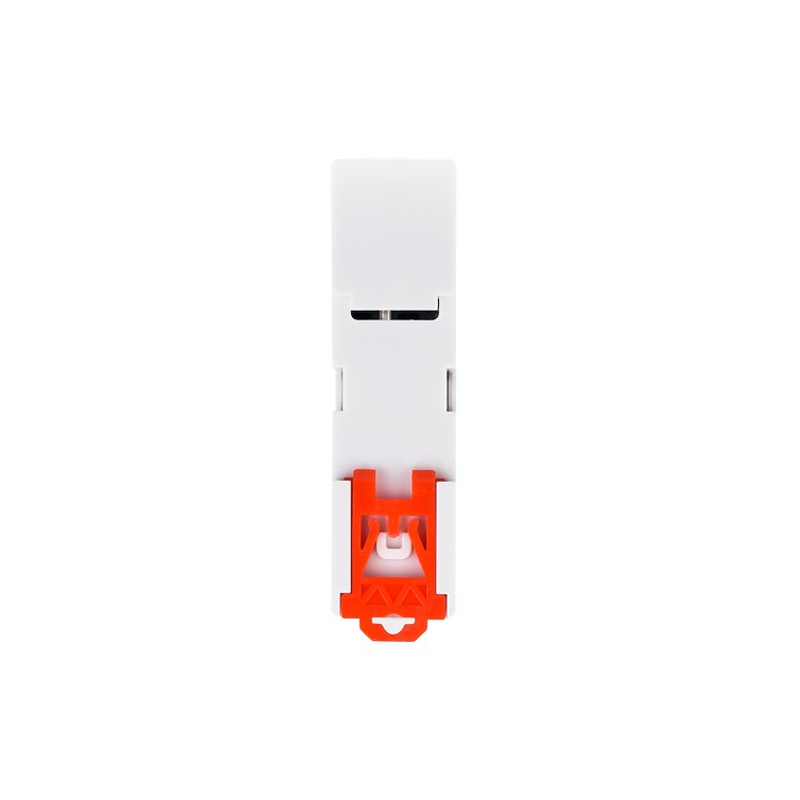

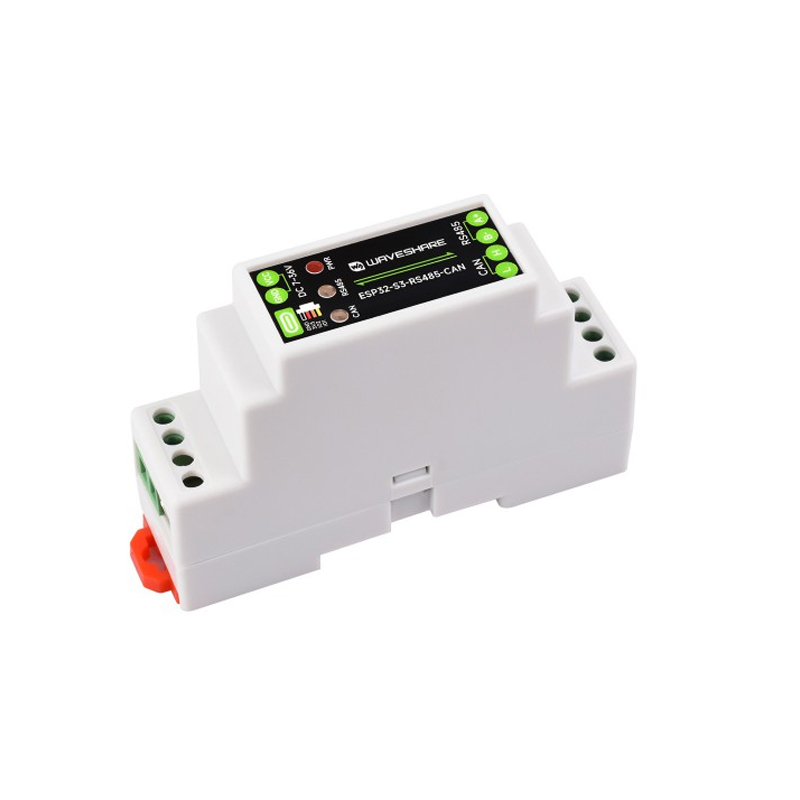

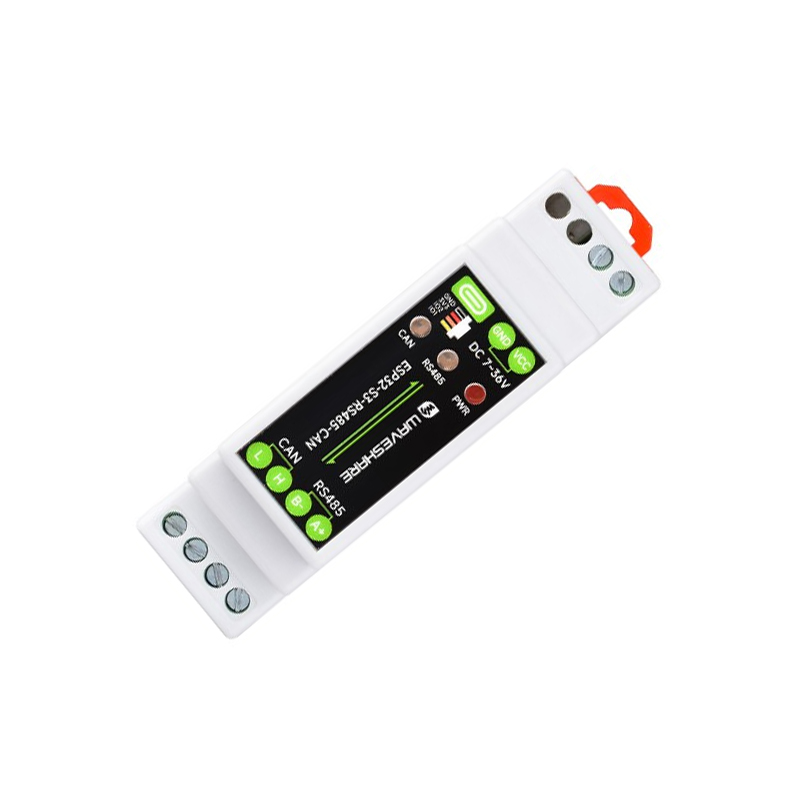

The Waveshare Industrial ESP32-S3 Control Board is a compact, rail-mount module built for demanding industrial applications. Equipped with the powerful ESP32-S3 dual-core processor, it supports high-speed Wi-Fi and Bluetooth 5 (LE) communication, making it ideal for IoT and automation systems. It features isolated RS485 and CAN interfaces for stable data transmission and multiple built-in protection circuits including power and signal isolation.

Designed with industrial-grade reliability in mind, the board also supports 7–36V wide voltage input, onboard RTC, and flexible I/O expansion. Whether you’re building smart industrial controllers or AIoT applications, this board offers safety, stability, and performance in one convenient package—ready to install with its durable rail-mount case.

Features:

1. Based on ESP32-S3 with dual-core Xtensa LX7 processor (240 MHz)
2. Supports Wi-Fi (2.4 GHz) and Bluetooth 5 (LE) dual-mode
3. Isolated RS485 interface for industrial Modbus devices
4. Isolated CAN interface for connecting CAN-enabled devices
5. Wide 7–36V input with onboard screw terminal
6. USB Type-C for power, debugging, and firmware updates
7. Digital and power isolation circuits for safe operation

Package Includes:

1 x Waveshare Industrial ESP32-S3 Control Board

1 x SH1.0 4PIN cable ~150mm

1 x Screwdriver
