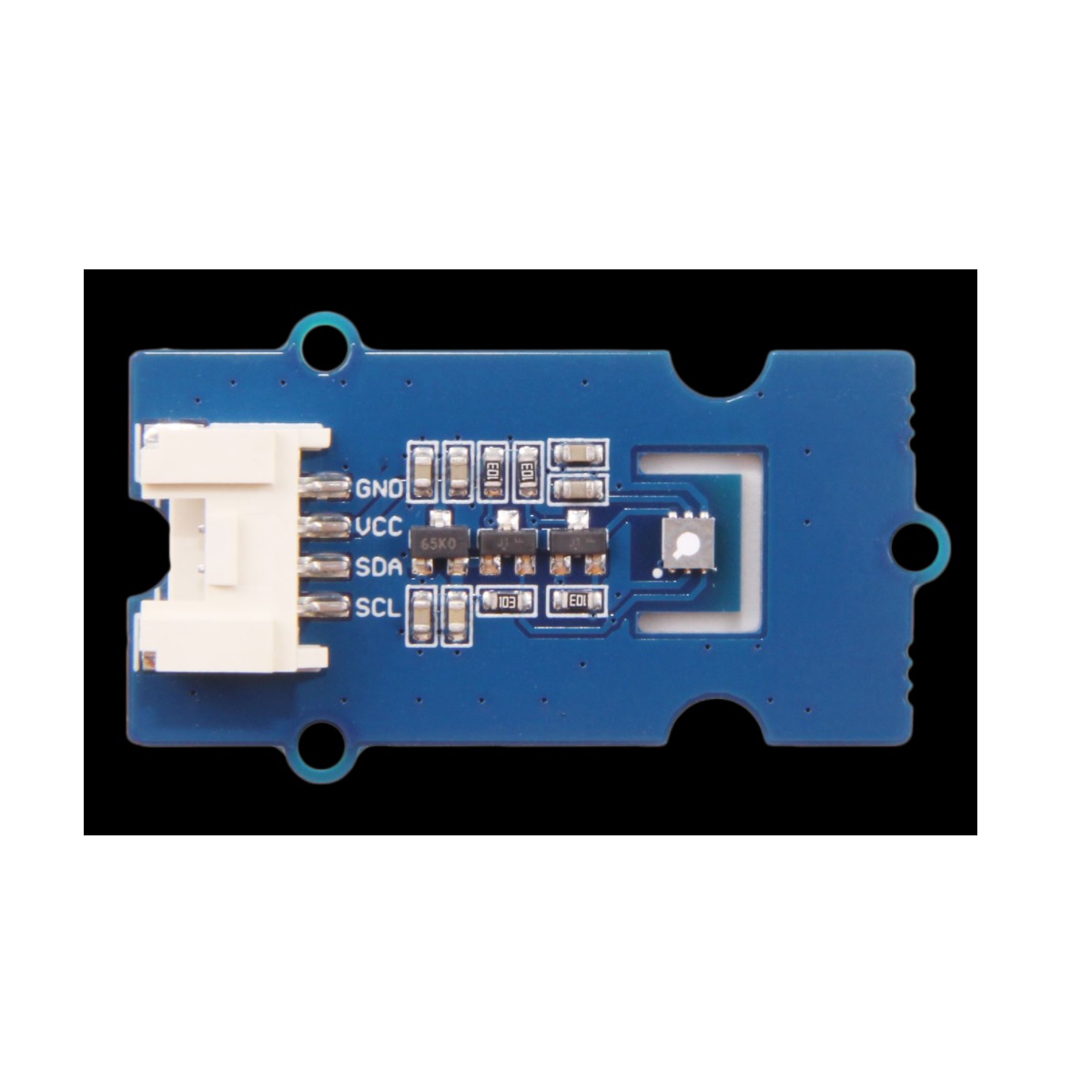

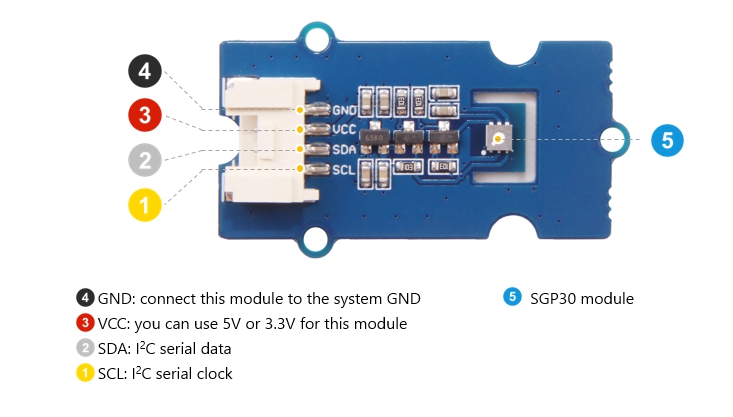

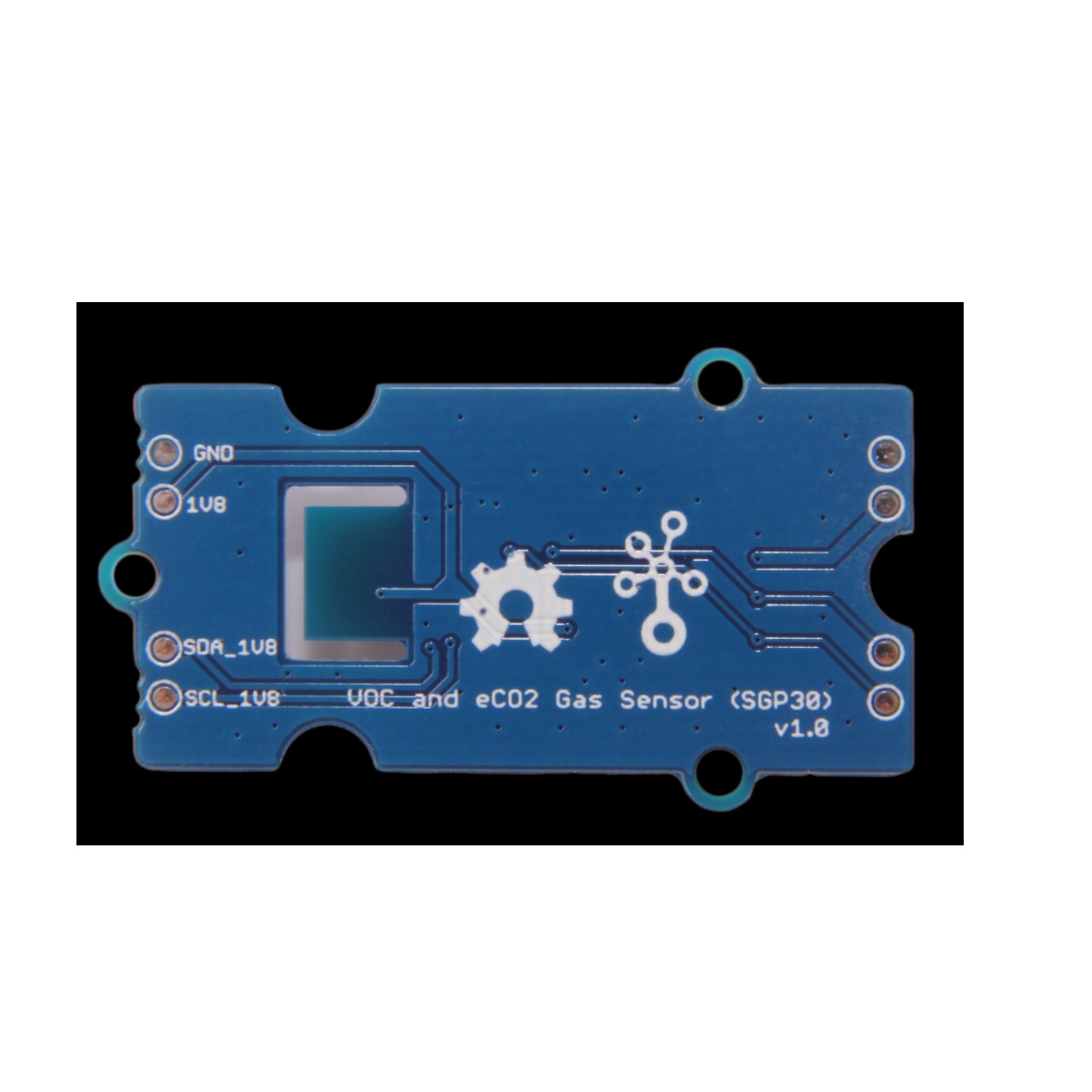

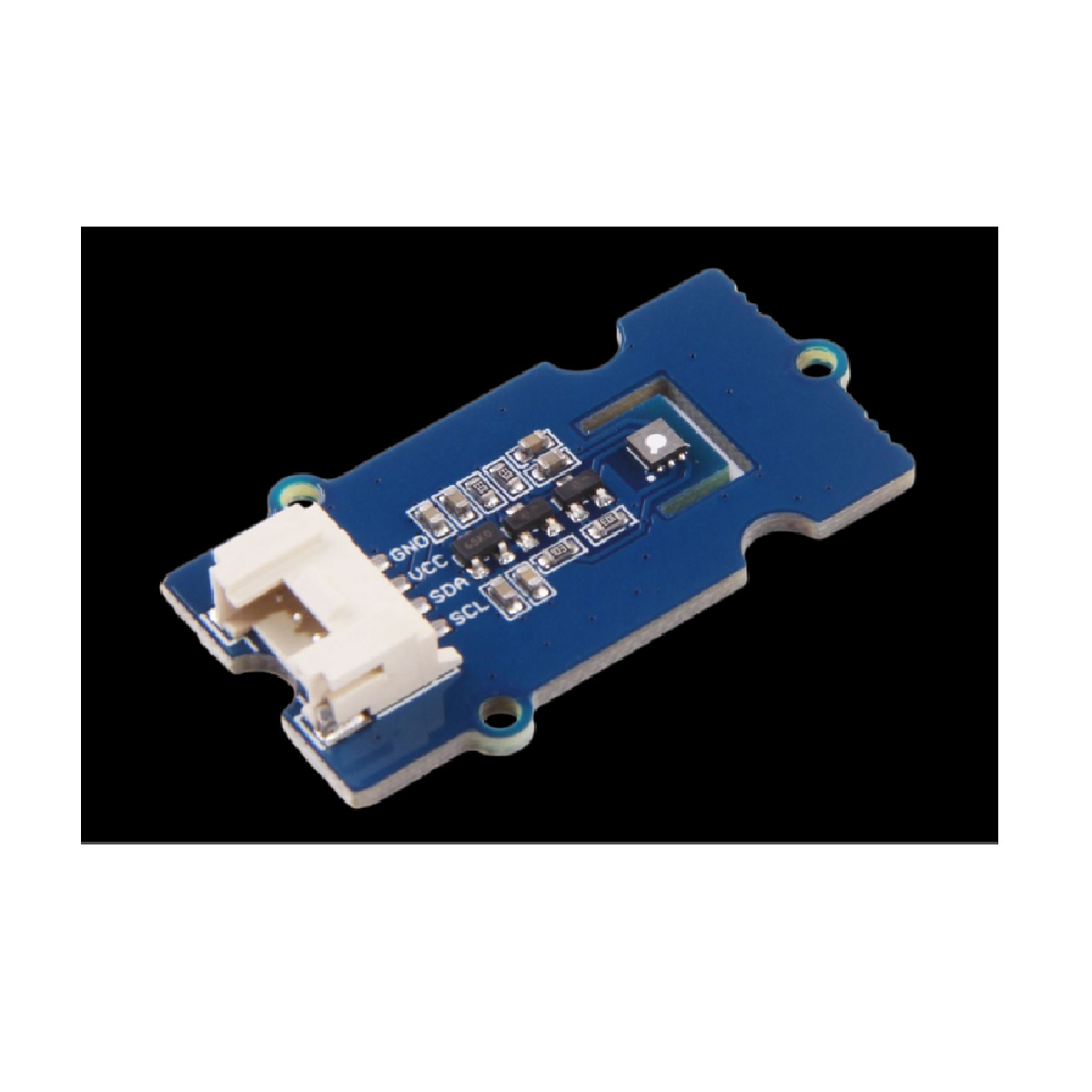

The SeeedStudio Grove VOC and eCO2 Gas Sensor (SGP30) is an air quality detection sensor. This grove module is based on SGP30, we provide TVOC(Total Volatile Organic Compounds) and CO2eq output for this module.

The SGP30 is a digital multi-pixel gas sensor designed for easy integration into the air purifiers, demand-controlled ventilation, and IoT applications. Sensirion’s CMOSens®technology offers a complete sensor system on a single chip featuring a digital I2C interface, a temperature-controlled micro hotplate, and two preprocessed indoor air quality signals. As the first metal-oxide gas sensor featuring multiple sensing elements on one chip, the SGP30 provides more detailed information about air quality.

Note : Version may be different in actual product.

Features:

1. Multi-pixel gas sensor for indoor air quality applications
2. Outstanding long-term stability
3. I2C interface with TVOC and CO2eq output signals
4. Low power consumption
5. Chip module tape and reel packaged, reflow solderable

Application:

1. Air purifier
2. demand-controlled ventilation
3. IoT applications
4. New house air-condition monitor

Useful Link:

https://wiki.seeedstudio.com/Grove-VOC_and_eCO2_Gas_Sensor-SGP30/

Package Includes :

1 x SeeedStudio Grove VOC and eCO2 Gas Sensor
