Reyax RYS8839 Ultra-Low Power, L1 L5 Dual-Band Multi-Constellation +1.8V GNSS Module
- Model: RYS8839
- Operating Temperature: -40 to 85˚C
- Default Baud Rate: 115200bps
- Idle Current: 2mA
SKU: Not Found
Brand: Reyax
Out of stock
₹1517.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description

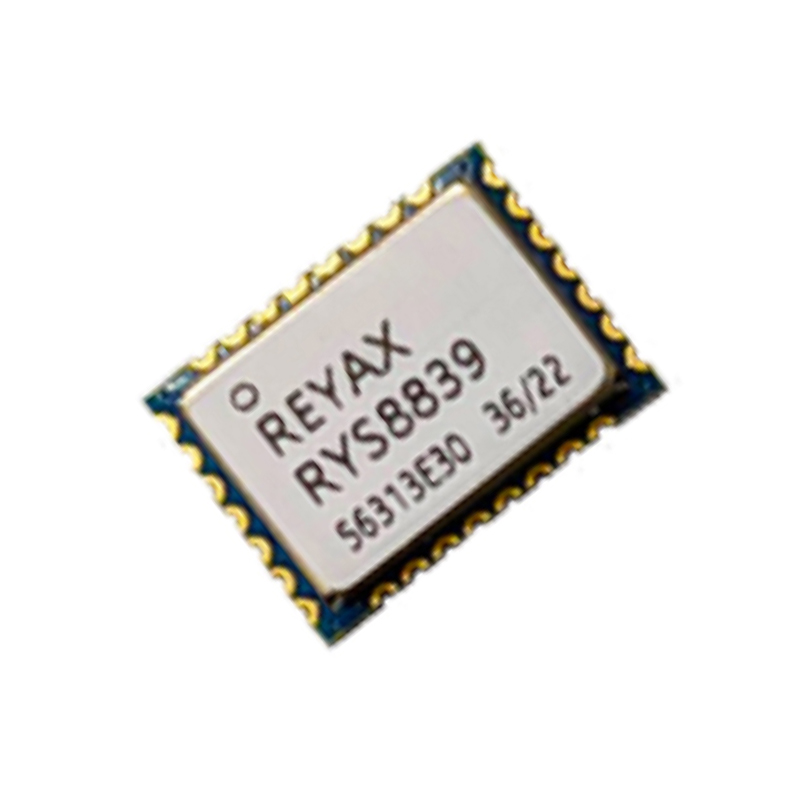

The RYS8839 is an ultra-low power, L1 L5 Dual-band multi-constellation GNSS module. It also has integrated digital noise filters for coexistence with other radio systems.
Note: To Know more details please refer to datasheet on attachment section.
Features:
- SONY CXD5610GF Engine.
- A L1 L5 Dual-band GNSS receiver.
- Supports multi-constellation : GPS(L1C/A,L5) GLONASS(L1OF) BeiDou(B1I. B1C, B2a) Galileo(E1, E5a) QZSS(L1C/A, L1S, L1C/B, L5) NavIC(L5) SBAS(L1)
- Embedded digital noise filters and spectrum analyzer.
Package Includes:
1 x Reyax RYS8839 Ultra-Low Power, L1 L5 Dual-Band Multi-Constellation +1.8V GNSS Module
Technical Specifications
| Baud Rate (bps) | 115200 |
|---|---|
| Idle Current (mA) | 2 |
| Item Type | Module |
| Model No | RYS8839 |
| Module Type | GNSS Module |
| Operating Temperature (°C) | -40 to 85 |
| Shipping Dimensions | 5 × 3 × 3 cm |
| Shipping Weight | 0.01 kg |
