GSM GPRS and GNSS Modules

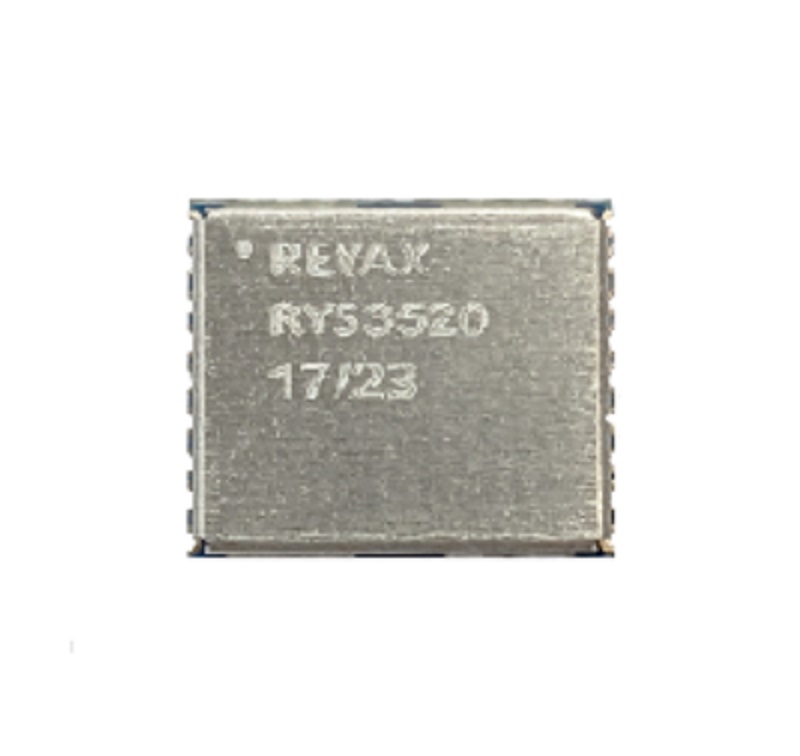

Reyax RYS3520 + 3.3 V UART interface GNSS module
- Not Found
SKU: Not Found
Brand: Reyax
Out of stock
₹843.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The RYS3520 +3.3V GNSS module is a multi-GNSS module with high sensitivity and performance, It supports GPS, GLONASS, Galileo, BeiDou, and QZSS systems. It also supports SBAS, WAAS, EGNOS, MSAS, GAGAN, and AGNSS functions.
Features:
- Multi-GNSS GPS/GLONASS/Galileo/BeiDou module.
- Protocol NMEA 0183 V4.10
- Support for multi-GNSS including QZSS and SBAS ranging.
- Integrated 12 multi-tone active interference cancellers.
- Indoor and outdoor path detection and compensation.
- Including enhanced SAW filter, LNA and TCXO.
Package Includes:
1 x Reyax RYS3520 + 3.3 V UART interface GNSS module
Technical Specifications
| Acceleration (g) | 4 |
|---|---|
| Accuracy | 1.5M |
| Item Type | Module |
| Maximum Altitude (m) | 10000 |
| Module Type | GNSS Module |
| Operating Temperature (°C) | -40 to 85 |
| Shipping Dimensions | 6 × 5 × 1 cm |
| Shipping Weight | 0.005 kg |
| Voltage Rating (VDC) | 2.5 to 3.6 |
