This is a high-precision rotary incremental encoder designed for demanding motion control applications. Its exceptional 1000 pulses per revolution (PPR) resolution provides highly accurate position feedback, critical for precise control. The compact 38mm diameter makes it suitable for installation in space-constrained environments.

Employing photoelectric sensing, this encoder ensures reliable and accurate signal generation, minimizing errors. The ABZ 3-channel output, including quadrature signals (A and B) for direction sensing and a zero-pulse (Z) for reference positioning, enables precise control and homing. The encoder’s robust construction ensures durability and reliable operation in challenging industrial environments.

Features:

1. High Resolution: 1000 pulses per revolution (PPR) for precise motion control.
2. Compact Design: 38mm size for easy installation in tight spaces.
3. Three-Channel Output (ABZ): Provides directional, incremental, and zero-position signals.
4. Photoelectric Technology: Ensures reliable and accurate performance.
5. 24V Power Supply: Wide compatibility with industrial systems.

Package Includes:

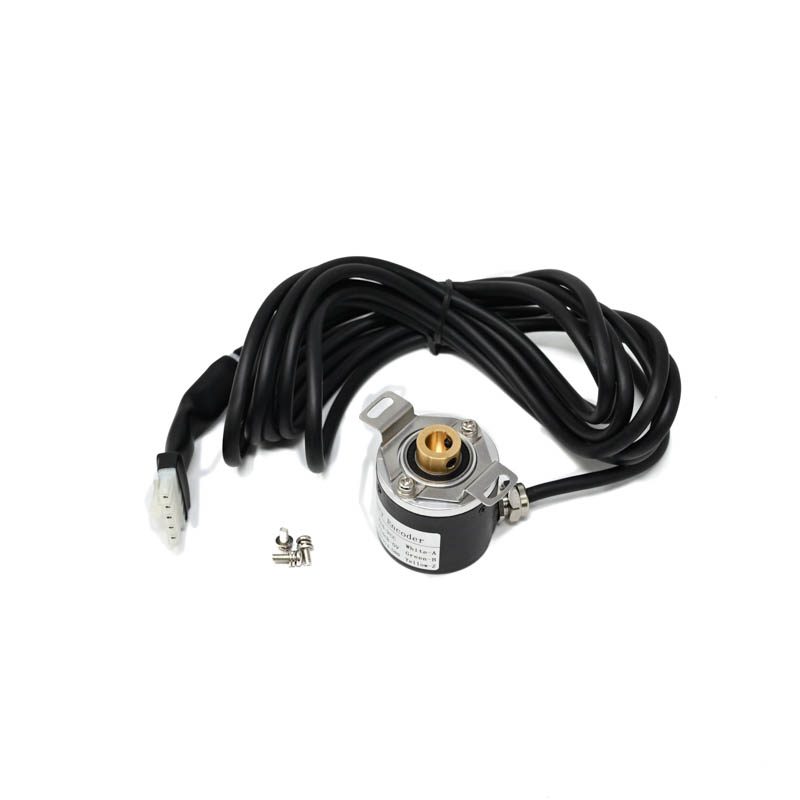

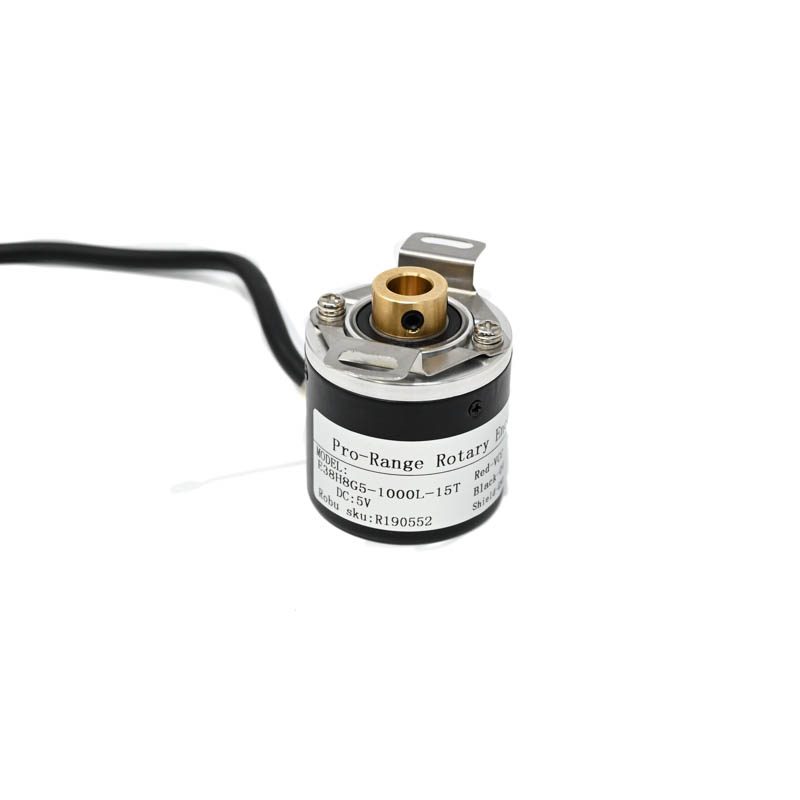

1 x Pro-Range (E38H8G5-1000L-15T) Rotary Incremental Encoder – 38mm, Photoelectric, ABZ 3 Channels, 1000 PPR
