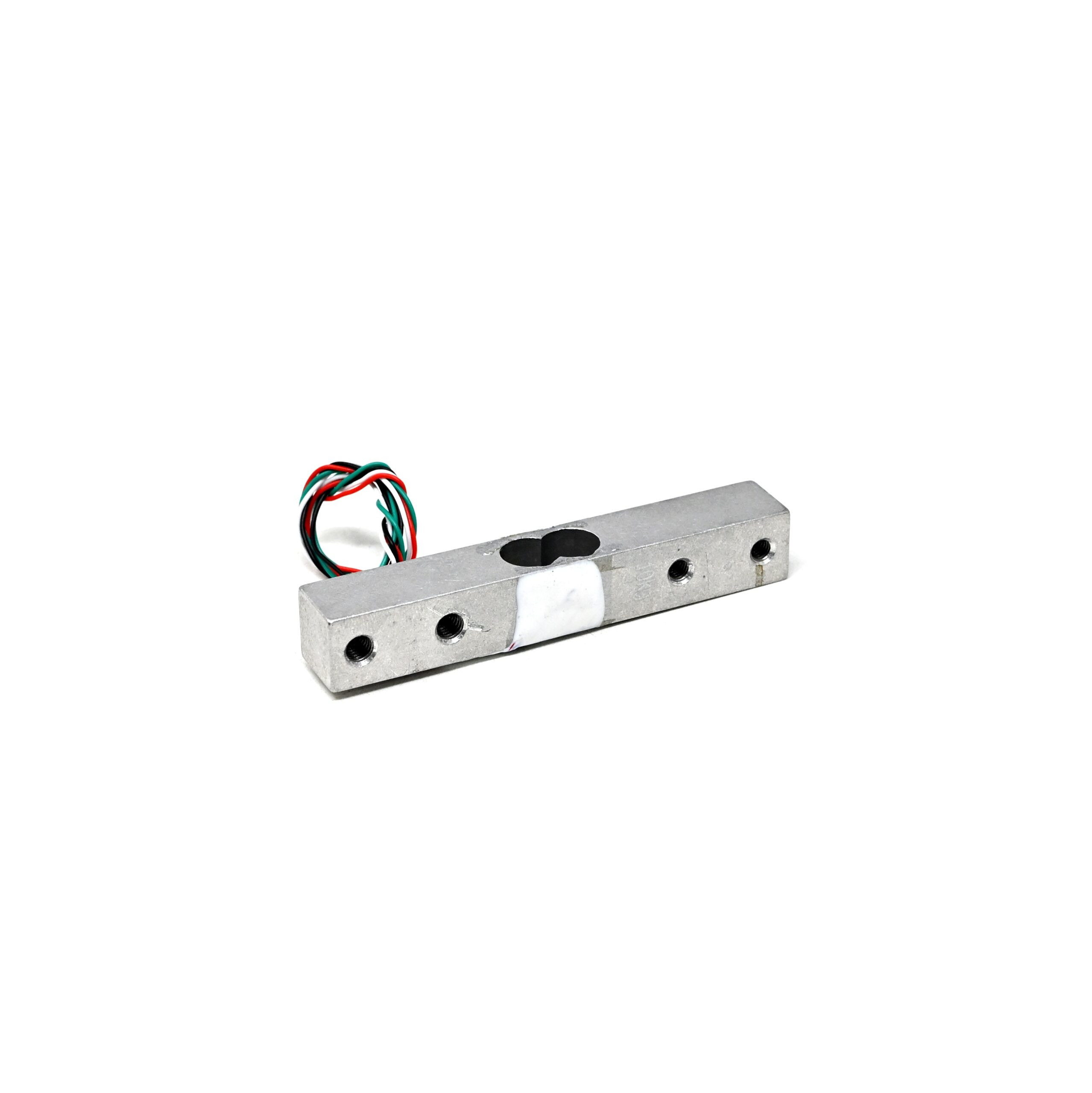

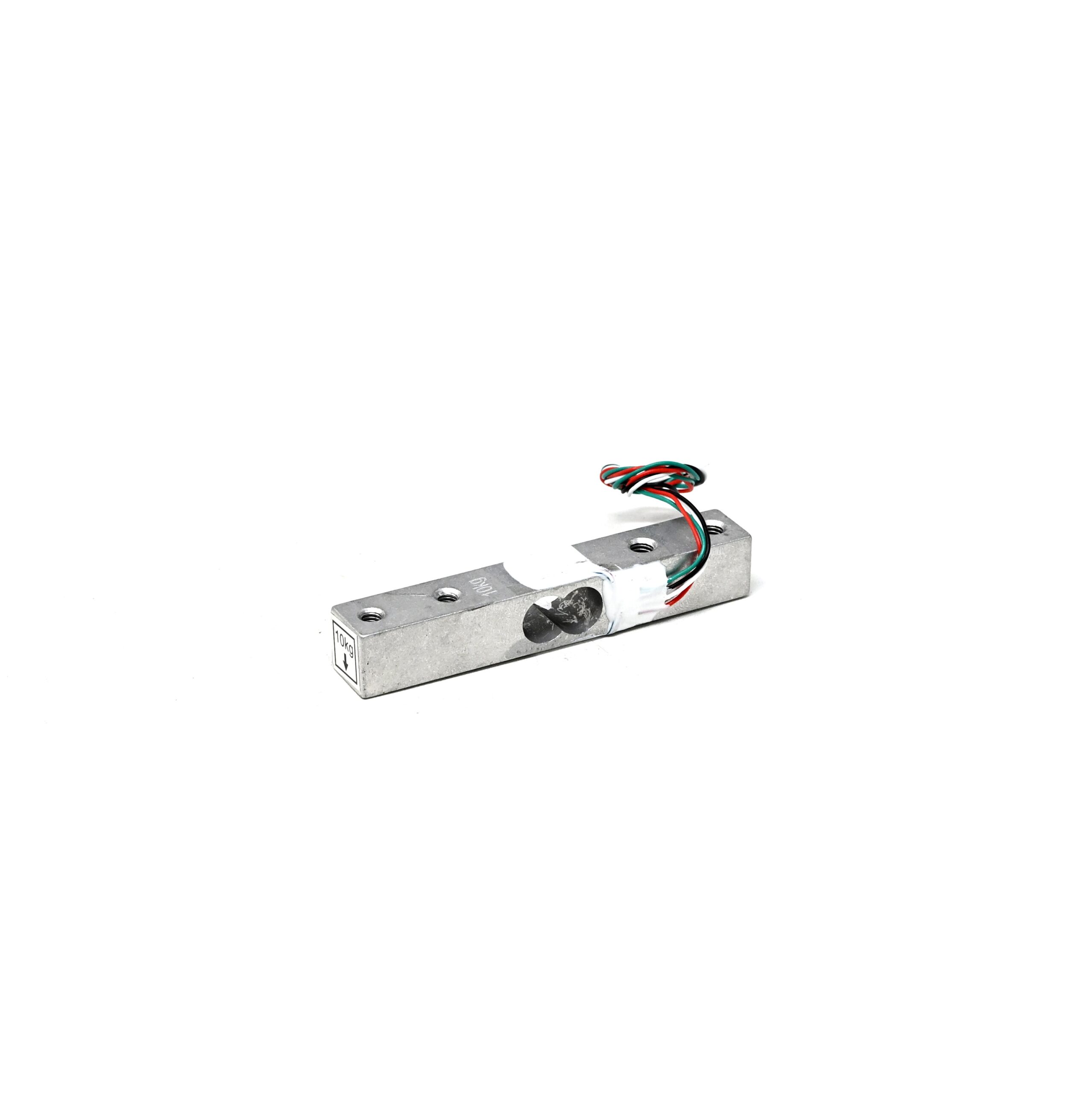

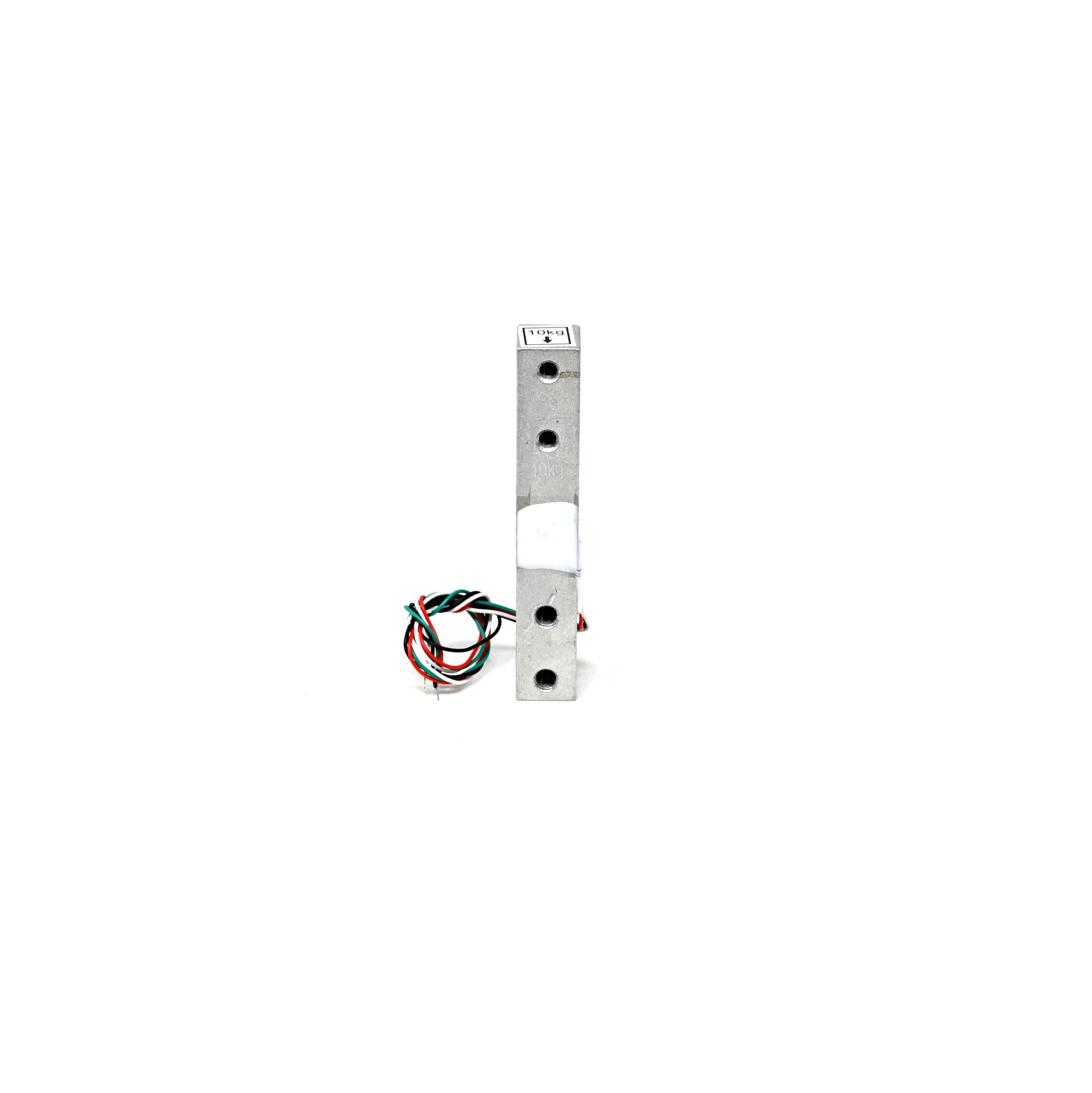

Phaeton Load Cell Sensor CZL-611N 10KG Screw-fastened
- Model: CZL-611N
- Measuring Range: 10 kg
- Output Sensitivity: 1.0±0.1 mV/V
- Dimensions: 80×12.7×12.7 mm
SKU: Not Found
Brand: Phaeton
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The CZL-611N load cell sensor is engineered for precise weight measurement within a range of 10 kg. This screw-fastened model ensures easy installation and robust stability in various applications. With high output sensitivity and minimal drift, it delivers accurate readings consistently. Compact in design, this load cell is perfect for integration into equipment where space is limited, making it an excellent choice for industrial and commercial use.
Features:
- Exceptional output sensitivity of 1.0±0.1 mV/V for precise weight measurement.
- Ensures secure and stable installation for reliable performance.
- Dimensions of 80×12.7×12.7 mm allow for versatile installation options.
Package Includes:
1 x Load Cell Sensor-CZL-611N 10KG Screw-fastened
Technical Specifications
| Model No | CZL 611N |
|---|---|
| Output Impedance | 1000±5% ohm |
| Sensitivity range | 1.0±0.1 mV/V |
| Shipping Dimensions | 11 × 3 × 3 cm |
| Shipping Weight | 0.05 kg |
| Weighing Load (kg) | 10 |
| Wiring | Negative signal (White), Negative stimulation (Green), Positive signal (Black), Positive stimulation (Red) |
