WIN-SN-LUX-M is a high-precision luminous intensity sensor designed for industrial and IoT applications, supporting Modbus RS485 communication. With a measurement range of 1–65,535 LUX, it delivers accurate, real-time light intensity data, ideal for lighting automation, smart buildings, and environment monitoring.

The device is compact, reliable, and supports configurable digital output via a built-in relay, which can be triggered when user-defined LUX thresholds are exceeded. Its rugged design ensures stable performance in harsh conditions (–20°C to 60°C, 0–70% RH). The sensor supports both 12–24V DC and 230V AC power inputs (optional) and offers configurable baud rates and slave IDs via Modbus registers. Ideal for long-term deployment, the WIN-SN-LUX-M balances cost-effectiveness with professional-grade performance, simplifying integration in embedded or distributed systems through its RS485 interface and wide electrical compatibility.

Features:

1. LUX range: 1 to 65,535
2. Modbus RS485 communication with configurable registers
3. In-built digital output relay for light-based control
4. Wide power input: 12–24V DC / 230V AC (optional)
5. Operating temp: –20°C to 60°C, 0–70% RH
6. Baud rate adjustable: 9600–115200 bps
7. Long-term stability in harsh industrial environments
8. Easy installation with shielded 22 AWG twisted pair cable

Package Includes:

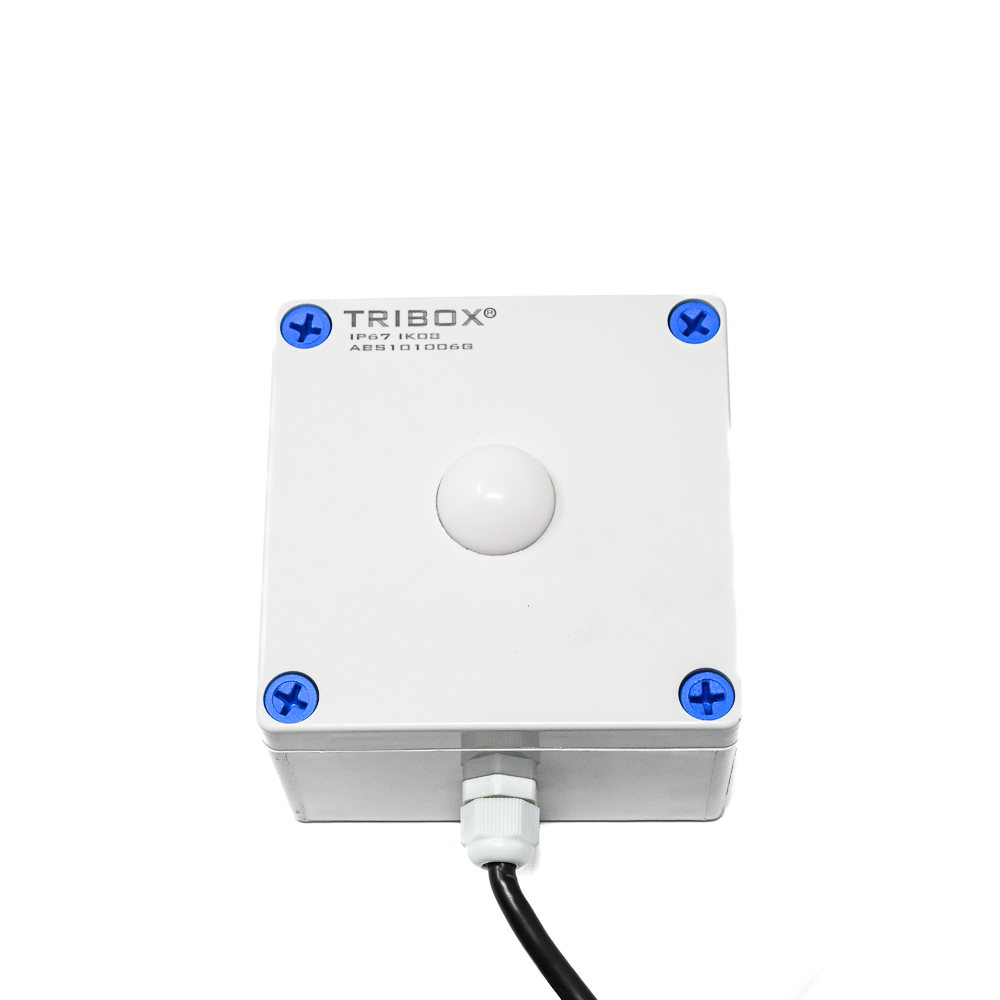

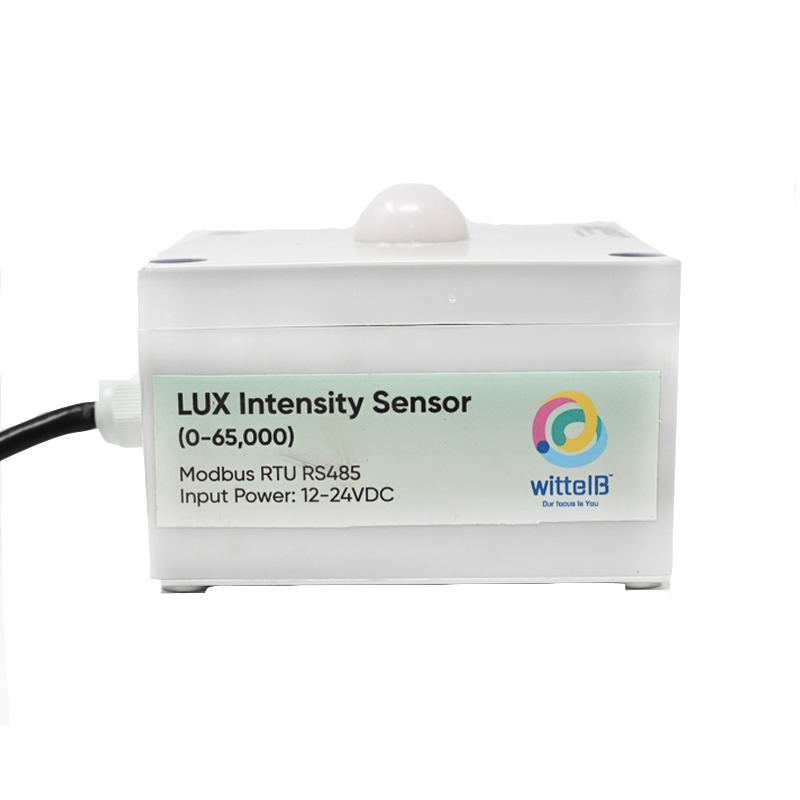

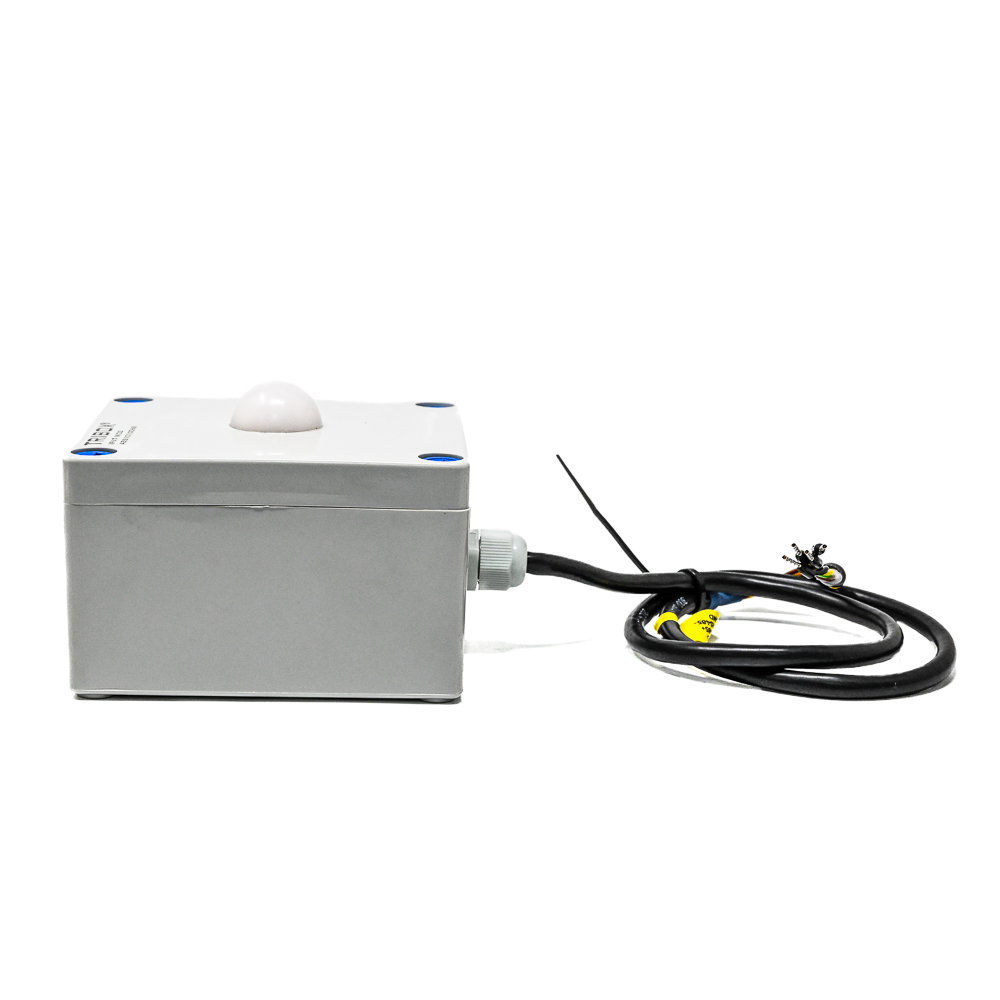

1 x WIN-SN-LUX-M(65k) – Lux sensor with Range (0-65k) and Modbus Rs485
