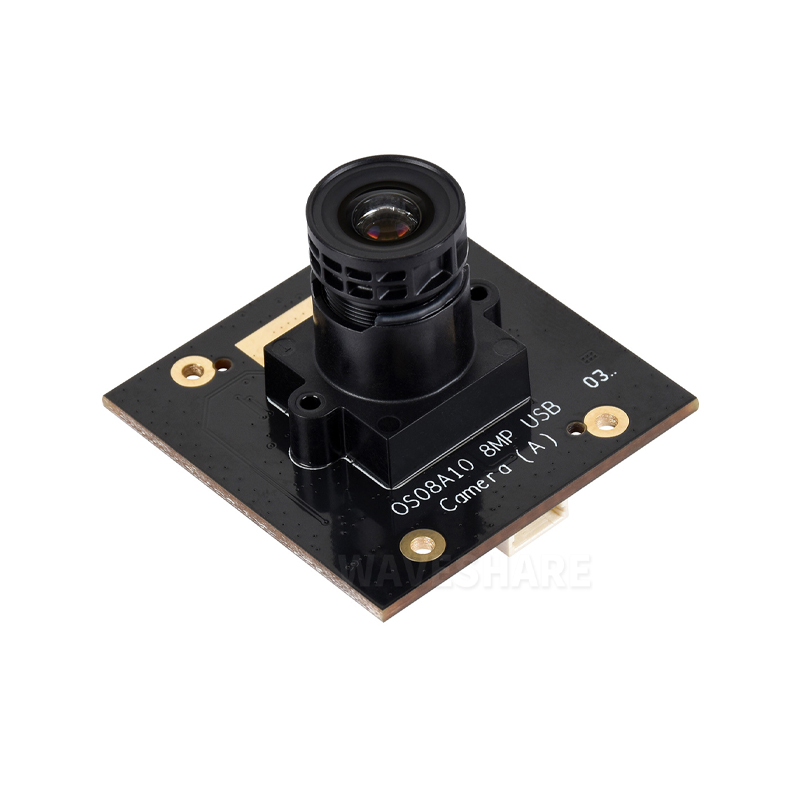

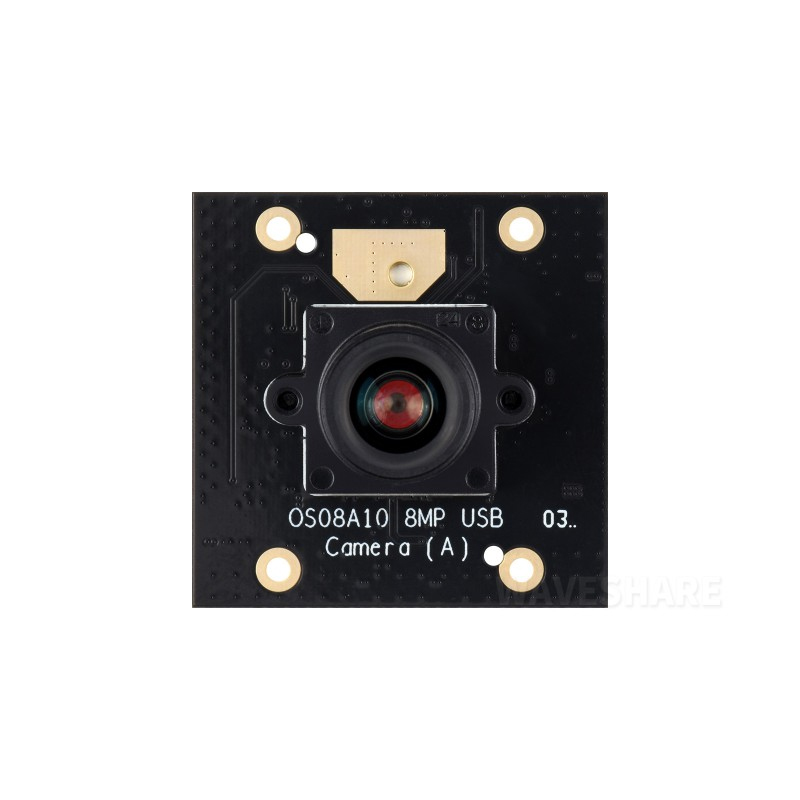

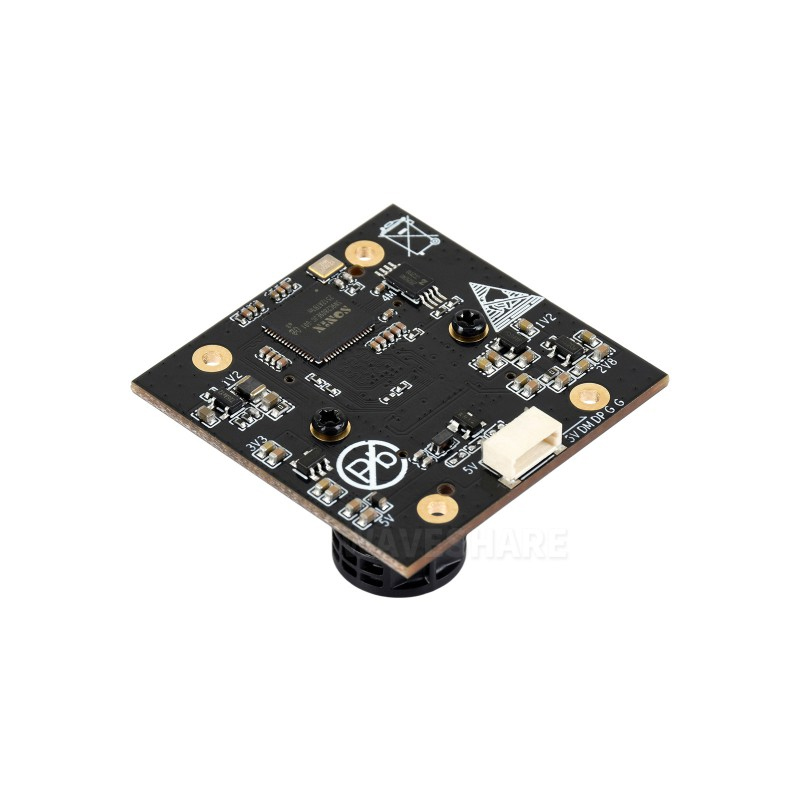

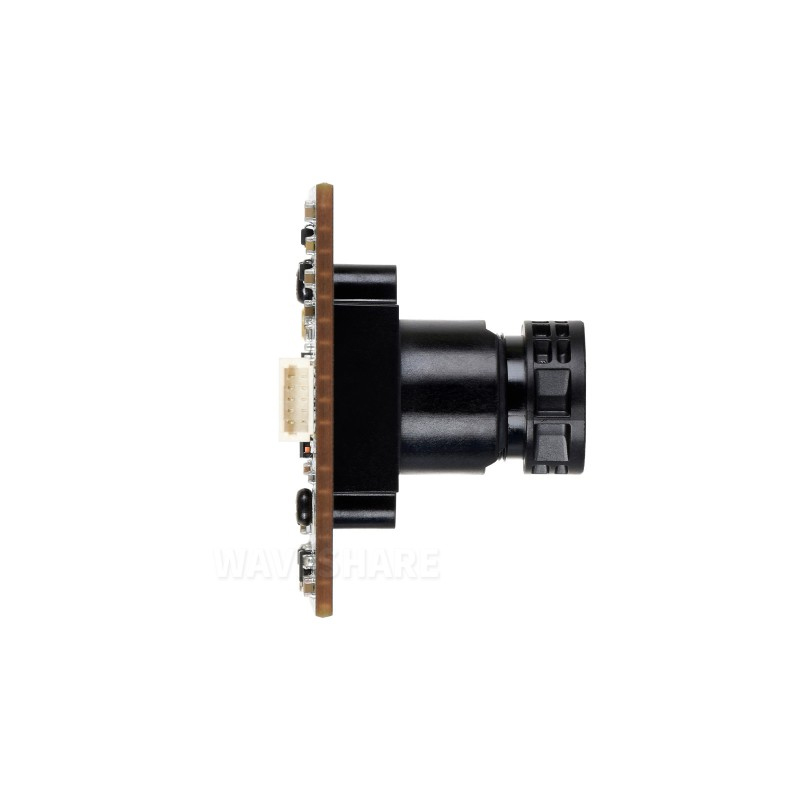

Waveshare OS08A10 8MP M12 USB Camera Module
- 8MP OS08A10 sensor, 1/1.8″ size
- USB 2.0 interface, plug-and-play
- F1.6 aperture, 4.2mm focal length
- Fixed-focus M12 lens, low distortion
- FOV: 68° (D) / 60° (H) / 35° (V)
SKU: Not Found
Brand: WAVESHARE
Out of stock
₹6764.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The Waveshare OS08A10 8MP M12 USB Camera Module is designed for users who need crisp, high-resolution imaging with reliable low-light performance. Powered by the OS08A10 sensor, it delivers 4K-level clarity, smooth video output, and low distortion for industrial, AI, and vision-based applications. With a USB 2.0 plug-and-play interface, it works instantly with PCs, embedded systems, and smart devices without driver installation. Its fixed-focus M12 lens, wide dynamic support, and compact 38×38 mm design make it ideal for inspection systems, robotics, security, and development environments where stable, clear imaging is crucial.
Features:
- 8MP OS08A10 sensor for ultra-clear 3840×2160 imaging
- Excellent low-light sensitivity for clean, bright visuals
- USB 2.0 plug-and-play connection, no drivers required
- M12 lens with F1.6 aperture for enhanced light intake
- Fixed-focus design with low <-2.4% distortion
- Wide FOV: 68° (D) / 60° (H) / 35° (V)
Package Includes:
1 x OS08A10 8MP USB Camera
1 x Type-A to SH1.0 5PIN ~1m
Technical Specifications
| Field of View (FOV) | 68° (D) |
|---|---|
| Focal Length (mm) | 4.2 |
| Height (mm) | 36 |
| Interface | USB 2.0 |
| Item Type | USB Camera Module |
| Length (mm) | 37 |
| Model | OS08A10 |
| Photo resolution | 3840 × 2160 |
| Pixels | 8MP |
| Shipping Dimensions | 10 × 8 × 3 cm |
| Shipping Weight | 0.048 kg |
| Weight (g) | 12 |
| Width (mm) | 30 |
