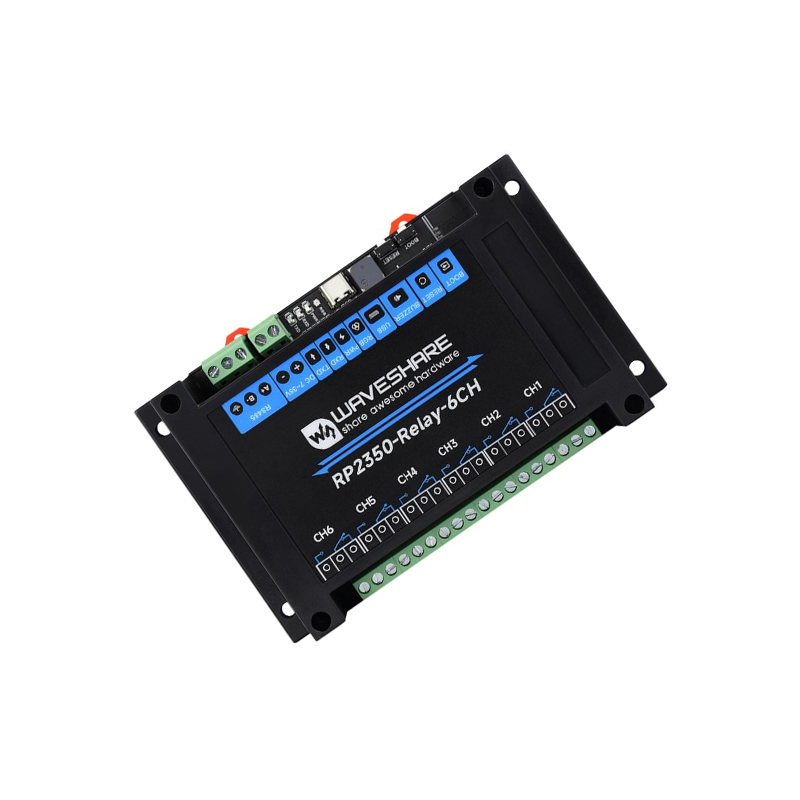

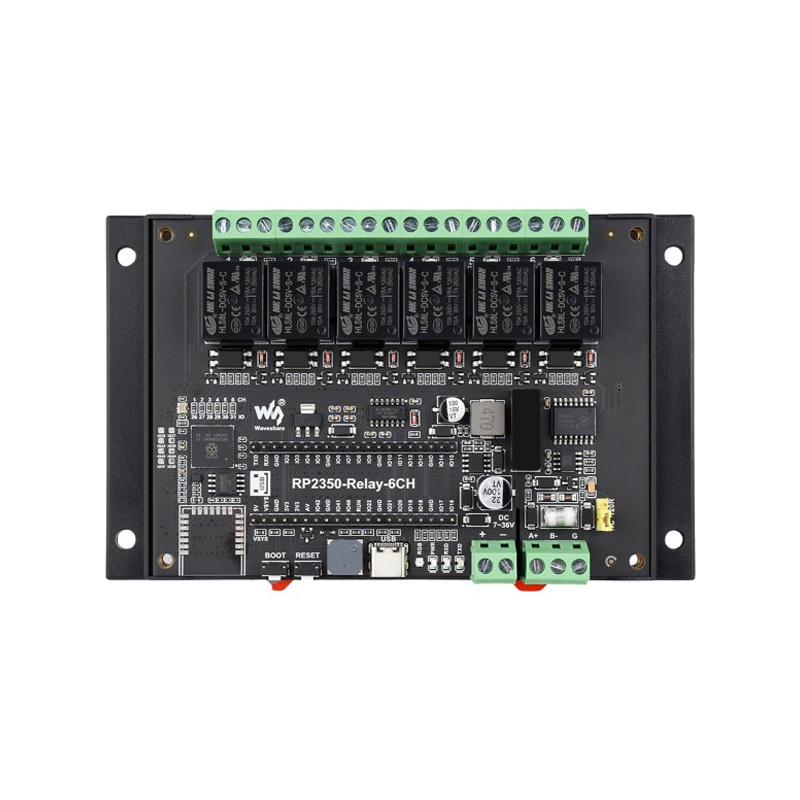

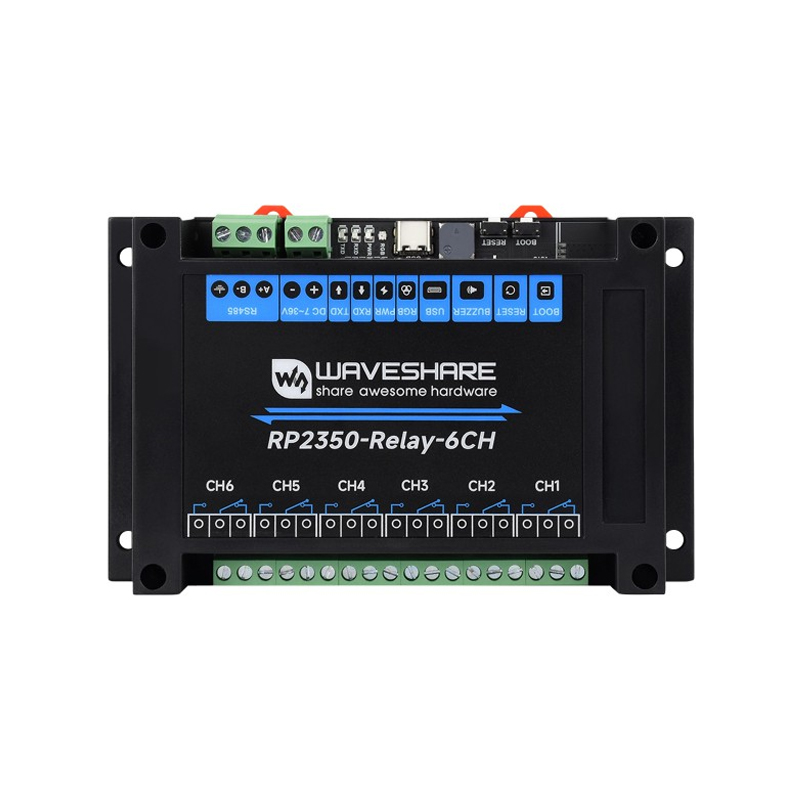

The Waveshare Industrial 6-Channel RP2350 Relay Module is a high-performance control solution designed for industrial applications. Built around the RP2350B dual-core microcontroller, it features onboard RS485 and Raspberry Pi Pico HAT interfaces for flexible connectivity and expansion. The Waveshare Industrial 6-Channel RP2350 Relay Module offers robust isolation through optocouplers, digital isolation chips, and unibody power supply protection, ensuring stability even in harsh environments.

Each of the six relays can handle up to 10A at 250VAC or 30VDC, allowing for control of powerful industrial equipment. Additional onboard features like wide voltage support (7–36 V), LED status indicators, a Type-C interface, and a DIN rail-mount ABS case make it easy to integrate, monitor, and maintain. Ideal for automation, Modbus communication, and expanding your Raspberry Pi Pico projects in industrial settings.

Features:

1. Dual-core RP2350B microcontroller with Arm Cortex-M33 or Hazard3 RISC-V support
2. Six high-quality relays, rated ≤10A 250VAC/30VDC
3. RS485 interface with hardware auto-direction control and surge protection
4. 40-pin header compatible with Raspberry Pi Pico HATs for easy expansion
5. Optocoupler, digital, and power supply isolation for industrial safety
6. Type-C connector for USB 1.1, programming, and power

Package Includes:

1 x RP2350-Relay-6CH

1 x Screwdriver
