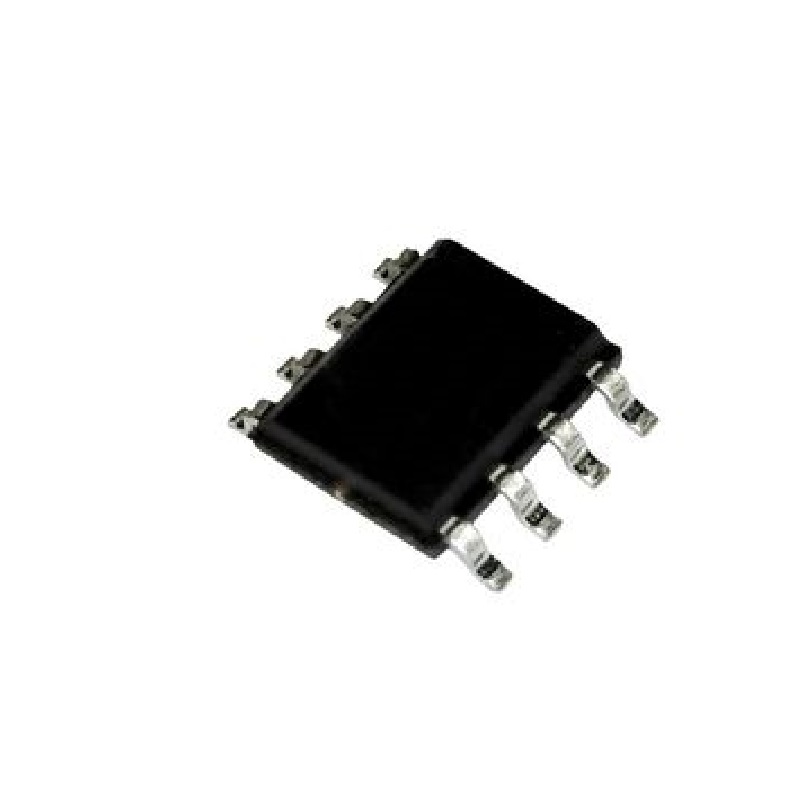

UCC27523D-TEXAS INSTRUMENTS-IGBT/MOSFET Driver, Low Side, 4.5V-18V Supply, 5A Out, 13ns Delay, SOIC-8.

Note: Images for reference only.

Specifications:

No. of Channels: 2Channels
Driver Configuration: Low Side
No. of Pins: 8Pins
IC Mounting: Surface Mount
Source Current: 5A
Supply Voltage Min: 4.5V
Operating Temperature Min: -40°C
Input Delay: 13ns
Product Range: –
MSL: MSL 1 – Unlimited
Gate Driver Type: –
Power Switch Type: IGBT, MOSFET
IC Case / Package: SOIC
Input Type: Inverting
Sink Current: 5A
Supply Voltage Max: 18V
Operating Temperature Max: 140°C
Output Delay: 13ns
Qualification: –
SVHC: No SVHC (27-Jun-2018)

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x UCC27523D-TEXAS INSTRUMENTS-IGBT/MOSFET Driver, Low Side, 4.5V-18V Supply, 5A Out, 13ns Delay, SOIC-8
