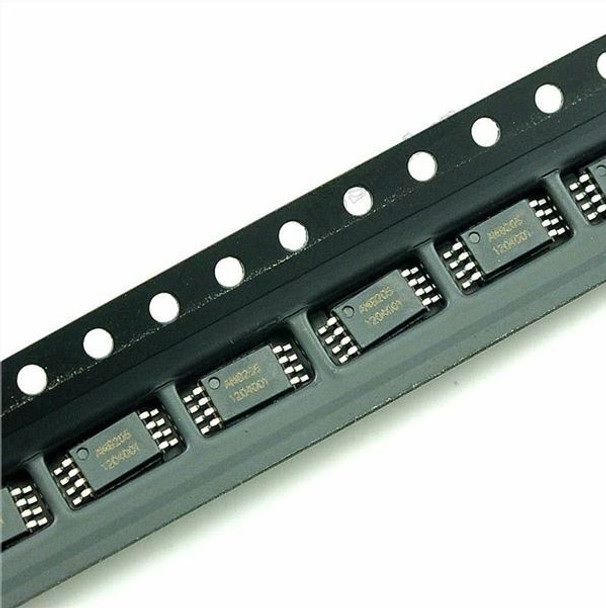

8205A SMD IC Dual N-Channel MOSFET
- TSSOP8 SMD Package
- VDS = 19.5V, ID = 6A
- RDS(ON) < 37mΩ VGS=2.5V
- RDS(ON) < 27mΩ VGS=4.5V
- Used in Battery Protection and other switching applications
- Dual N Channel MOSET
SKU: Not Found
Brand: Generic
Out of stock
₹6.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The 8205A uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V. This device is suitable for use as a Battery protection or in other Switching application.
Note:
- For more technical details, go through the datasheet in the attachments
- Image may vary from actual product in terms of brand and value printed
Features:
- High Power and current handing capability
- Lead free product is acquired
- Surface Mount Package
Packages Includes:
1 x 8205A SMD IC Dual N-Channel MOSFET
Technical Specifications
| Drain Current | Up to 6A |
|---|---|
| Drain-Source Voltage | 20V |
| Gate-Source Voltage | ±8V |
| Item Type | MOSFET |
| Manufacturer | Generic |
| Model Name | Dual N-Channel MOSFET |
| Model No | 8205A SMD IC |
| Shipping Dimensions | 1 × 1 × 1 cm |
| Shipping Weight | 0.001 kg |
