UC3526ADWG4-TEXAS INSTRUMENTS-UC3526ADWG4-Regulating Pulse Width Modulator, 35V-7V supply, 600 kHz, 13V/100mA out, SOIC-18
- MPN: UC3526ADWG4
- Brand: TEXAS INSTRUMENTS
SKU: Not Found
Brand: Texas Instruments
Out of stock
₹207.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
UC3526ADWG4-TEXAS INSTRUMENTS-UC3526ADWG4-Regulating Pulse Width Modulator, 35V-7V supply, 600 kHz, 13V/100mA out, SOIC-18
.

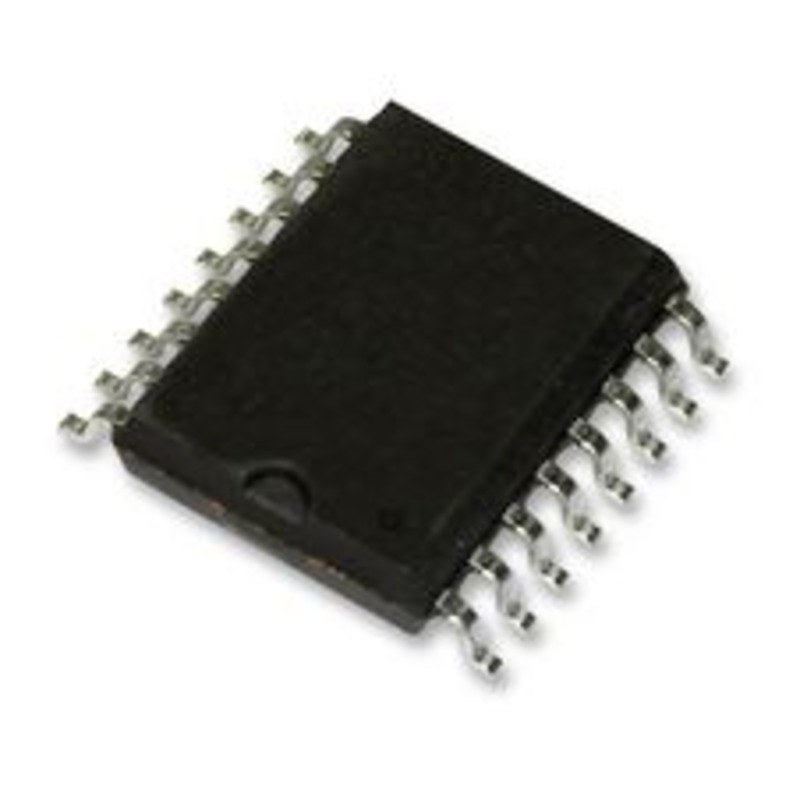

Note: Images for reference only.
Specifications:
IC Case / Package: SOIC
Supply Voltage Min: 7V
No. of Pins: 18Pins
Product Range: Multicomp Pro RJ45 Adapter
IC Mounting: Surface Mount
Duty Cycle Max: 0.49
Supply Voltage Max: 35V
Power Supply Controller Type: Double Ended Controller
Switching Frequency Typ: 600kHz
Control Mode: Voltage Mode Control
No. of Channels: 1Channels
Operating Temperature Max: 70°C
For detailed specifications, please refer to datasheet in Attachments.
Package Includes:
1 x UC3526ADWG4-TEXAS INSTRUMENTS-UC3526ADWG4-Regulating Pulse Width Modulator, 35V-7V supply, 600 kHz, 13V/100mA out, SOIC-18
Technical Specifications
| Case/Package | SOIC |
|---|---|
| Control Mode | Voltage Mode Control |
| Duty Cycle Max | 49% |
| IC Mounting | Surface Mount |
| Manufacturer | Texas Instruments |
| Max. Supply Voltage (V) | 35V |
| Min Supply Voltage | 7V |
| No. of Channels | 1 |
| No. of Pins | 18 |
| Operating Temperature Max | 70°C |
| Power Supply Controller Type | Double Ended Controller |
| Product Range | Multicomp Pro RJ45 Adapter |
| Shipping Dimensions | 1 × 1 × 1 cm |
| Shipping Weight | 0.001 kg |
| Switching Frequency Typ | 600kHz |
