74HC4538D,653-NEXPERIA-Monostable Multivibrator, 74HC4538, 24 ns, 5.2 mA, 2 V to 6 V, SOIC-16.The 74HC4538D is a dual retriggerable-resettable monostable multivibrator has two trigger/retrigger inputs (nA and nB), a direct reset input (nCD), two complementary outputs (nQ and nQ) and two pins (nREXT/CEXT and nCEXT) for connecting the external timing components CEXT and REXT. Typical pulse width variation over temperature range is ±0.2%. The device may be triggered by either the positive or the negative edges of the input pulse. The duration and accuracy of the output pulse are determined by the external timing components CEXT and REXT. The output pulse width (T) is equal to 0.7 x REXT x CEXT. The linear design techniques guarantee precise control of the output pulse width. A low level at nCD terminates the output pulse immediately. Schmitt-trigger action in the trigger inputs makes the circuit highly tolerant to slower rise and fall times. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

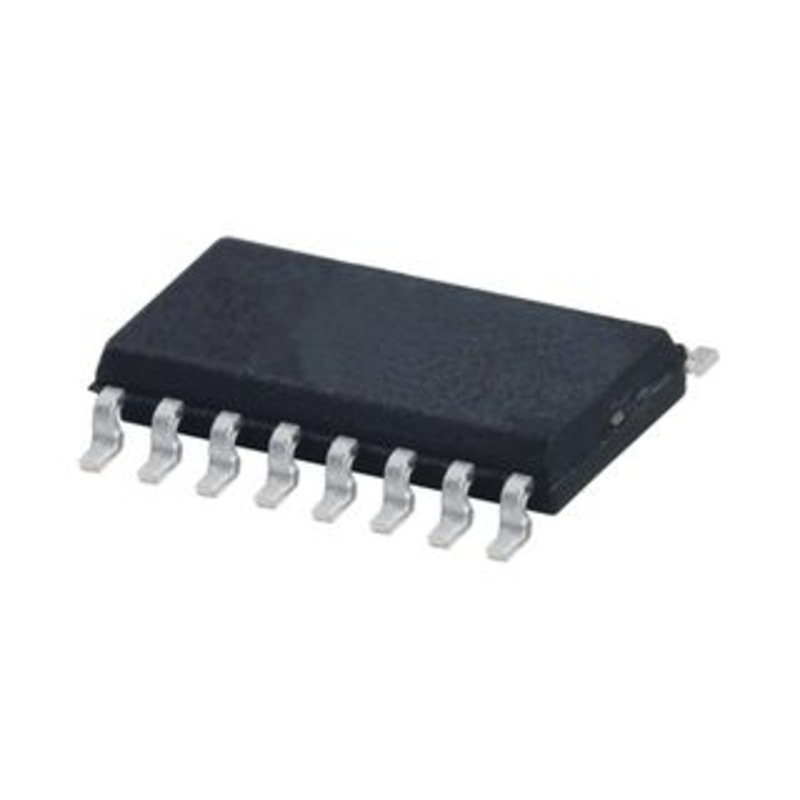

Note: Images for reference only.

Specifications:

Propagation Delay: 24ns
Supply Voltage Min: 2V
Operating Temperature Min: ‘-40°C
Logic Case Style: SOIC
No. of Pins: 16Pins
Logic IC Base Number: 744538
Max. Output Current (Amp): 5.2mA
Supply Voltage Max: 6V
Logic IC Family: 74HC
Logic Family / Base Number: 74HC4538
Multivibrator Type: Retriggerable Monostable

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x 74HC4538D,653-NEXPERIA-Monostable Multivibrator, 74HC4538, 24 ns, 5.2 mA, 2 V to 6 V, SOIC-16
