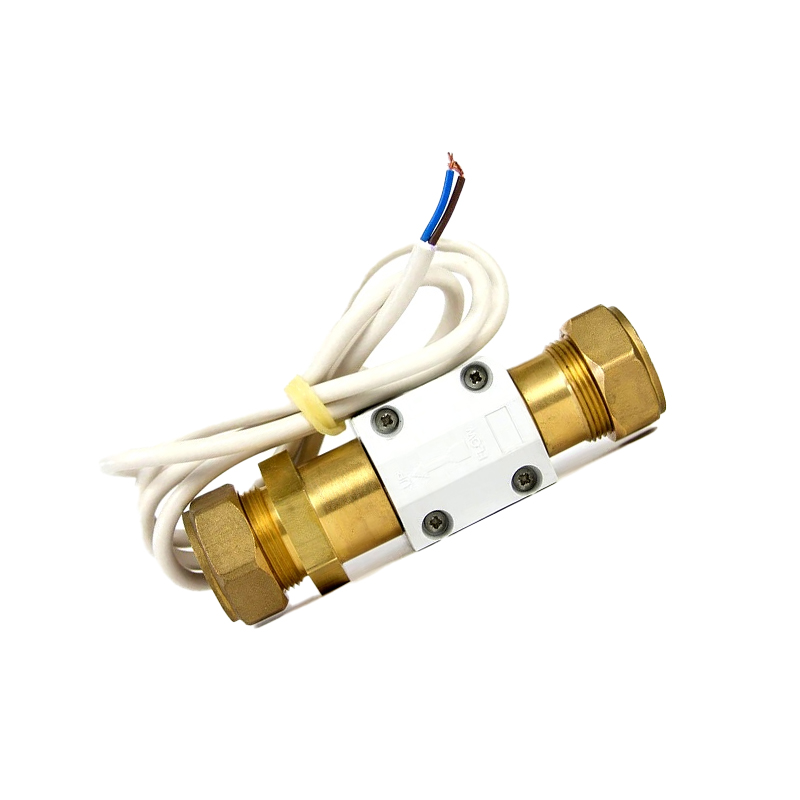

TE CONNECTIVITY Flow Switch, FS Series, 22 mm Port Size, 10 bar, SPST-NO, 250 Vac, 3 A
- Operating Voltage: 230V AC
- Operating Current: 3A
- Inlet/Outlet Diameter: 22 mm
- Metal part: Brass
- Brass: ABS
- Cable length: 1 meter
SKU: Not Found
Brand: Unknown Brand
Out of stock
₹11540.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The FS-05 is a liquid flow sensor. This flow switch is available in 22mm compression fitting, rugged brass housing material with low volts, and ac control circuitry switching at less than 1 L/min. Typical applications include mains water control, power shower, central heating systems, circulation pump protection, and cooling systems.
Applications:
- Mains water control
- Power shower
- Central heating systems
- Circulation pump protection
- Cooling systems
Features:
- Inlet/Outlet Diameter: 22 mm
- Metal part: Brass
- Plastic Part: Noryl
- Operates from a small head of water
- Vertical mounting
- Suitable for hot and cold potable water
- Reed Switch Reliability (UL File E153493)
- Meets UL 94-HB flammability rating
- Easy installation
- Maximum pressure of 10bar at 20
Package Includes:
1 x 250 VAC 3A TE Connectivity Flow Switch, FS-05 22 mm Port Size 10 bar SPST-NO
Technical Specifications
| Cable Length (m) | 1 meter |
|---|---|
| Current Rating (A) | 3 |
| Item Type | Flow Switch |
| Material | Brass |
| Mounting Type | Vertical mount type |
| Operating Current (A) | 3 |
| Operating Temperature (°C) | -30°C to 100°C |
| Operating Voltage (VAC) | 230 |
| Protection Class | IP65 |
| Shipping Dimensions | 13 × 12 × 4 cm |
| Shipping Weight | 0.4 kg |
| Voltage Rating (V) | 230VAC |
