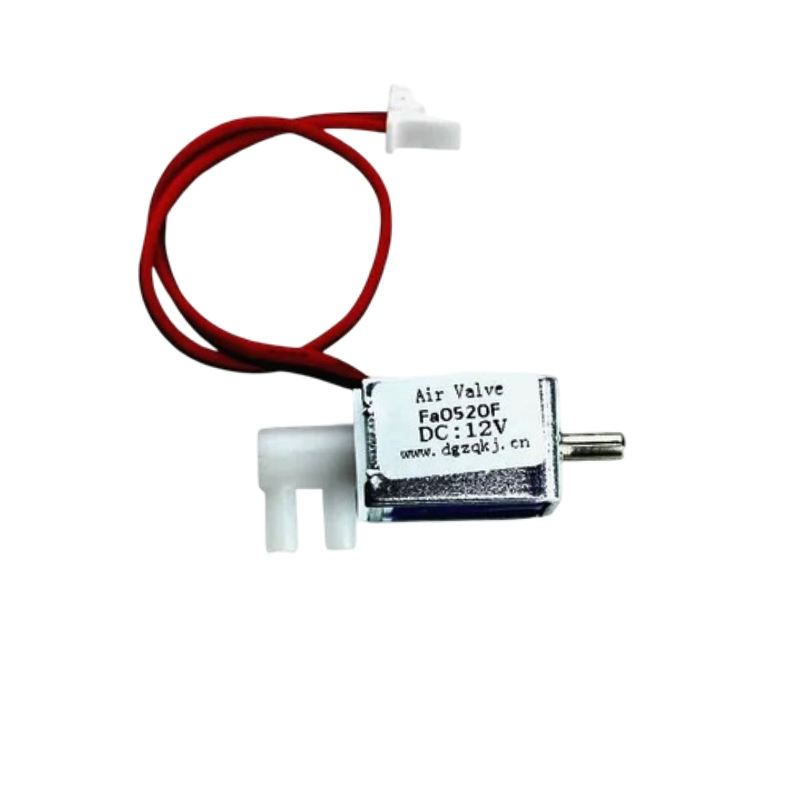

FA0520F 12V DC 2-position 3-way Small Mini Electric Solenoid Valve for Air / Gas
- Operating Voltage: 12V DC
- Port Size: 5.5mm (All 3 i/o are of the same size)
- Power: Pneumatic
- Pressure: Vacuum
- Operating Temperature (°C): -10 to 60
- Type: Air Valve
SKU: Not Found
Brand: Generic
Out of stock
₹219.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
You might be searching for a pump that operates on 12 V this could be the best choice for your project.
This is a tiny FA0520F 12V DC 2-position 3-way Small Mini Electric Solenoid Valve for Air / Gas Pump Gas Release Exhaust Discouraged Solenoid Exhaust Valve. Control gas flow in and out with this small Gas valve which operates on 12V dc.
We at robu.in have diversified ranges of pumps, Click here
Note:
Product Image may vary from actual product in terms of manufacturer and color according to the availability
How it Works:
- This valve act as closed (blocked flow) when not powered
- When you apply a 5V power supply to the input, the valve gets open and the flow-through valve get started
- Removing the supply voltage again blocks the flow
- This is a two-way valve which means it can flow in both directions
Working Modes:
- When powered on, 1 and 2 are connected, 3 and 1,2 are not connected
- When power is off, 1 and 3 are connected, 2 and 1, 3 are not connected
Package Includes:
1 x FA0520F 12V DC Solenoid Valve for Air / Gas
Technical Specifications
| Height (mm) | 15 |
|---|---|
| Inner Diameter (mm) | 1.6 |
| Item Type | Solenoid Valve |
| Length (mm) | 35 |
| Operating Temperature (°C) | -10 to 60 |
| Outer Diameter (mm) | 3 |
| Port Size | 5.5mm (All 3 i/o are of the same size) |
| Power Rating | Pneumatic |
| Shipping Dimensions | 5 × 4 × 2 cm |
| Shipping Weight | 0.022 kg |
| Voltage Rating (V) | 12VDC |
| Weight (g) | 20 |
| Width (mm) | 15 |
