Seeed Studio Grove BMA456 Step Counter Module
- Operating Voltage
- Acceleration Range ±2g, ±4g, ±8g, ±16g
- Fitness applications / Activity Tracking
- I2C Address 0x19(default) / 0x18(optional)
- High-performance angle measurements
- Gross Weight 9g
SKU: Not Found
Brand: Seeed Studio
Out of stock
₹1107.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description

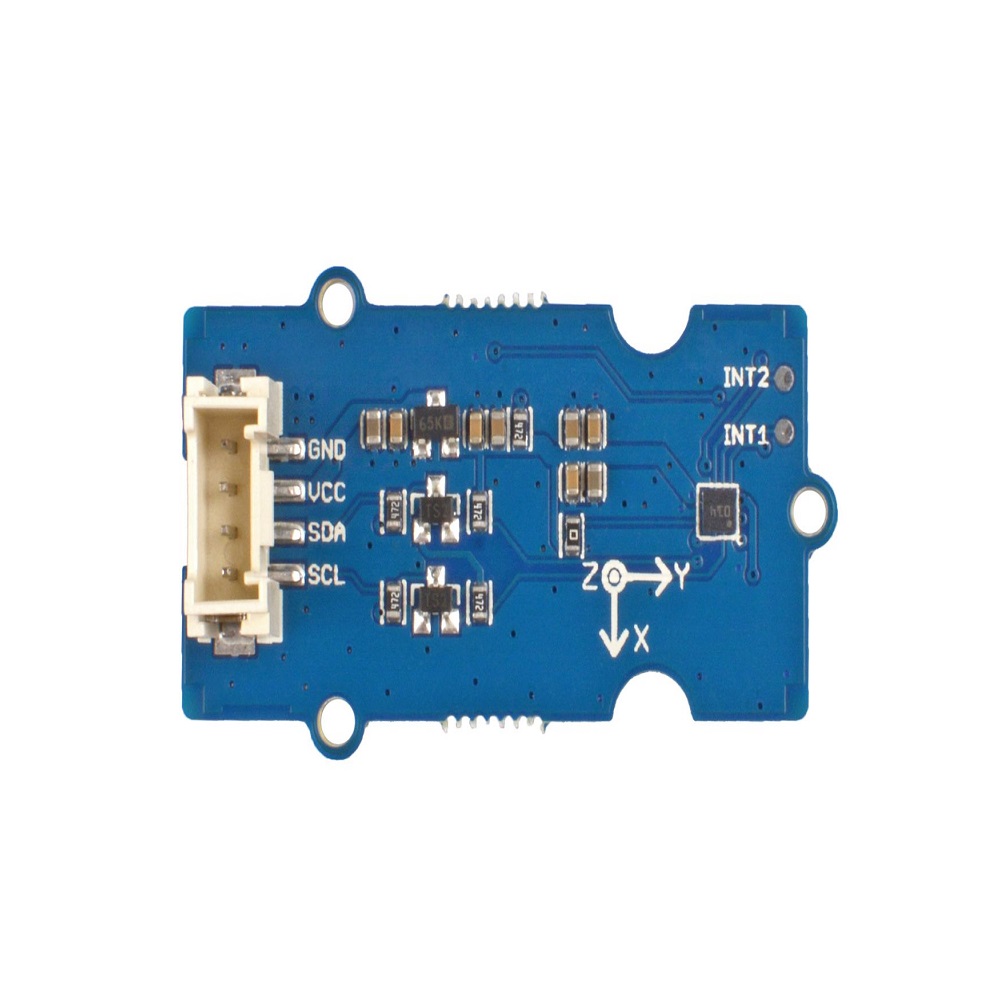

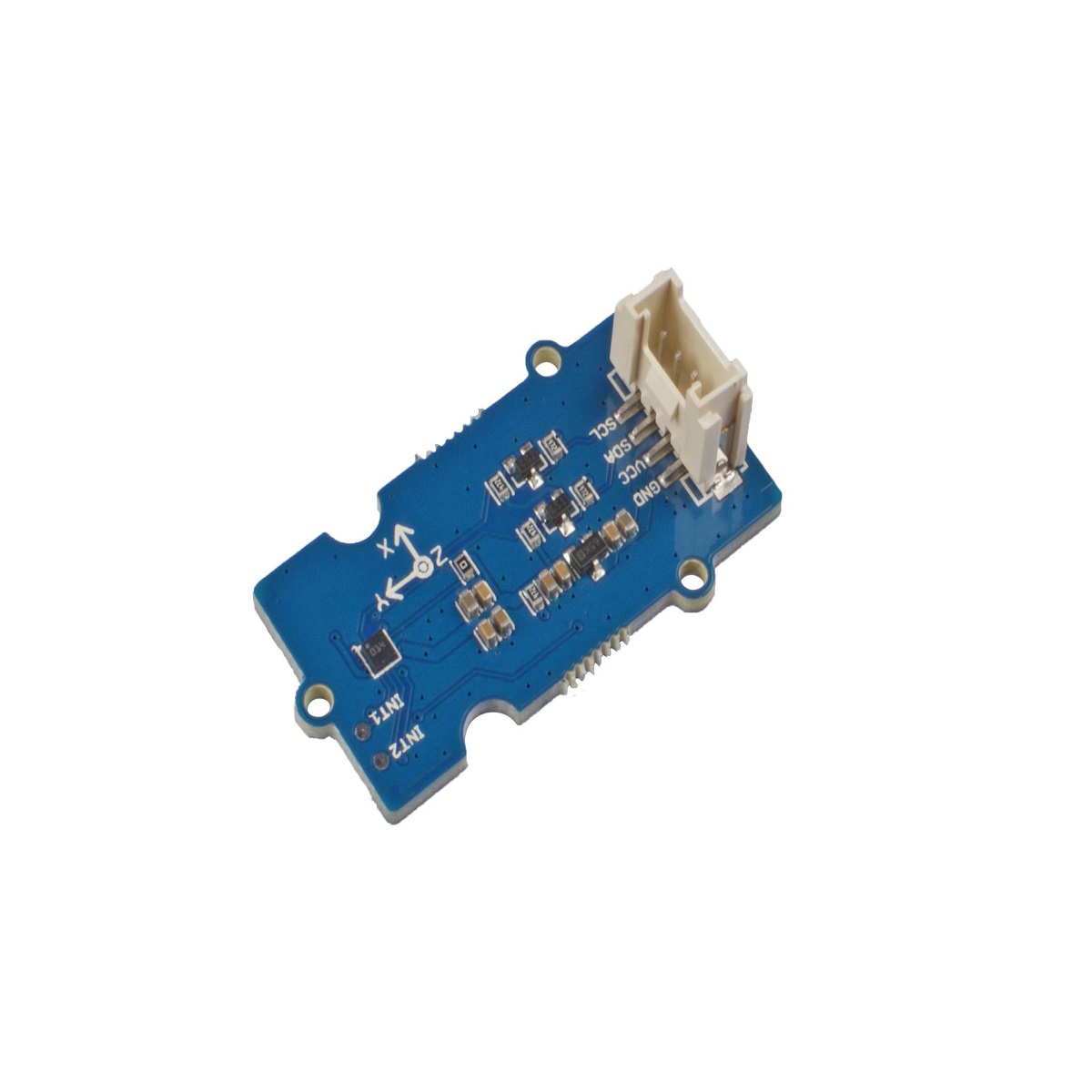

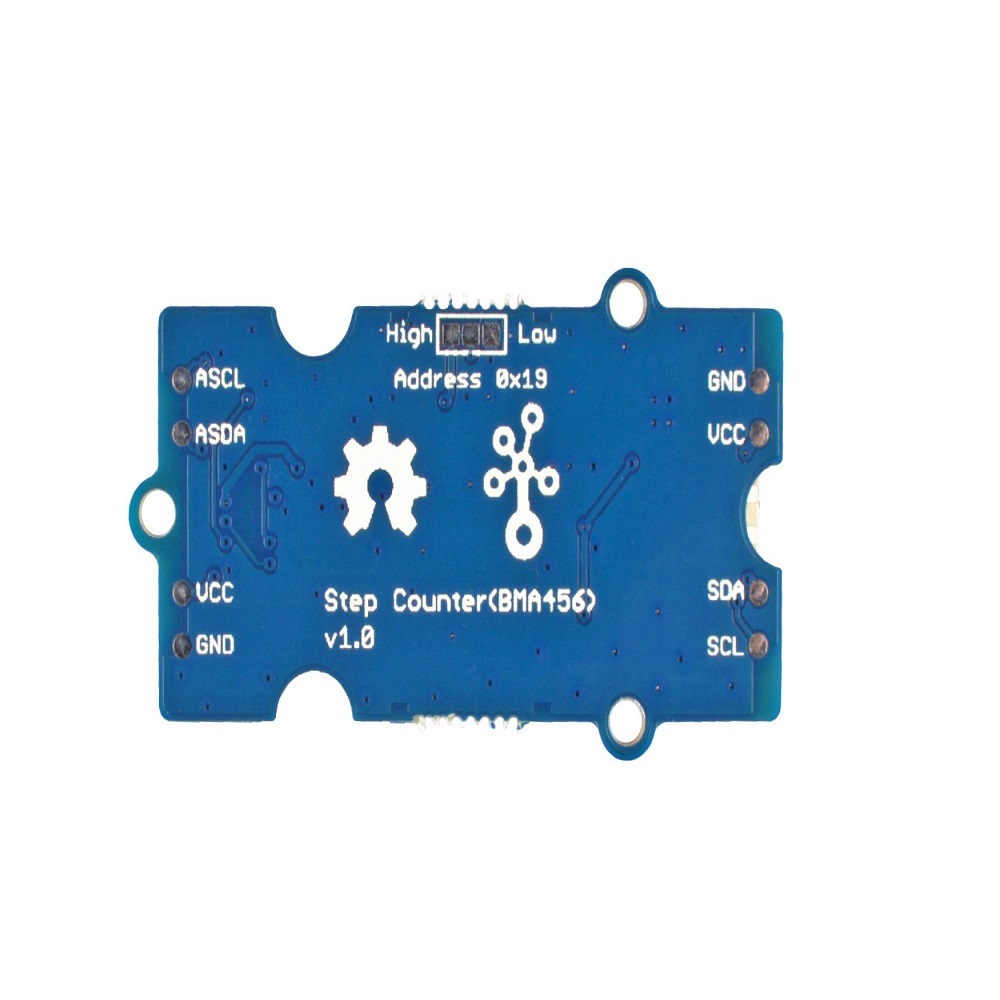

The Grove – Step Counter(BMA456) is based on BMA456, which is an extremely small, triaxial, low-g high-performance accelerations module. Thanks to the special algorithm of BOSCH, we made this module a portable pedometer.
Reliable, cost-effective, on top of that, it’s very easy to use, you can easily add this plug and play module on your wearable devices.
Getting Started with SeeedStudio Grove Step Counter(BMA456)
Pinout:
Features:
- On-chip FIFO
- Ultra-low-power
- On-chip interrupt
- Programable functionality
Application:
- Applications with height constrain
- Plug and Play Step-Counter solution with watermark functionality
- Fitness applications / Activity Tracking
- Power management for wearable applications
- Display on/off and profile switching
- User interface without hardware buttons
- E-compass tilt compensation and data synchronization
- High-performance angle measurements
Package Includes :

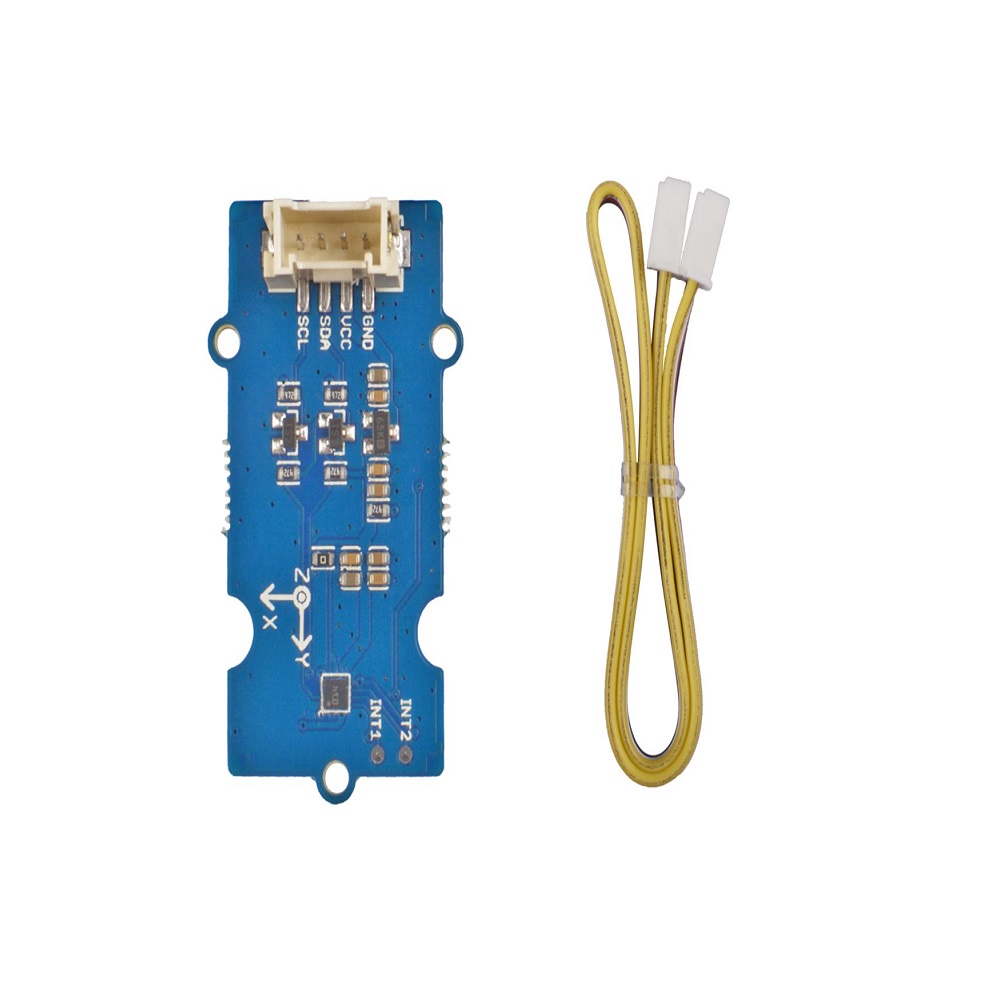

1 x SeeedStudio Grove Step Counter(BMA456)
Technical Specifications
| Dimensions (L x W x H) mm | L: 40mm W: 20mm H: 10mm |
|---|---|
| Interface Type | I2C |
| Operating Voltage (V) | 3.3 to 5 |
| Shipping Dimensions | 112 × 9 × 1 cm |
| Shipping Weight | 0.008 kg |
