LM7809L-TA3-T-UTC-1A Fixed 9V Positive electrode 35V TO-220 Voltage Regulators – Linear, Low Drop Out (LDO) Regulators ROHS
- MPN: LM7809L-TA3-T
- Brand: UTC
- MOQ Reel: 50/Full Tube
- Packaging Type: Bag
SKU: Not Found
Brand: UTC
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
LM7809L-TA3-T-UTC-1A Fixed 9V Positive electrode 35V TO-220 Voltage Regulators – Linear, Low Drop Out (LDO) Regulators ROHS.

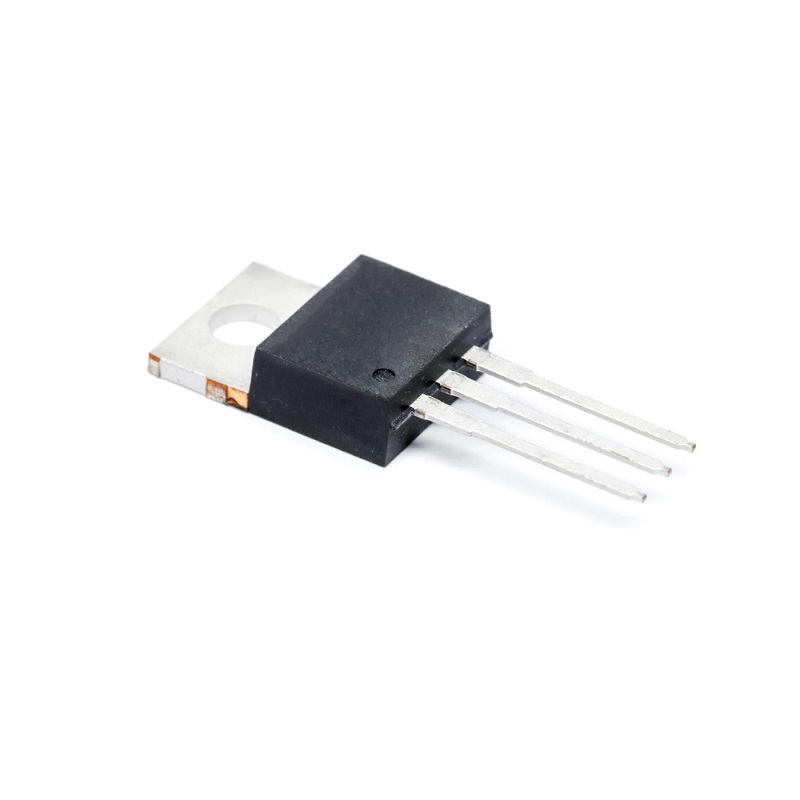

Note: Images for reference only.
Specifications:
Manufacturer: UTC
Package: TO-220
Power Supply Rejection Ratio (PSRR): 72dB@(120Hz)
Output Current: 1A
standby current: 8mA
Voltage Dropout: 2V@(1A)
Output Type: Fixed
Output Voltage: 9V
Output Configuration: Positive
Noise: 58uV
Number of Outputs: 1
Operating Temperature: -20℃~+125℃@(Tj)
Voltage – Supply: 35V
Features: Over Current Protection;Over Temperature Protection
For detailed specifications, please refer to datasheet in Attachments.
Package Includes:
1 x LM7809L-TA3-T-UTC-1A Fixed 9V Positive electrode 35V TO-220 Voltage Regulators – Linear, Low Drop Out (LDO) Regulators ROHS
Technical Specifications
| Case/Package | TO 220 |
|---|---|
| Manufacturer | UTC |
| No. of Pins | 3 |
| Output Current (A) | 1 |
| Output Type | Fixed |
