Solenoids and Electromagnets

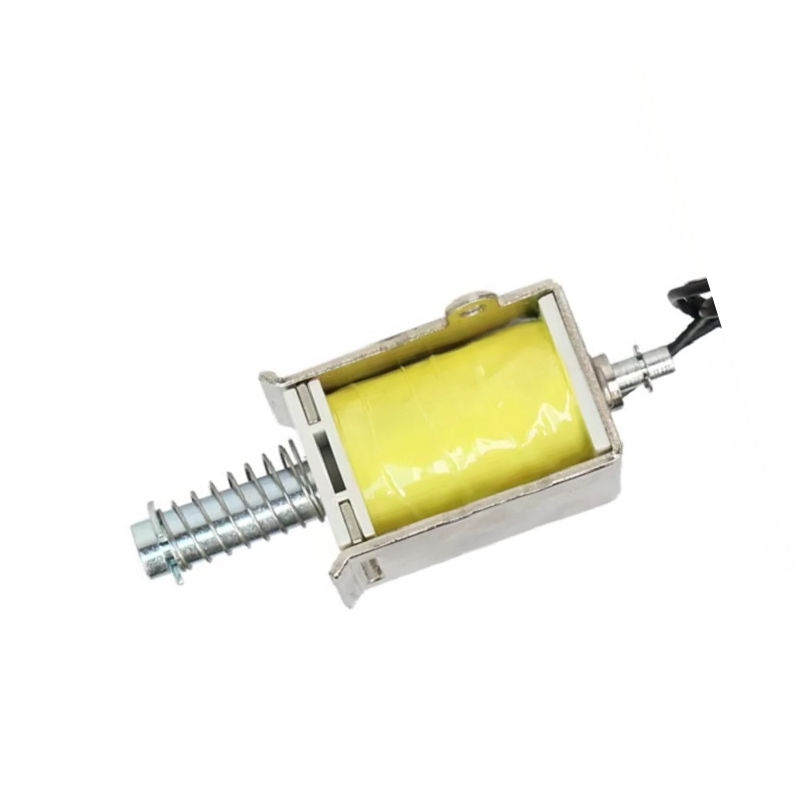

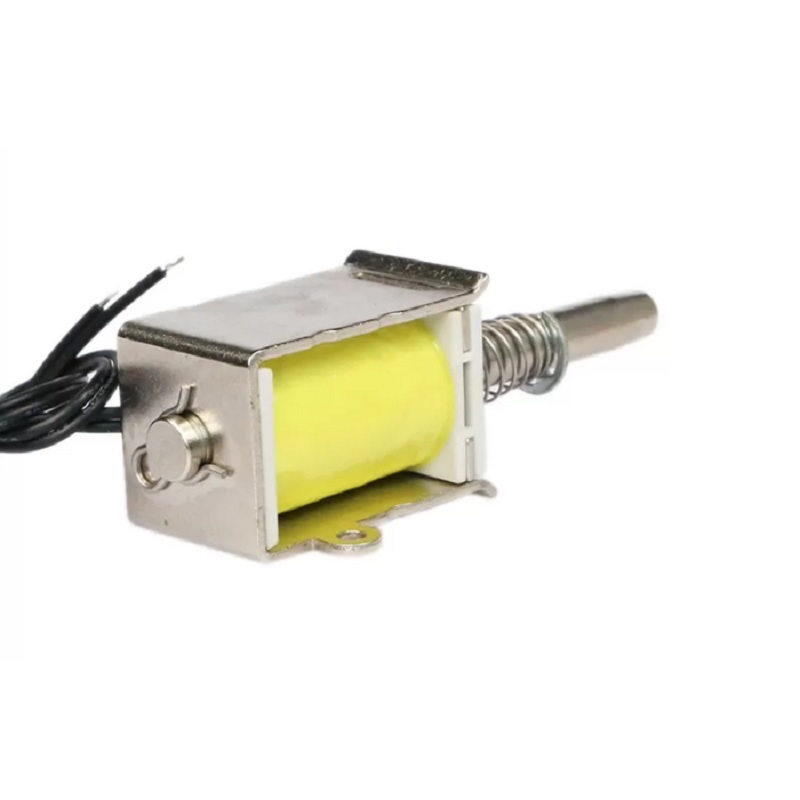

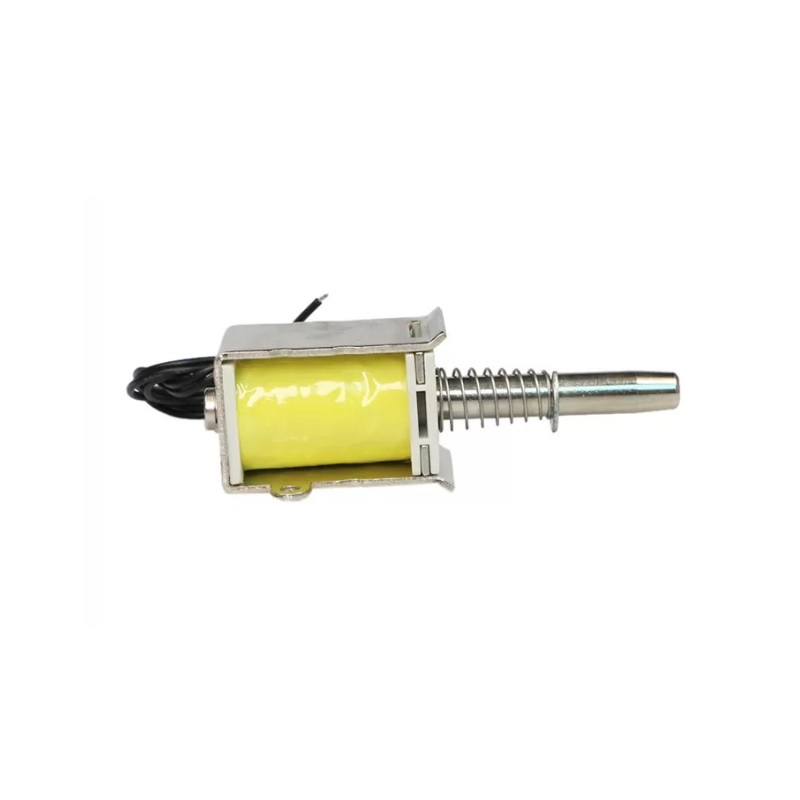

24V 0.5 N Φ8×6 mm Mini Electromagnet AJK-T0902
- Input Voltage: 24 VDC
- Shaft Type: Detachable
- Max Stroke: 6mm
- Hold Force: 0.5 N
SKU: Not Found
Brand: Generic
Out of stock
₹609.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
24.0V DC Mini Electromagnet >0.5N Φ8.0mm 6mm is DC mini electromagnet 0.5N, widely used in massage products and household appliances.
Typical Applications:
- Massage chair
- Induction stove
- Disinfection cabinet
- Pet door
Explore and select from all variants that matches to your requirements(Click on name):
| SKU | Mini Electromagnet | Force (N) | Diameter of magnet(mm) |
| 1710112 | 24V Mini Electromagnet AJK-T0901 | 0.5 | 4×6 |
| 1710114 | 24V Mini Electromagnet AJK-T0902 | 0.5 | 8×6 |
| 1710125 | 12V Mini Electromagnet AJK-T0502 | 2.5 | 4.85×3 |
Features:
- Stable performance,
- High efficiency and
- Extra long life.
- ISO9001, CB, FDA, PAHs, REACH, RoHS compliant.
Specifications:
- Mode: Pull
- Input Voltage: 24 VDC
- Shaft Type: Detachable
- Max Stroke: 6mm
- Hold Force: 0.5 N
Note: For more technical details, go through the datasheet in the attachment
Package Includes:
1 x 24V 0.5 N Φ8×6 mm Mini Electromagnet AJK-T0902
Technical Specifications
| Electromagnet Force (Kg) | 0.05 |
|---|---|
| Item Type | DC Mini Electromagnet |
| Shipping Dimensions | 9 × 6 × 4 cm |
| Shipping Weight | 0.08 kg |
| Voltage Rating (V) | 24VDC |
