Mux & Demux IC

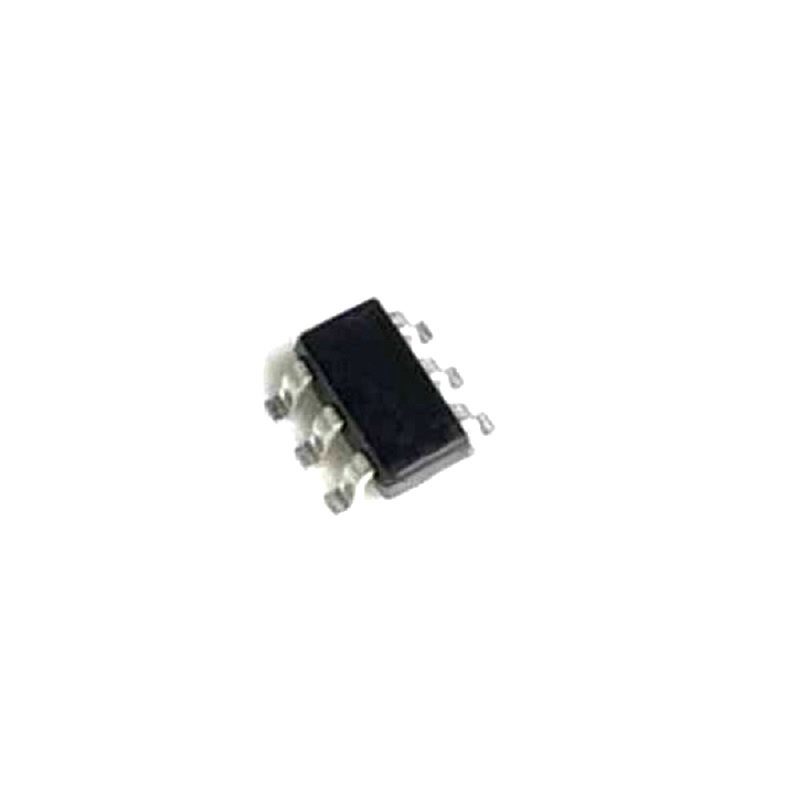

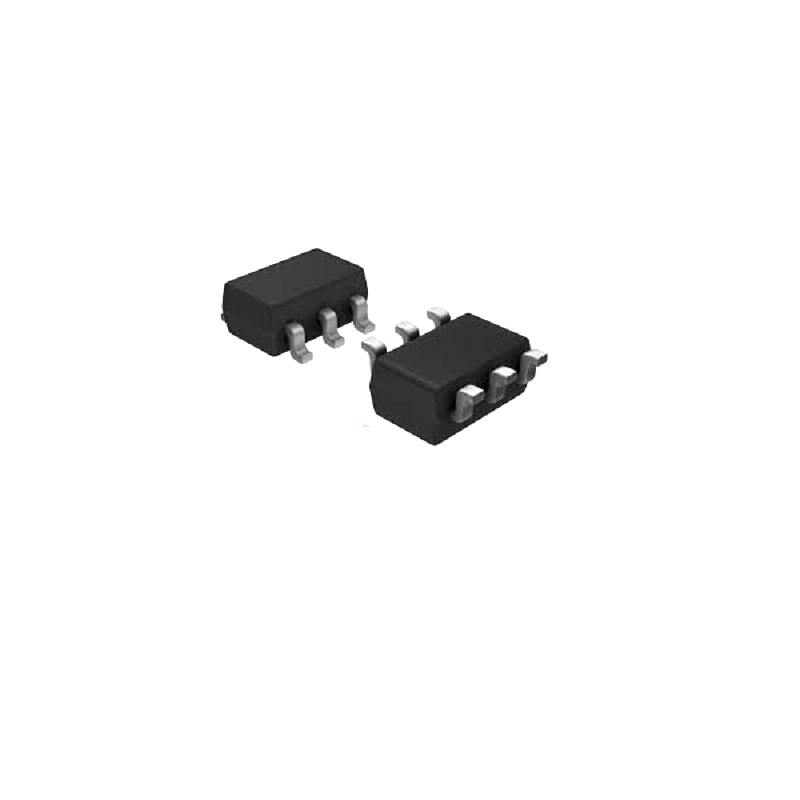

NC7SB3157P6X – Low Voltage SPDT Analog Switch or 2:1 Multiplexer/Demultiplexer Bus Switch 6-Pin SC-70 – ON Semiconductor
- IC Name: NC7SB3157P6X
- Package/Case: SMD-6
- Max Supply Current: 1 µA
- Power Dissipation: 180 mW
- Operating Temperature Range: -40°C to +85°C
SKU: Not Found
Brand: Generic
Out of stock
₹49.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 15 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The NC7SB3157P6X is a low-voltage Single Pole Double Throw (SPDT) analog switch or 2:1 multiplexer/demultiplexer bus switch manufactured by onsemi. It is housed in a compact 6-pin SC-70 package, ideal for applications where space is limited. This analog switch features a single channel configuration and has a maximum on resistance of 7 ohms, ensuring efficient signal control.
Note:
- Product Images are shown for illustrative purposes only and may differ from the actual product.
- For Technical Specifications about the IC go through the Datasheet in the Attachment section.
Features :
- Low On-Resistance: 7 ohms
- Supply Voltage Range: 1.65V and 5.5V
- Max Supply Current: 1 µA
- Power Dissipation: 180 mW
- Operating Temperature Range: -40°C to +85°C.
Package Includes:
1 x NC7SB3157P6X – Low Voltage SPDT Analog Switch or 2:1 Multiplexer/Demultiplexer Bus Switch IC SMD-6 Package
Technical Specifications
| Manufacturer | ONSEMI |
|---|---|
| On State Resistance | 7 ohms |
| Operating Temperature (°C) | -40°C to +85°C |
| Power Dissipation | 180 mW |
| Shipping Dimensions | 1 × 1 × 1 cm |
| Shipping Weight | 0.001 kg |
| Supply Current (Max) | 1 µA |
| Supply Voltage | 1.65V and 5.5V |
