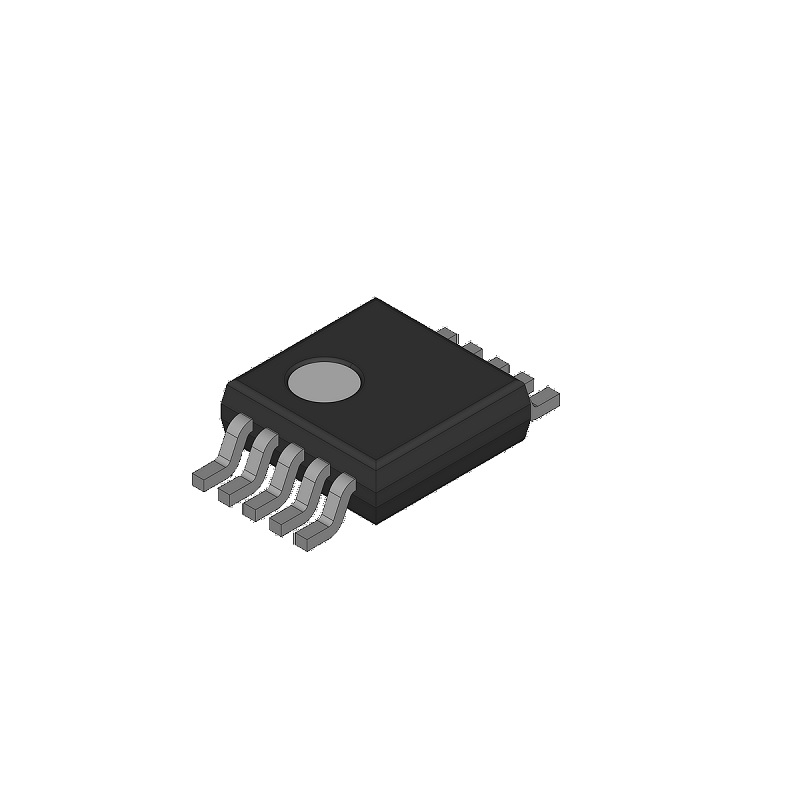

ADS1115IDGST – 16-Bit 860SPS 4-Ch Delta-Sigma ADC PGA Oscillator Vref Comparator I2C 10-Pin VSSOP (Texas Instruments)
- Wide Supply Range: 2.0 V to 5.5 V
- Low Current Consumption: 150 μA
- Programmable Data Rate:8 SPS to 860 SPS
- 2C Interface: Four Pin-Selectable Addresses
SKU: Not Found
Brand: Texas Instruments
Out of stock
₹216.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 14 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The ADS1115 device (ADS111x) is a precision, low-power, 16-bit, I2Ccompatible, analog-to-digital converters (ADCs) offered in an ultra-small, leadless, X2QFN-10 package, and a VSSOP-10 package. The ADS111x devices incorporate a low-drift voltage reference and an oscillator. The ADS1114 and ADS1115 also incorporate a programmable gain amplifier (PGA) and a digital comparator. These features, along with a wide operating supply range, make the ADS111x well suited for power- and space-constrained, sensor measurement applications.
Note : 1A B0GI on IC functionality is same.
Application:
- Portable Instrumentation
- Battery Voltage and Current Monitoring
- Temperature Measurement Systems
- Consumer Electronics
- Factory Automation and Process Control
Features:
- Single-Cycle Settling
- Internal Low-Drift Voltage Reference
- Internal Oscillator
- Programmable Comparator
Features:
1 x ADS1115IDGST-16-Bit 860SPS 4-Ch Delta-Sigma ADC PGA Oscillator Vref Comparator I2C 10-Pin VSSOP
Technical Specifications
| Additional Specs. | Power Dissipation(uW): 900 |
|---|---|
| Height (mm) | 1 |
| Length (mm) | 3 |
| Manufacturer | Texas Instruments |
| Polarity | Bipolar |
| Shipping Dimensions | 1 × 1 × 1 cm |
| Shipping Weight | 0.001 kg |
| Termination Style | SMD/SMT |
| Weight (g) | 1.1 |
| Width (mm) | 3 |
