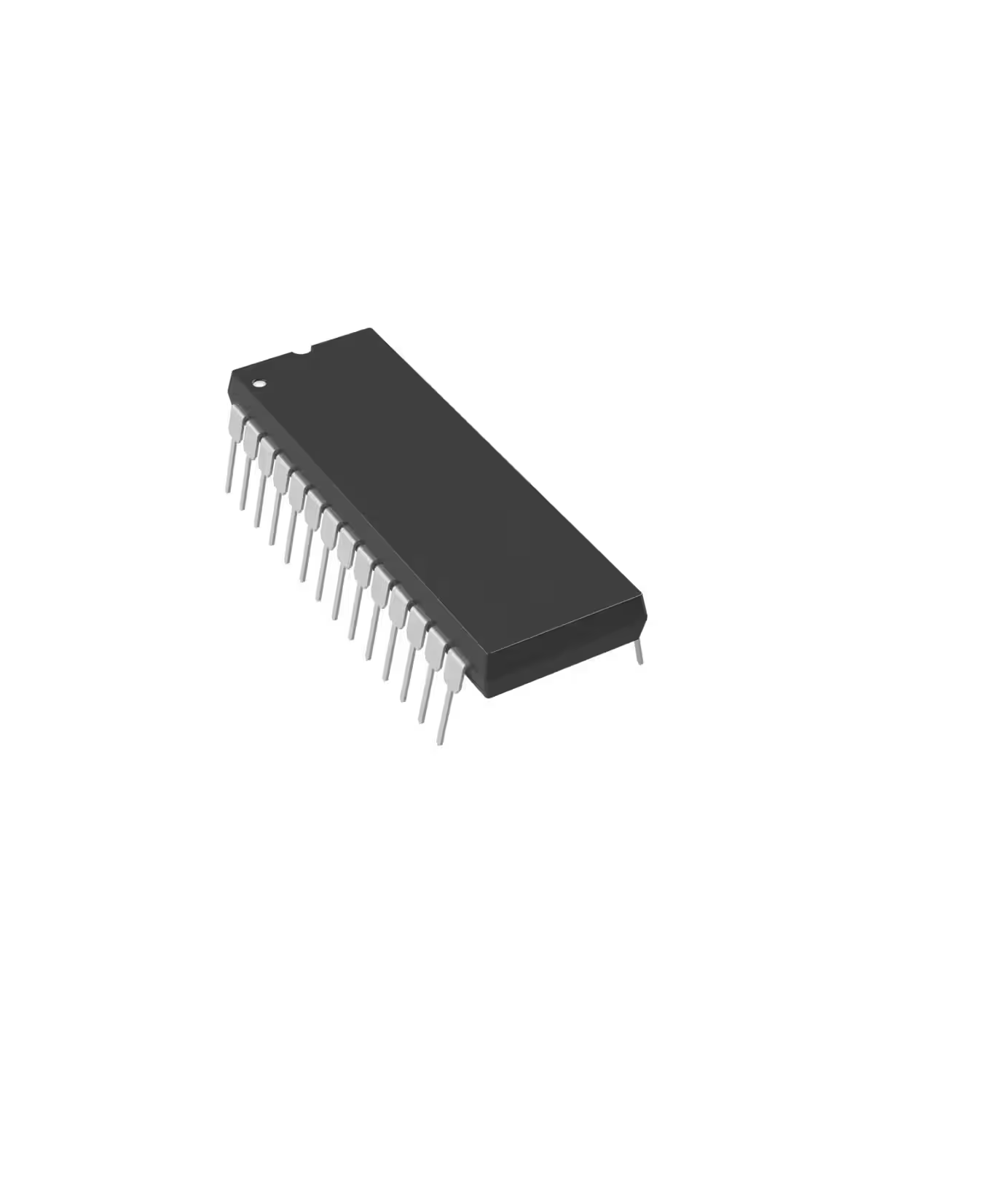

The MCP23S17-E/SP  28-bit Input/Output expander from Microchip Technology, designed to extend the I/O capabilities of microcontrollers through an SPI interface. This device is ideal for applications requiring additional I/O without using extra pins on the host microcontroller. The MCP23S17 features 16 I/O pins that can be individually configured as input or output. It also offers built-in interrupt output for efficient event-driven programming, helping to reduce processor workload. The device operates over a wide supply voltage range from 1.8V to 5.5V.

Note:

1. Product Images are shown for illustrative purposes only and may differ from the actual product.
2. For Technical Specifications about the IC go through the Datasheet in the Attachment section.


Features :

1. 16 I/O Pins: Configurable as input or output.
2. SPI Interface: Serial communication for fast data transfer.
3. Wide Supply Voltage Range: Operates from 1.8V to 5.5V.
4. Clock Frequency: Supports up to 10 MHz.
5. Temperature Range: -40°C to +125°C

Package Includes:

1 x MCP23S17-E/SP 28-Bit Input/Output Expander with I2C Interface IC DIP-28 Package
