M5 Stack ATOM Lite ESP32 Development Kit
- ESP32-based
- RGB LED
- Programmable button
- Built-in Infra-red
- Extendable Pins & Holes
SKU: Not Found
Brand: M5 STACK
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description

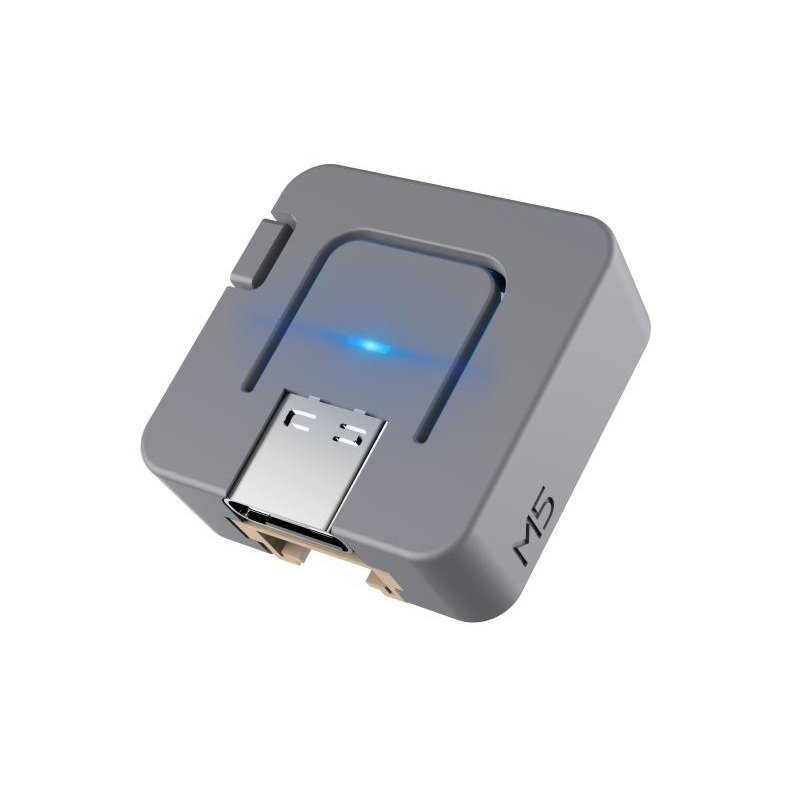

This is M5 Stack ATOM Lite ESP32 Development Kit.

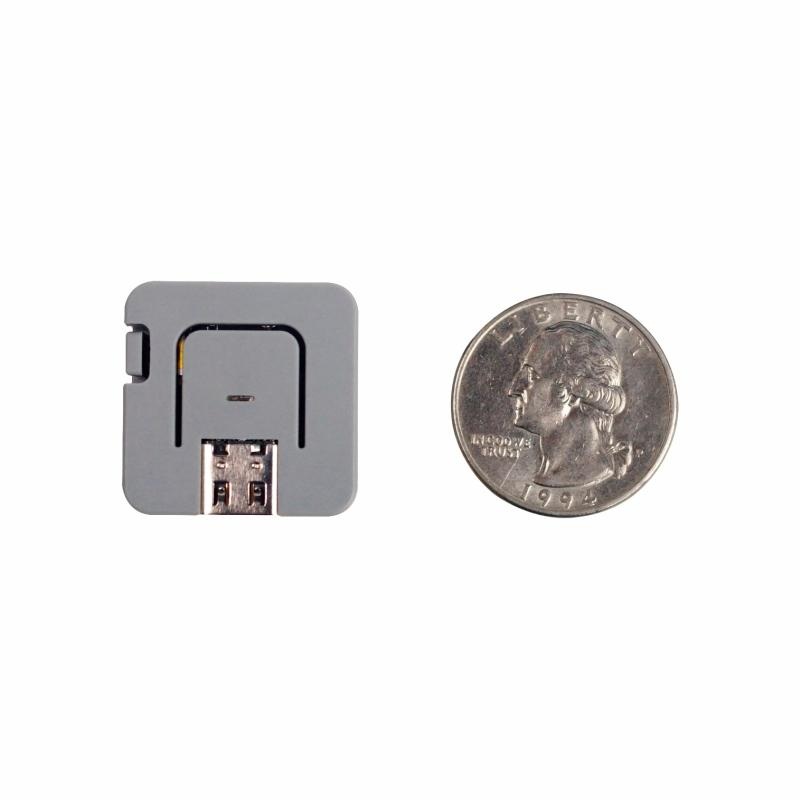

Atom Lite, which has a size of only 24*24mm, is a very compact development board in the M5Stack development kit series. It provides more GPIOs for user customization which is very suitable for embedded smart home devices and in making smart toys.
The main control adopts the ESP32-PICO chip which comes integrated with Wi-Fi and Bluetooth technologies and has a 4MB of integrated SPI flash memory. Atom Lite board provides an Infra-Red LED, an RGB LED, buttons, and a YH2.0 interface. In addition, it can connect to external sensors and actuators through 6 GPIOs. The on-board Type-C USB interface enables rapid program upload and execution.
Applications:
- Internet of things terminal controller
- IoT node
- Wearable peripherals
Useful Link:
https://docs.m5stack.com/en/core/ATOM%20Lite
Features:
- ESP32-based
- RGB LED
- Programmable button
- Built-in Infra-red
- Extendable Pins & Holes
- Program Platform: Arduino, UIFlow
Package Includes:

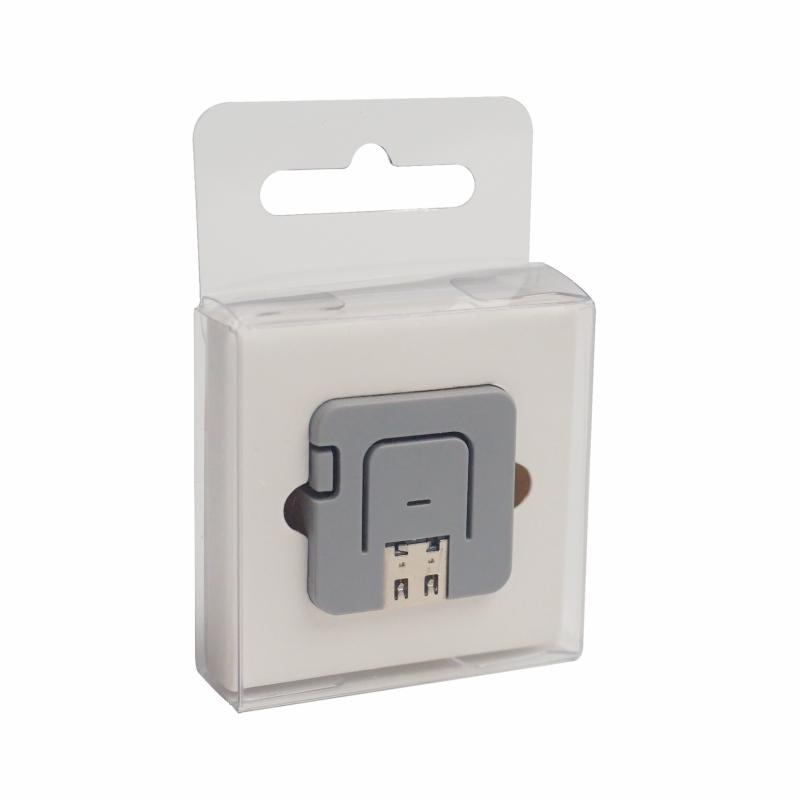

1 x ATOM Lite ESP32 Development Kit

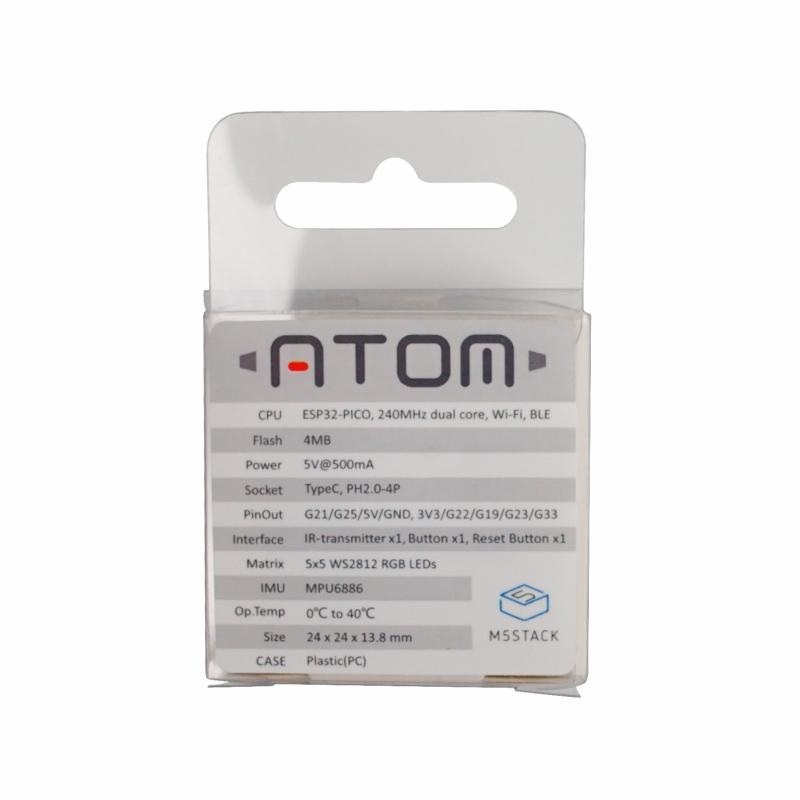

Technical Specifications
| Flash Memory | 4MB |
|---|---|
| Height (mm) | 10 |
| Interface | GROVE(I2C+I/0+UART) x 1, TypeC x 1 |
| Item Type | M5 Stack |
| Length (mm) | 24 |
| Memory | 4 MB Flash |
| Operating Current (A) | 0.5 |
| Operating Temperature (°C) | 0 to 40 |
| Operating Voltage (VDC) | 5 |
| PIN Port | G19, G21，G22，G23，G25, G33 |
| Processor | ESP32 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth |
| Processor Type | ESP32 240MHz dual core |
| RGB LED | WS2812B x 1 |
| Shipping Dimensions | 4 × 4 × 2 cm |
| Shipping Weight | 0.016 kg |
| Weight (g) | 12 |
| Width (mm) | 24 |
