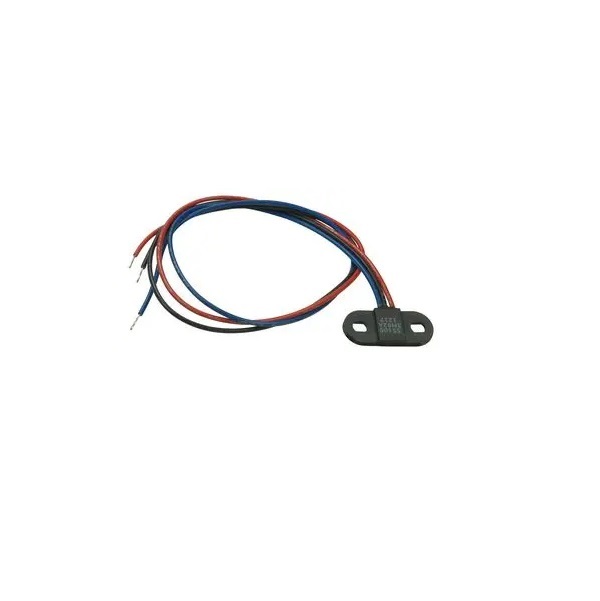

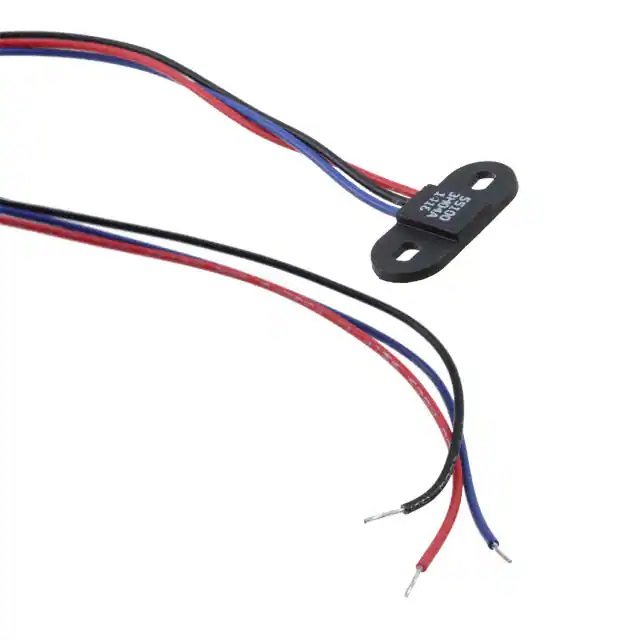

LITTELFUSE Hall Effect Proximity Sensor, Flange Mount, 55100 Series, 3 Wire, 130 G, 3.8 to 24 Vdc
- Product: Hall Effect Proximity Sensor, Flange Mount, 55100 Series
- Supply Voltage: 2.7 to 24 Vdc
- Output High Voltage: Sinking Output
- Output Low Voltage: 0.4 @ 20mA
- Output Current: 25 mA
- Reverse/over-voltage protection
- Built-in temperature compensation
SKU: Not Found
Brand: Generic
Out of stock
₹1440.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The 55100 is a miniature flange mounting hall effect sensor 25.5mm (1.004”) x 11.00m (0.433”) and only 3.00mm (0.118”) high with a choice of digital or programmable analog outputs. It is available as three-wire (voltage output) or two-wire (current output) versions. It’s case design enables screw or adhesive mounting and is capable of switching up to 24 Vdc and 20mA. It comes with a range of sensitivity and cable length options
Features:
- The magnetically operated position sensor
- Digital switch 3 – wire (voltage output)
- Reverse/over-voltage protection
- Built-in temperature compensation
Package Includes:
1 x Hall Effect Proximity Sensor, Flange Mount, 55100 Series
Technical Specifications
| Current Consumption (mA) | 1.1 to 2.4 mA |
|---|---|
| Height (mm) | 4 |
| Length (mm) | 25 |
| Model | Proximity Sensor |
| Operating Temperature (°C) | -40 to +100 Degree C. |
| Output Current (mA) | 25 mA |
| Shipping Dimensions | 9 × 7 × 1 cm |
| Shipping Weight | 0.004 kg |
| Supply Voltage (VDC) | 2.7 to 24v Dc |
| Switching Speed | 12 kHz |
| Weight (g) | 4 |
| Width (mm) | 10 |
