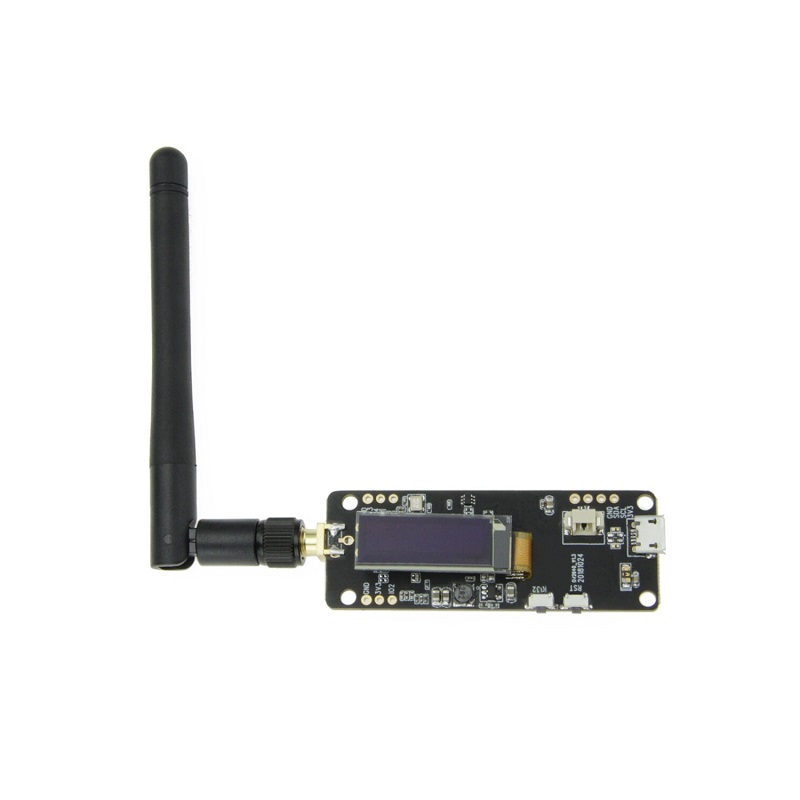

LILYGO T-Journal ESP32 OLED Normal Camera Module Development Board With OV2640 SMA Wifi 3dbi Antenna
- Material: Metal
- FLASH: QSPI flash/SRAM, up to 4 x 16 MB
- SRAM: 520 kB SRAM
- KEY: reset，IO32
- Display: 0.91 SSD1306
- Power Indicator Lamp: Red
- USB to TTL: CP2104
- Camera: OV2640 2Megapixel
- High sensitivity and low light operation standard SCCB interface.
SKU: Not Found
Brand: LILYGO
Out of stock
₹1607.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The LILYGO T-Journal ESP32 OLED Normal Camera Module Development Board With OV2640 SMA Wifi 3dbi Antenna provides you with a way to use to receive data from a remote location，and it is compatible with all boards which have the same form factor (and pinout) as a standard Arduino Board. This Module can also be applied to DIY image transfer also data transfer, making GPS trackers, or other applications like Smart home, etc.
Features:
- High sensitivity and low light operation standard SCCB interface.
- supports image sizes: UXGA, SXGA, SVGA.
- Communication distance is up to 300m.

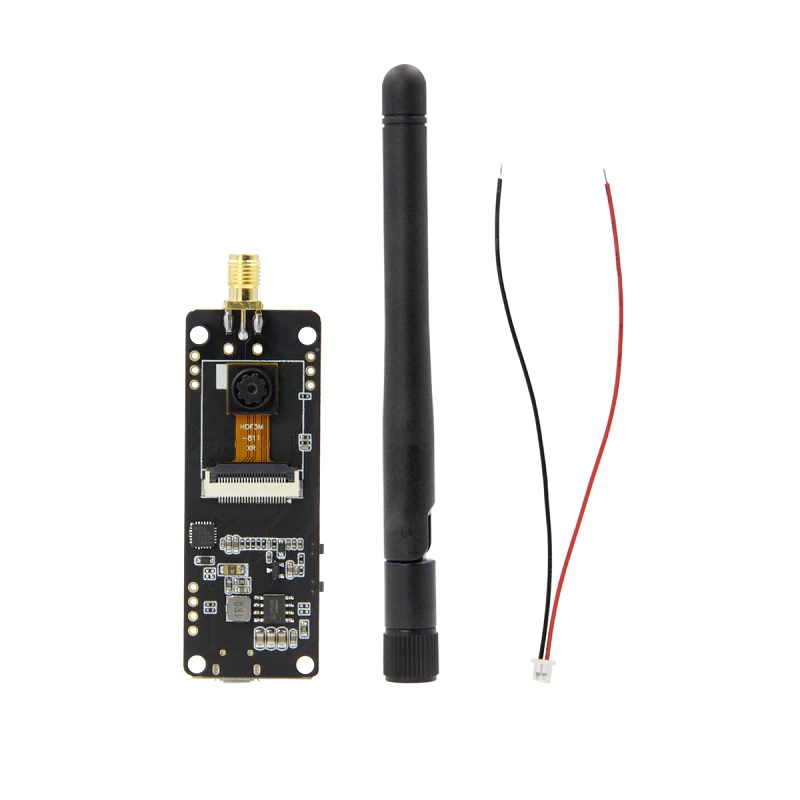

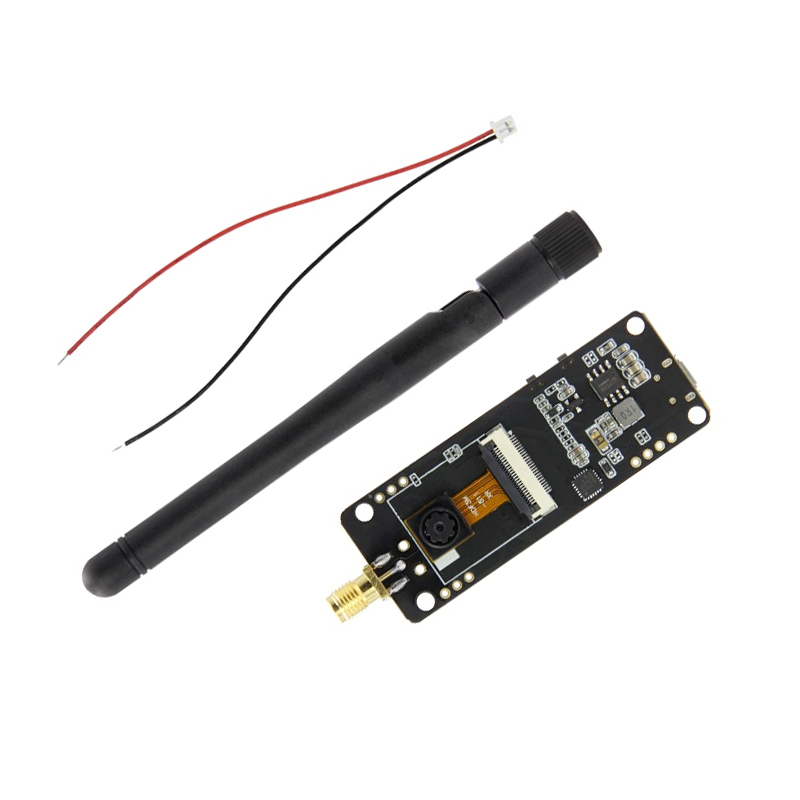

Package includes:
1 x LILYGO T-Journal ESP32 OLED Normal Camera Module Development Board With OV2640 SMA Wifi 3dbi Antenna
Technical Specifications
| Battery required | 3.7V lithium battery |
|---|---|
| Charging Current | 0.041666667 |
| Chipset | ESPRESSIF-ESP32-PCIO-D4 240MHz Xtensa® single-/dual-core 32-bit LX6 |
| Communication Distance | 300 m |
| Frequency | 2.4~2.5GHz |
| Item Type | Camera Module, Development Board |
| Length (mm) | 64 |
| On-board Clock Frequency | 40MHz |
| Operating Temperature (°C) | 40 to 85 |
| Operating Voltage | 2.3-3.6V |
| Operating Voltage (V) | 3.3 |
| Power Supply | USB 5V/1A |
| Resolution | 2MP (1600 x 1200) |
| Shipping Dimensions | 13 × 9 × 1 cm |
| Shipping Weight | 0.019 kg |
| Transmit Power (dBm) | 22dBm |
| USB to TTL | CP2104 |
| Weight (g) | 12.5 |
| Width (mm) | 24 |
| Working Current | 160 mA |
