The L78L05ABZ is a three-terminal positive Voltage Regulator employ internal current limiting and thermal shutdown, making them essentially indestructible. They are intended as fixed voltage regulators in a wide range of applications including local or on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L78L series used as Zener diode/resistor combination replacement, offers e improvement along with lower quiescent current and lower noise.

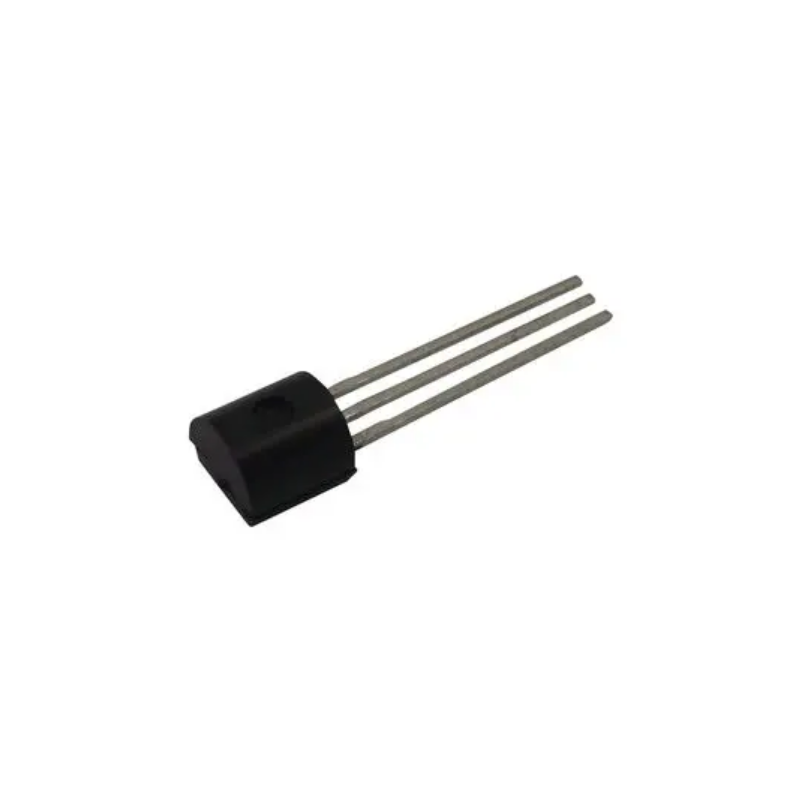

Note : Actual product may vary in terms of image.

Specifications:

No. of Outputs: 1Outputs

Package Includes:

1 x L78L05ABZ-STMICROELECTRONICS-L78L05ABZ-Linear Voltage Regulator, 7805, Fixed, LDO, 10V To 30V In, 5V And 0.1A Out, TO-92-3
