The HIP4082IBZ is a medium frequency, medium voltage half-bridge N-channel MOSFET Driver IC. Specifically targeted for PWM motor control and UPS applications, bridge based design is made simple and flexible with the half-bridge driver. With operation up to 80V, the device is best suited to applications of moderate power levels. It has a flexible input protocol for driving every possible switch combination except those which would cause a shoot-through condition. It reduced drive current allows smaller packaging and it has a much wider range of programmable dead times (0.1 to 4.5ms) making it ideal for switching frequencies up to 200kHz. It does not contain an internal charge pump, but does incorporate non-latching level-shift translation control of the upper drive circuits.

Specifications:

IC Case / Package: SOIC
Operating Temperature Min: -55°C
No. of Pins: 16Pins
Product Range: Multicomp Pro RJ45 Adapter
IC Mounting: Surface Mount
No. of Channels: 4Channels
Operating Temperature Max: 125°C
Supply Voltage Min: 8.5V
Supply Voltage Max: 15V
Input Delay: 40ns

Package Includes:

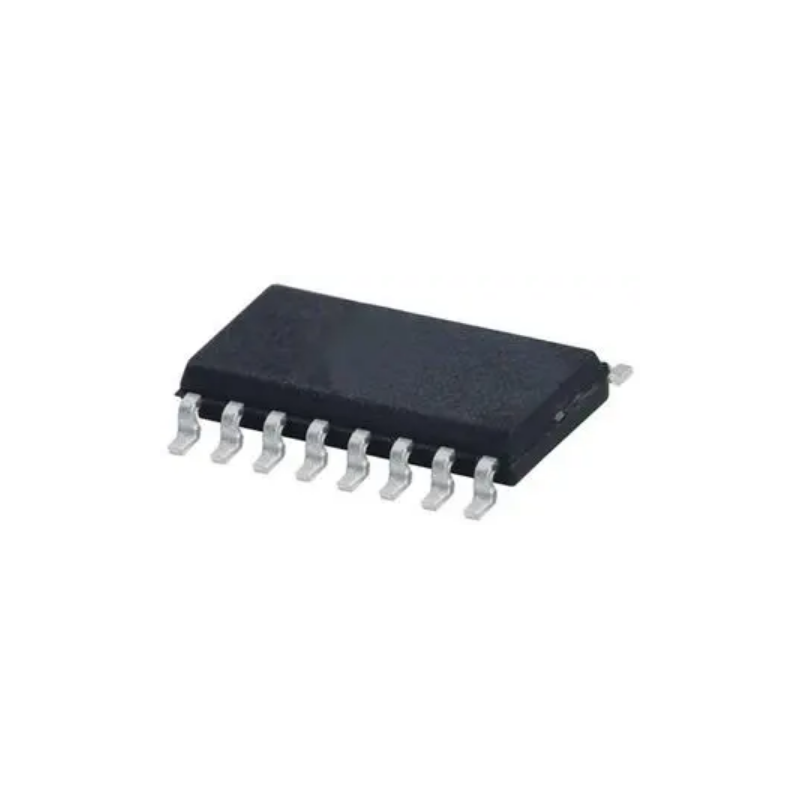

1 x HIP4082IBZ-RENESAS-HIP4082IBZ-MOSFET Driver IC, Full Bridge, 8.5V-15V Supply, 1.4A Out, 25ns Delay, SOIC-16
