Brushed / Brushless DC motor Driver

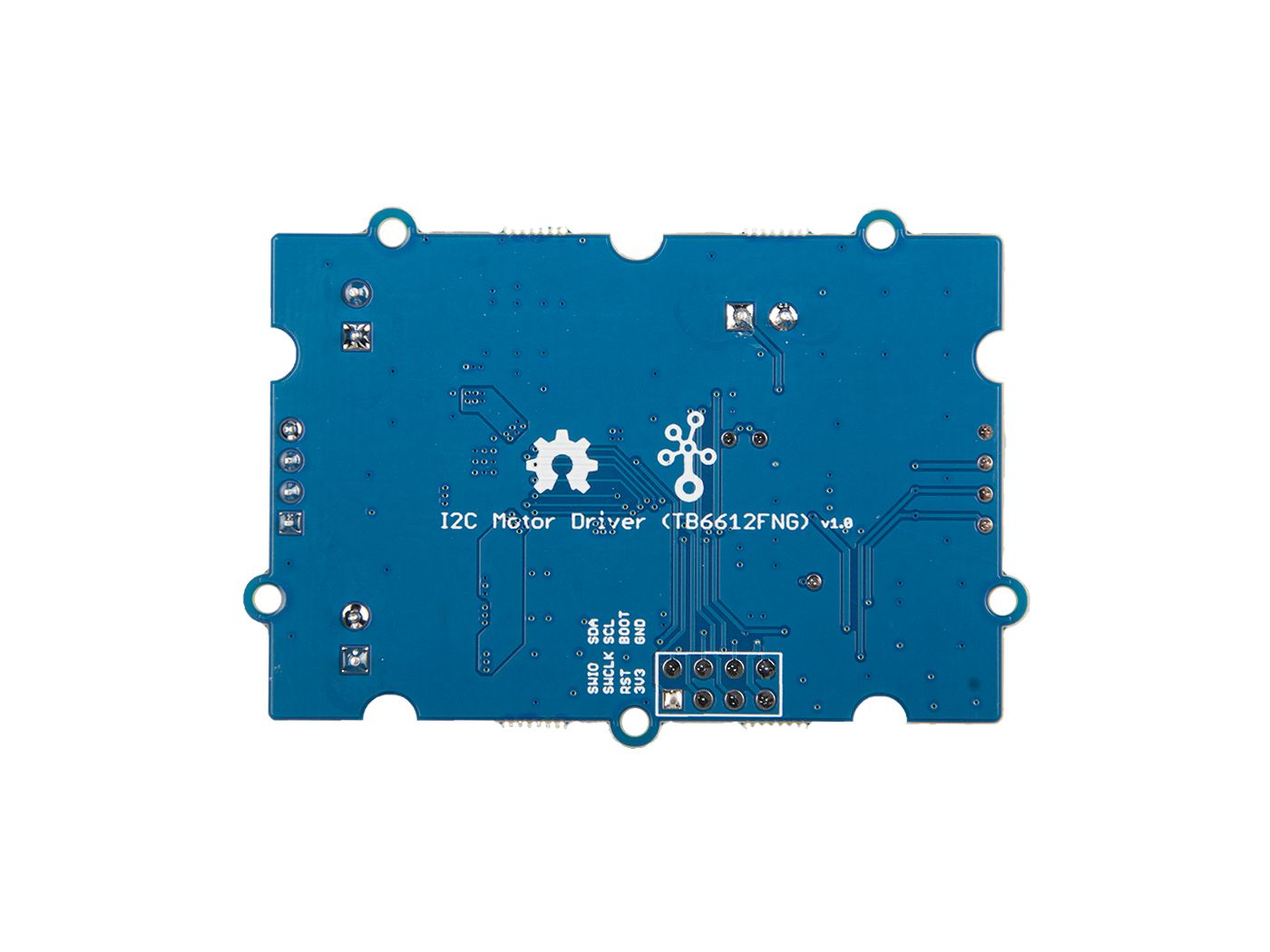

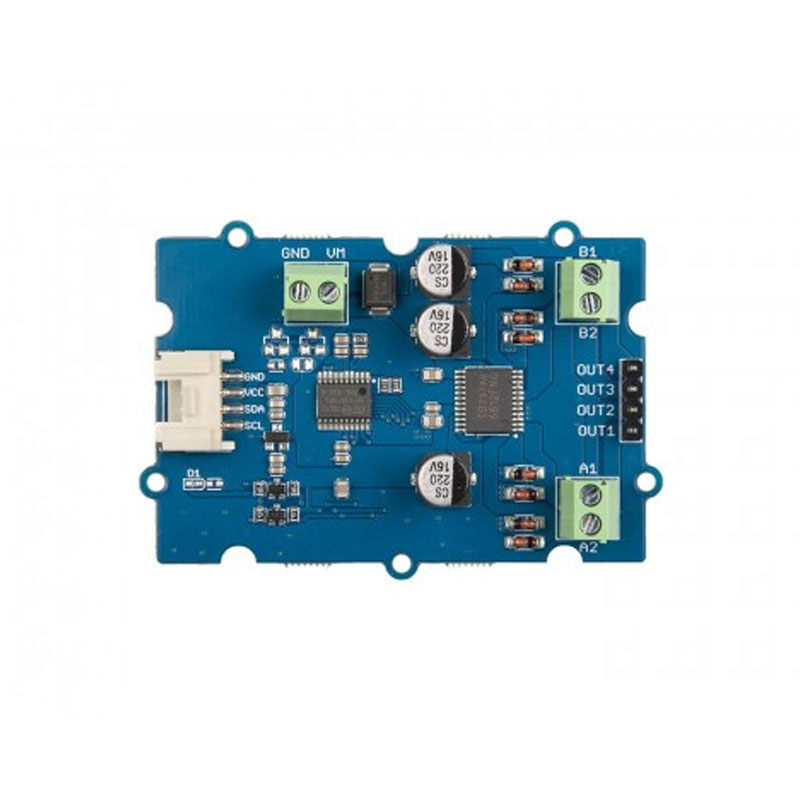

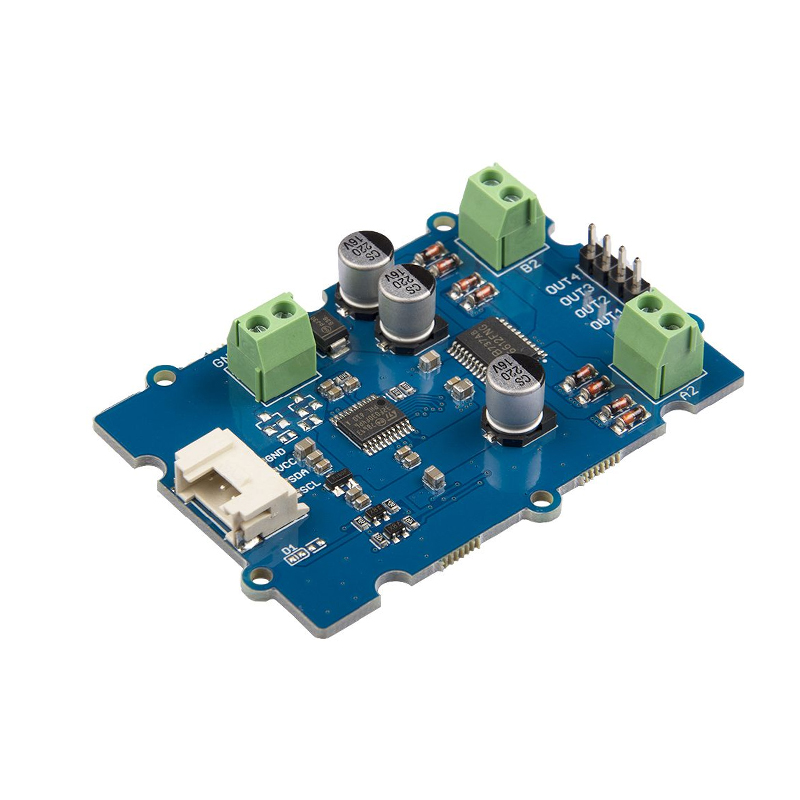

SeeedStudio Grove I2C Motor Driver (TB6612FNG)
- MCU Operating Voltage: 3.3V / 5V
- Motor Supply Voltage: 2.5 ~ 13.5 (5V Typical, 15V Max.)
- Output Current: 1.2 A(ave)/3.2 A (peak)
- Switching Frequency: 100kHz
- Logic Interface: I2C
- I2C Address: 0x14 (default)
SKU: Not Found
Brand: Seeed Studio
Out of stock
₹771.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The Grove – I2C Motor Driver (TB6612FNG) can drive two DC motors up to 12V/1.2A or drive one stepper motor up to 12V/1.2A. With the on-board MCU, it can work with Arduino easily via the Grove I2C interface.
This diver board is based on TB6612FNG, which is a driver IC for DC motor and a stepper motor with output transistor in LD MOS structure with low ON-resistor. Two input signals, IN1 and IN2, can choose one of four modes such as CW, CCW, short break, and stop mode.
Pin Diagram
Features:
- Onboard MCU
- CW/CCW/short brake/stop function modes
- Built-in thermal shutdown circuit and a low voltage detecting circuit
- Standby (Power save) system
Applications:
- DC motor control
- Stepper motor control
Useful Links:

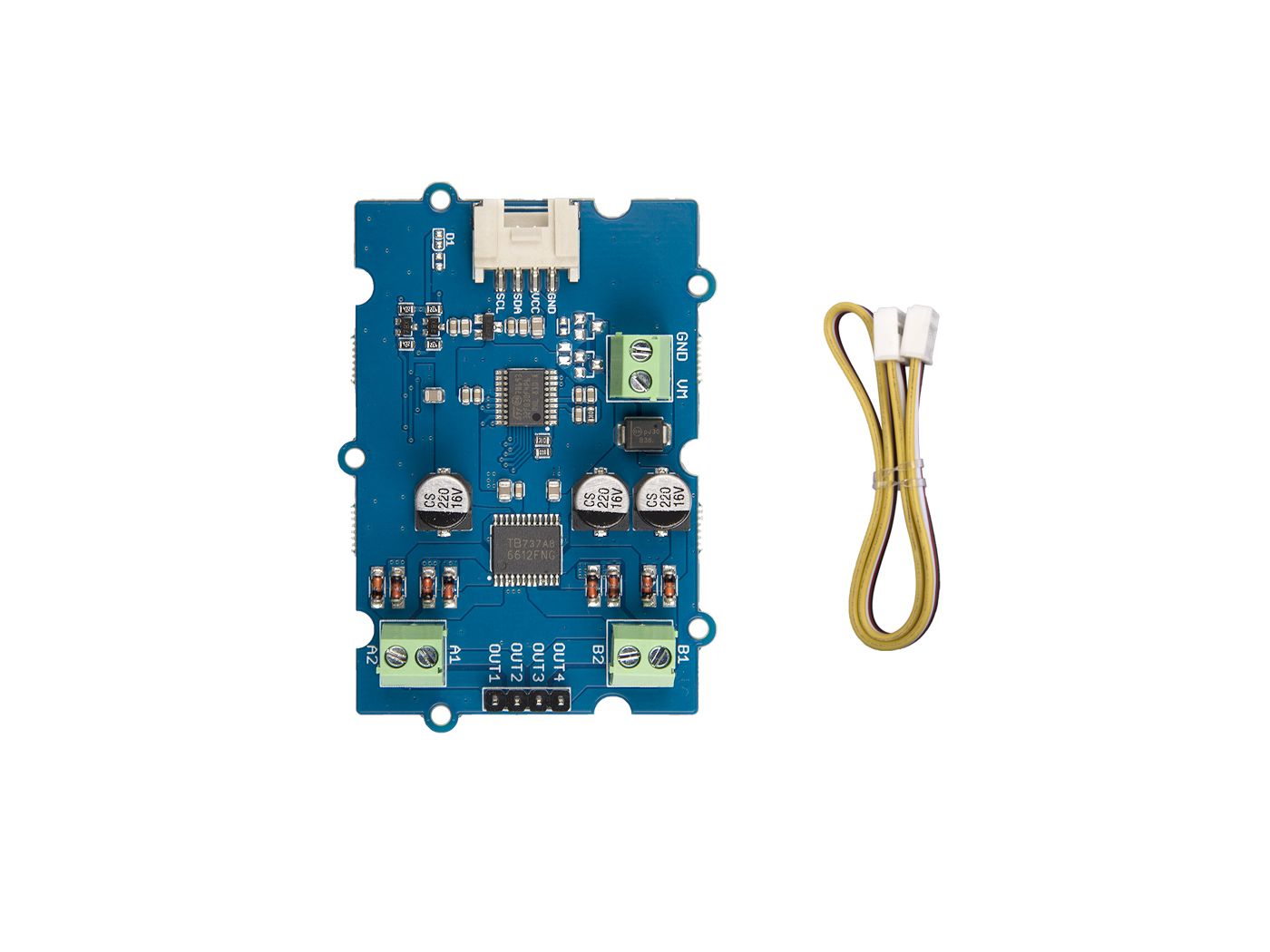

Package Includes:
1 x Grove – I2C Motor Driver (TB6612FNG)
1 x Grove Cable
Technical Specifications
| Current Rating (A) | 1.2 to 3.2 |
|---|---|
| Dimensions (L x W x H) mm | 60 X 40 X 12 |
| I2C Address | 0x14 (Default) |
| Item Type | TB6612 Motor Driver |
| Logic Interface | I2C |
| MCU Operating Voltage | 3.3V / 5V |
| Motor Supply Voltage | 2.5 ~ 13.5 (5V Typical, 15V Max.) |
| Output Current (A) | 1.2 A(ave)/3.2 A (peak) |
| Shipping Dimensions | 14 × 9 × 2 cm |
| Shipping Weight | 0.04 kg |
| Switching frequency | 100kHz |
| Voltage Rating (V) | 2.5 to 13.5 |
| Weight (g) | 13g |
