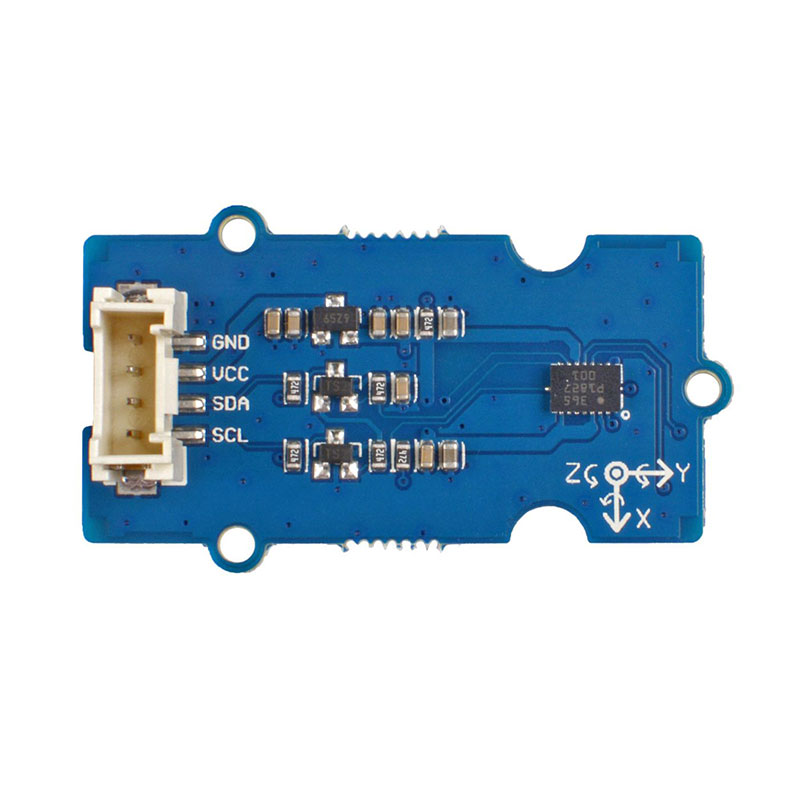

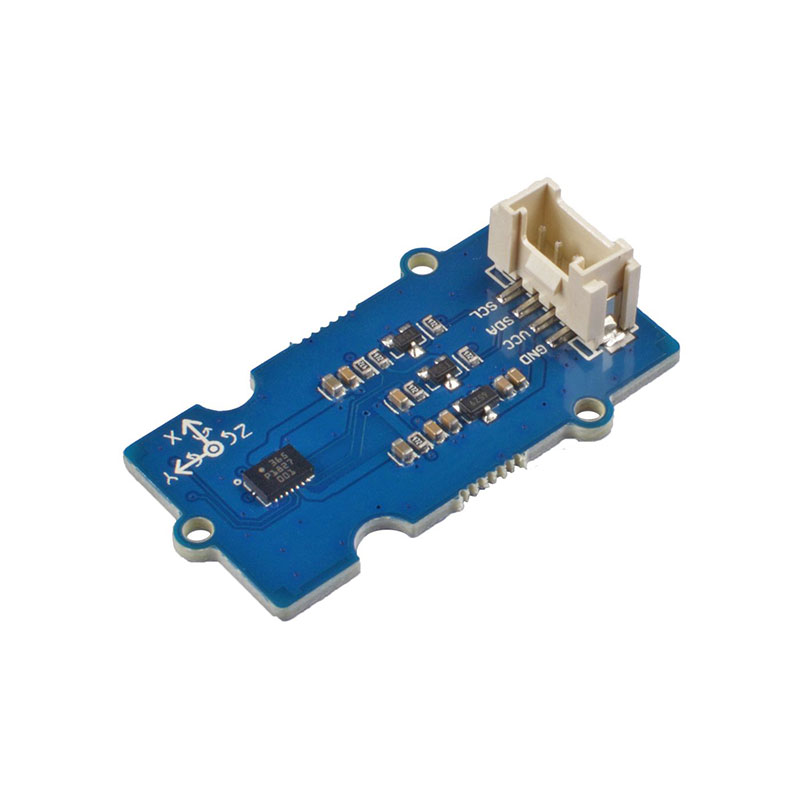

SeeedStudio BMI088 Grove 6 Axis Accelerometer & Gyroscope
- Operating Voltage: 3.3V / 5V
- Operating Temperature Range: -40℃ ~ +85℃
- External Interface: I2C
SKU: Not Found
Brand: Seeed Studio
Out of stock
₹4201.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
The Grove – 6-Axis Accelerometer&Gyroscope(BMI088) is a 6 DoF(degrees of freedom) High-performance Inertial Measurement Unit(IMU).This sensor is based on BOSCH BMI088, which is a high-performance IMU with high vibration suppression. The 6-axis sensor combines a 16-bit triaxial gyroscope and a 16-bit triaxial accelerometer. Specially, you can use this sensor on the drone and robotics applications in demanding environments.

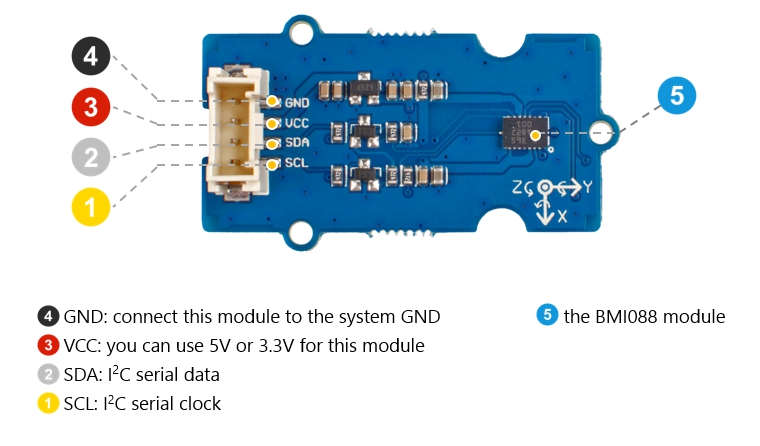

Pin Diagram
Features:
- The BM1088 is designed for drones, robotics and industrial applications with challenging performance requirements.
- Wide acceleration measurement range(up to 24g)
- The accelerometer features a low TCO of 0.2 mg/K and low spectral noise of only 230 pg/sqrt(Hz) in the widest measurement range of ± 24 g
Useful Links:

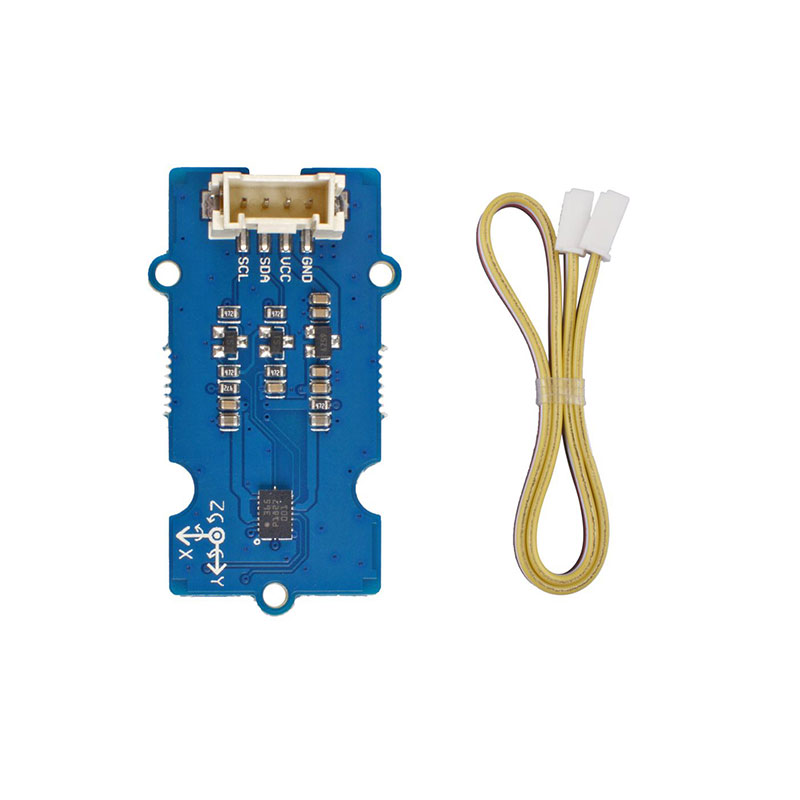

Package Includes:
1 x Grove – 6-Axis Accelerometer and Gyroscope (BMI088)
1 x Grove cable
Technical Specifications
| Accelerometer Type | ?3g @10920 LSB/g, ?6g @5460 LSB/g, ?12g @2730 LSB/g, ?24g @1365 LSB/g |
|---|---|
| Battery | Excluded |
| Gyroscope | ?125?/s @262.1 LSB/?/s, ?250?/s @131.1 LSB/?/s, ?500?/s @65.5 LSB/?/s, ?1000?/s @32.8 LSB/?/s, ?2000?/s @16.4 LSB/?/s |
| Height (mm) | 7 |
| Interface | I2C |
| Item Type | Accelerometer, Gyroscope |
| Length (mm) | 40 |
| Model | Accelerometer Sensor, Gyroscope Sensor |
| Mounting Hole Diameter (mm) | 2 |
| Operating Temperature (°C) | -40? ~ +85? |
| Operating Voltage (VDC) | 3.3 to 5 |
| Shipping Dimensions | 5 × 3 × 2 cm |
| Shipping Weight | 0.015 kg |
| Weight (g) | 10 |
| Width (mm) | 20 |
