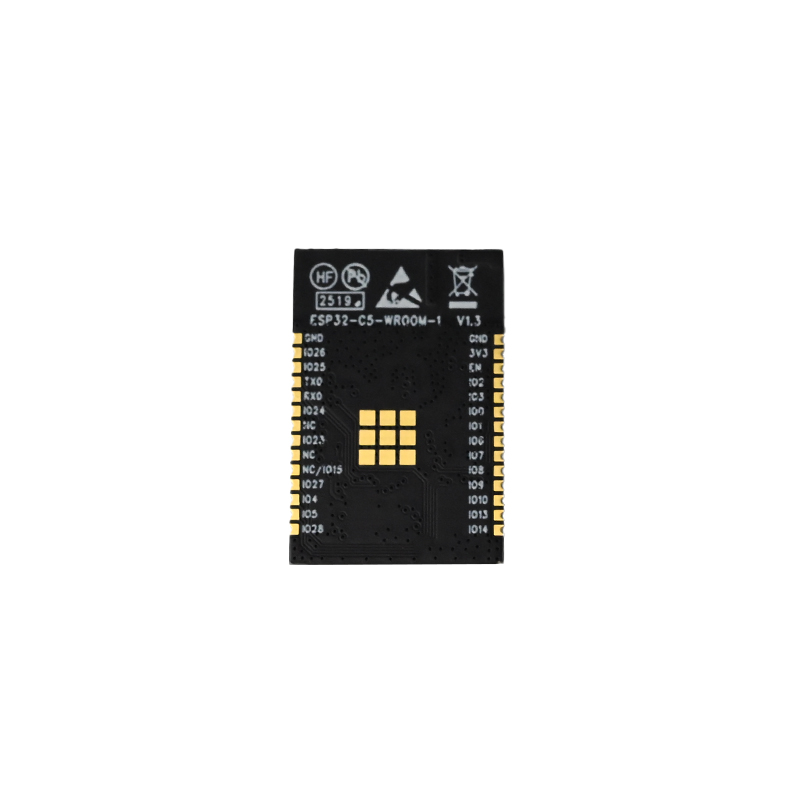

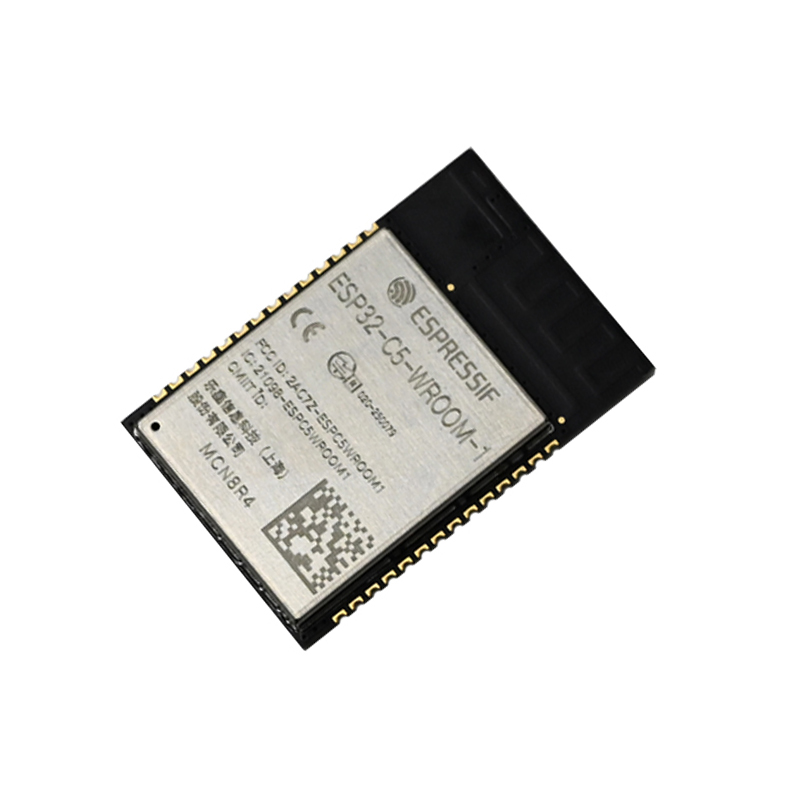

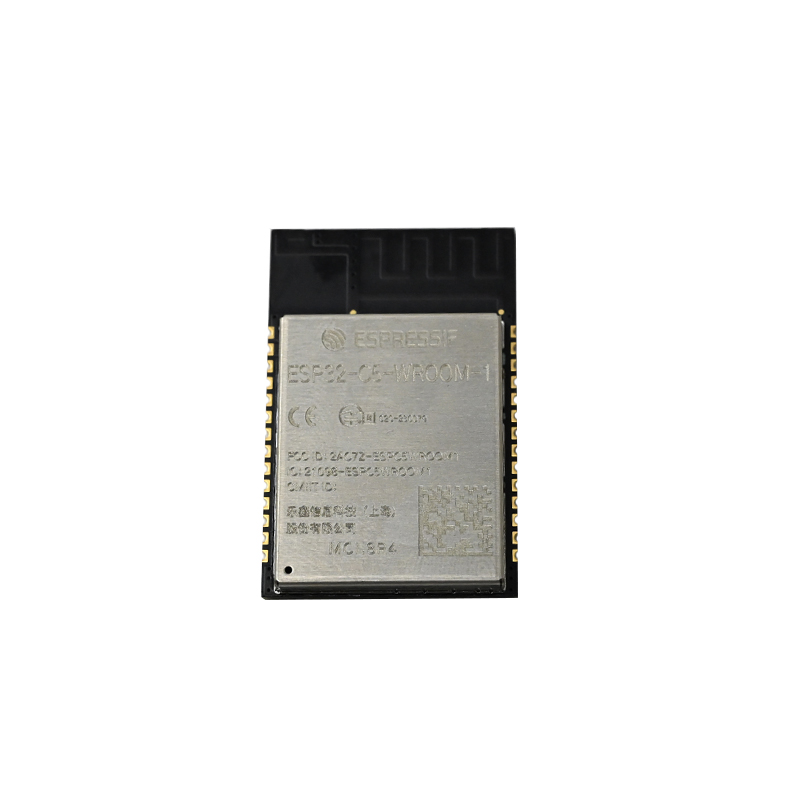

The ESP32‑C5‑WROOM‑1‑N8R4 module combines Espressif’s ESP32‑C5 single‑core RISC‑V MCU (up to 240 MHz) with dual‑band Wi‑Fi 6 (2.4 GHz & 5 GHz) and Bluetooth 5 LE support. Inside are 320 KB ROM, 384 KB high‑performance SRAM, 16 KB low‑power SRAM, and external memory support for up to 16 MB flash and PSRAM 4/8/16 MB variants available With ~29 GPIOs and a comprehensive set of peripherals—from SPI, I²C, UART, ADC, USB 2.0 OTG, RMT, CAN FD, PWM, sensors, to event task scheduler—it meets diverse AIoT needs. Choose models with PCB or IPEX antenna connectivity. Robust security and low‑power modes round out its versatility

Features:

1. Dual‑band Wi‑Fi 6 (802.11ax) in 2.4 GHz & 5 GHz bands with OFDMA, MU‑MIMO, TWT, spatial reuse, beamformee support
2. Bluetooth 5 LE with mesh support, high‑power mode, direction finding (AoA/AoD) & PAwR support
3. Single‑core RISC‑V MCU up to 240 MHz, with 384 KB SRAM, 320 KB ROM, 16 KB RTC SRAM
4. External flash & PSRAM support up to 16 MB for both memory-rich firmware and ML workloads
5. Approximately 29 GPIOs and interfaces: SPI, UART, I²C, I²S, RMT, MCPWM, CAN FD, SDIO, ADC, touch, PWM and more
6. Integrated PCB antenna or optional IPEX connector version (‑1 or ‑1U variants)
7. Rich onboard components: 48 MHz crystal oscillator, flash/PSRAM interface, secure boot and crypto accelerators
8. Supports IoT wireless stacks: Wi‑Fi 6, Bluetooth 5, IEEE 802.15.4 (Zigbee/Thread)

Package Includes:

1 x Espressif ESP32-C5-WROOM-1-N8R4 Module
