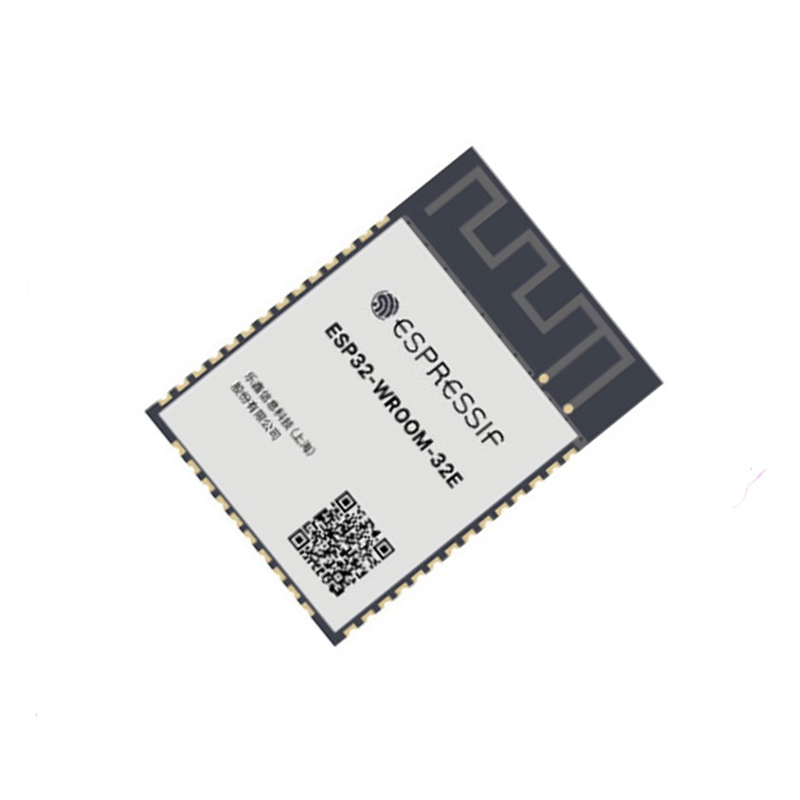

Espressif ESP32-WROOM-32E-N16 Module
- Series: ESP32
- Modulation: CCK, DSSS, OFDM
- Frequency: 2.4GHz ~ 2.5GHz
- Data Rate: 150Mbps
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
SKU: Not Found
Brand: Espressif
Out of stock
₹367.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
ESP32-WROOM-32E is powerful, generic Wi-Fi + Bluetooth + Bluetooth LE MCU modules that target a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming and MP3 decoding.
ESP32-WROOM-32E comes with a PCB antenna, with a connector for an external antenna. The information in this datasheet is applicable to modules.
Features:
- ESP32-WROOM-32E: On-board PCB antenna
- Supports a Supply voltage range of 3V to 3.6V
- Frequency is 2.4GHz ~ 2.5GHz
Package Includes:
1 x Espressif ESP32-WROOM-32E-N16 Module
Technical Specifications
| Data Transfer Rate | 150Mbps |
|---|---|
| Frequency (GHz) | 2.4 to 2.5 |
| Modulation Type | CCK, DSSS, OFDM |
| Mounting Type | Surface Mount |
| Operating Temperature (°C) | -40 to 85 |
| Sensitivity (dBm) | -98 |
| Series | ESP32 |
| Shipping Dimensions | 10 × 7 × 2 cm |
| Shipping Weight | 0.01 kg |
| Supply Voltage (V) | 3 to 3.6 |
