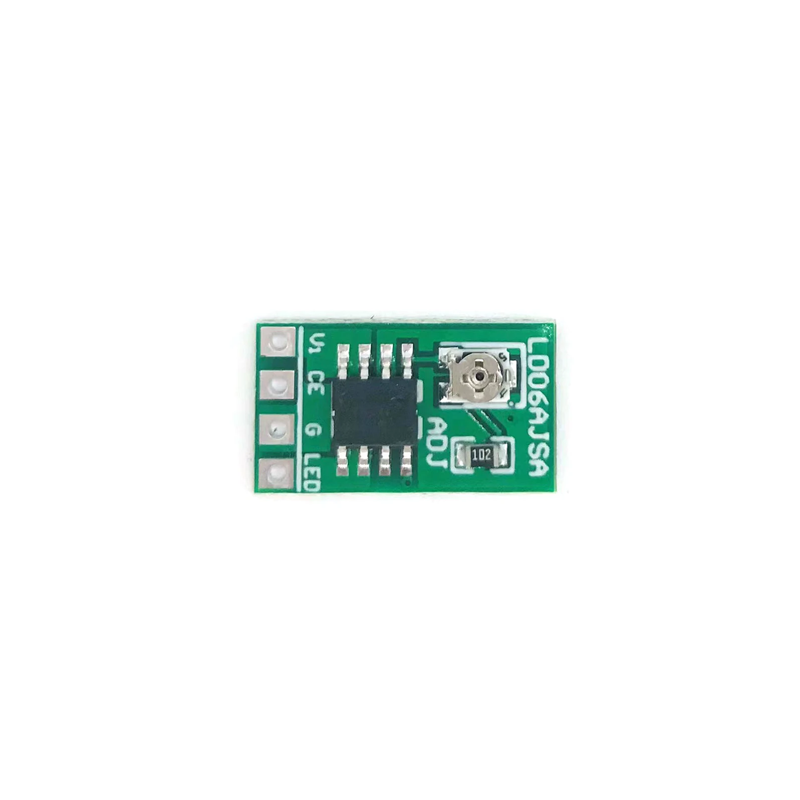

DC 3.3/3.7/5V, 30-1500mA LED Driver Constant Current Adjustable Module
- Working Voltage: DC 2.8V–6V
- Output Current: 30–1500mA Adjustable
- Max Output Power: 9W
- LED Support: 1–16pcs (2.8–6V LEDs)
SKU: Not Found
Brand: Generic
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
This adjustable constant current LED driver module is a reliable solution for powering multiple LEDs efficiently. Supporting a wide working voltage range of DC 2.8V to 6V, it is ideal for 3.3V, 3.7V, and 5V systems. The module can drive 1 to 16 pieces of 2.8–6V LEDs with a maximum output current of 1.5A and maximum output power of 9W. Current adjustment is flexible and can be done either via the onboard adjustable resistor or by PWM signal control, allowing precise brightness control.
Built with intelligent chip temperature regulation and over LED current protection, it enhances performance stability and safety. Its compact size makes it suitable for DIY lighting, portable LED devices, and small embedded lighting projects where consistent brightness and protection are essential.
Features:
- Supports DC 2.8V–6V input
- Adjustable output current: 30–1500mA
- Drives 1–16pcs 2.8–6V LEDs
- PWM signal dimming control supported
- Onboard adjustable resistance control
- Maximum output power up to 9W
- Chip temperature regulation design
- Over LED current protection
Package Includes:
1 x DC 3.3/3.7/5V, 30-1500mA LED Driver Constant Current Adjustable Module
Technical Specifications
| Application | LED lighting, battery LED systems, portable LED drivers |
|---|---|
| Control Interface | PWM / Potentiometer |
| Height (mm) | 02 |
| Item Type | Adjustable Constant Current LED Driver Module |
| LED load | Supports Drives 1–16 LEDs (2.8–6V each) |
| Length (mm) | 18 |
| Nominal Voltages Supported | 3.0V, 3.3V, 3.7V, 4.5V, 5V, 6V |
| Output Current (A) | 30mA – 1500mA (Adjustable) |
| Output Power (W) | 9 |
| Shipping Dimensions | 8 × 6 × 1 cm |
| Shipping Weight | 0.003 kg |
| Weight (g) | 02 |
| Width (mm) | 10 |
| Working Voltage | DC 2.8V – 6V |
