Solenoids and Electromagnets

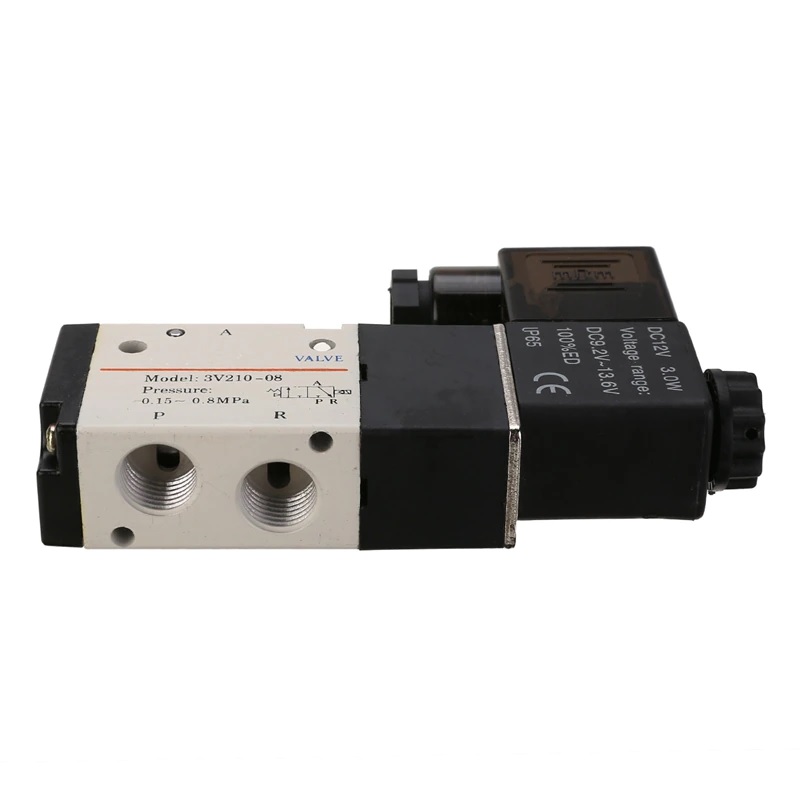

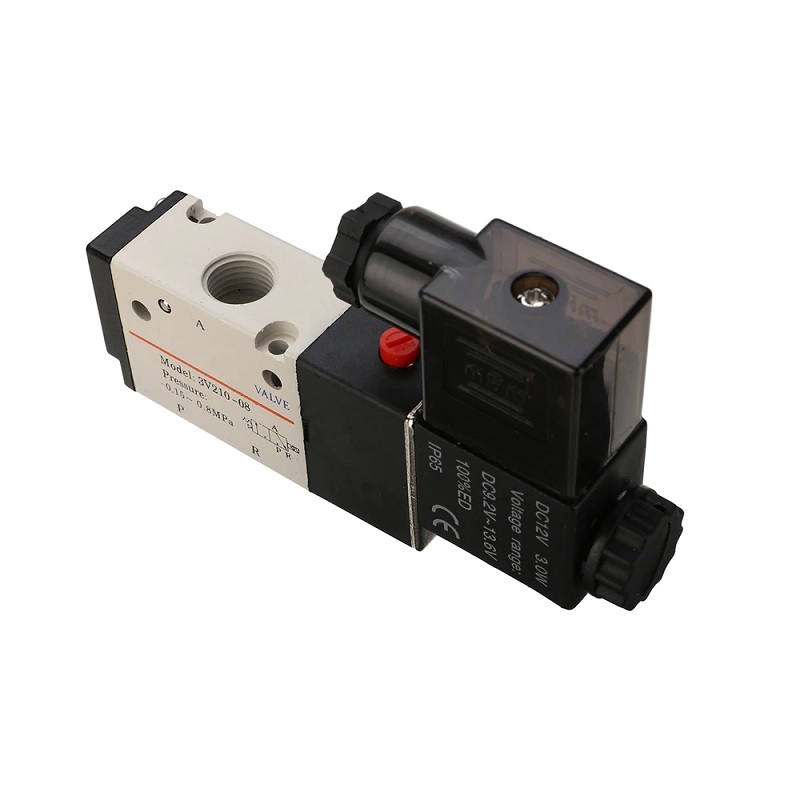

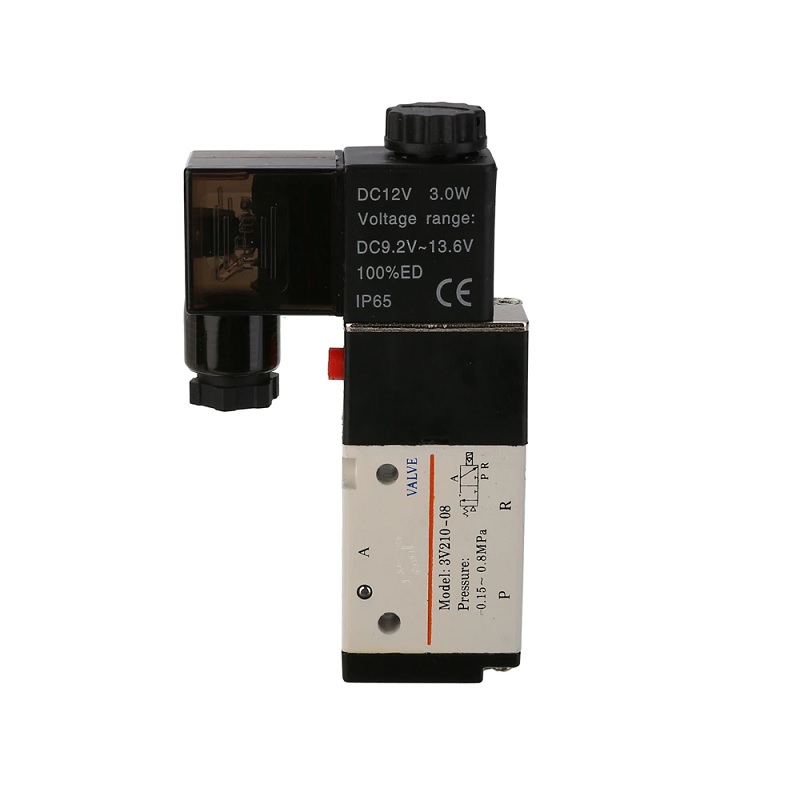

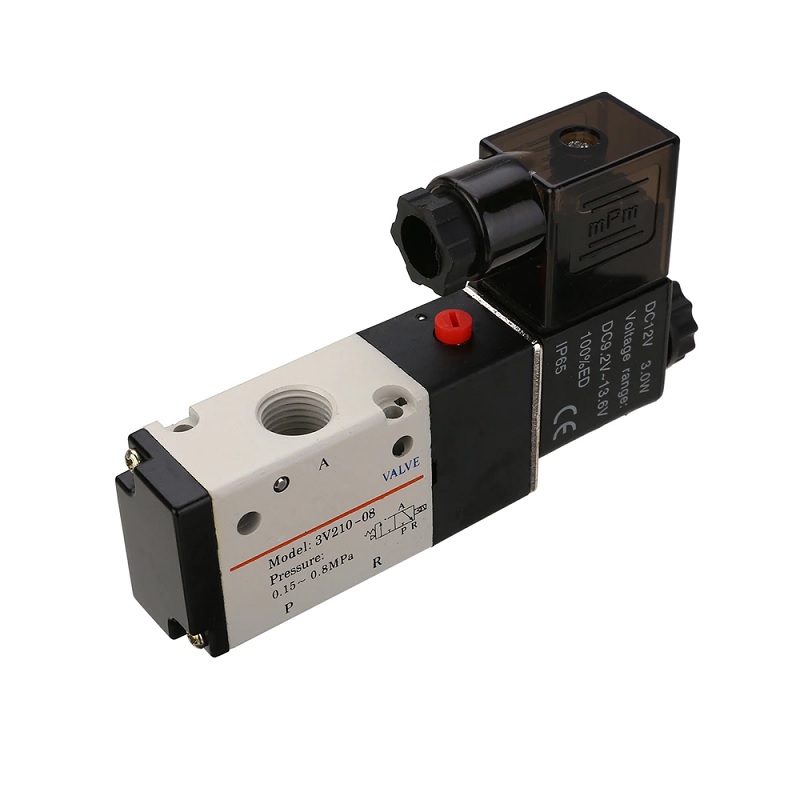

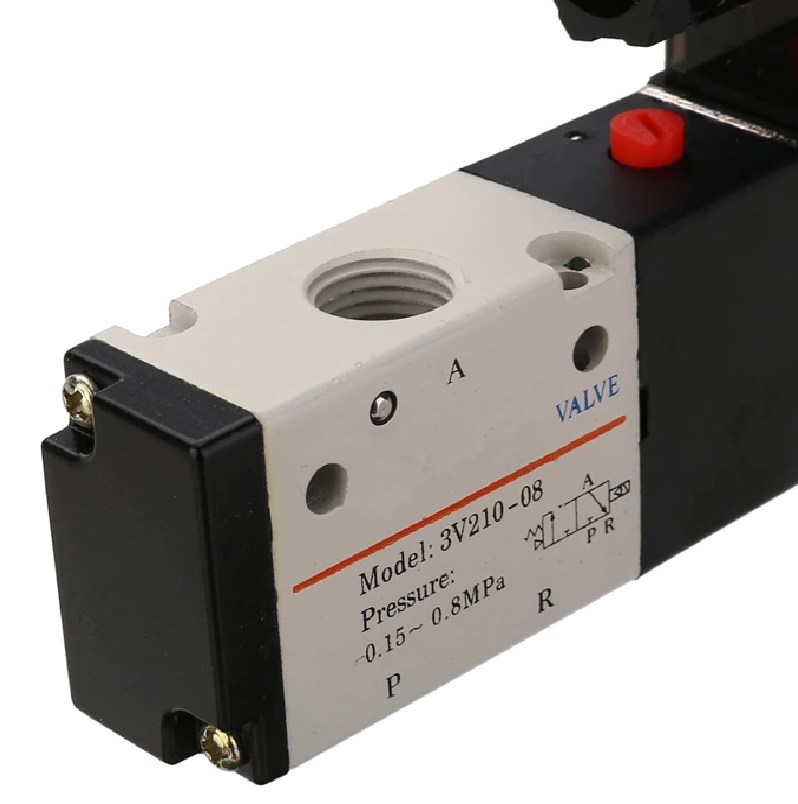

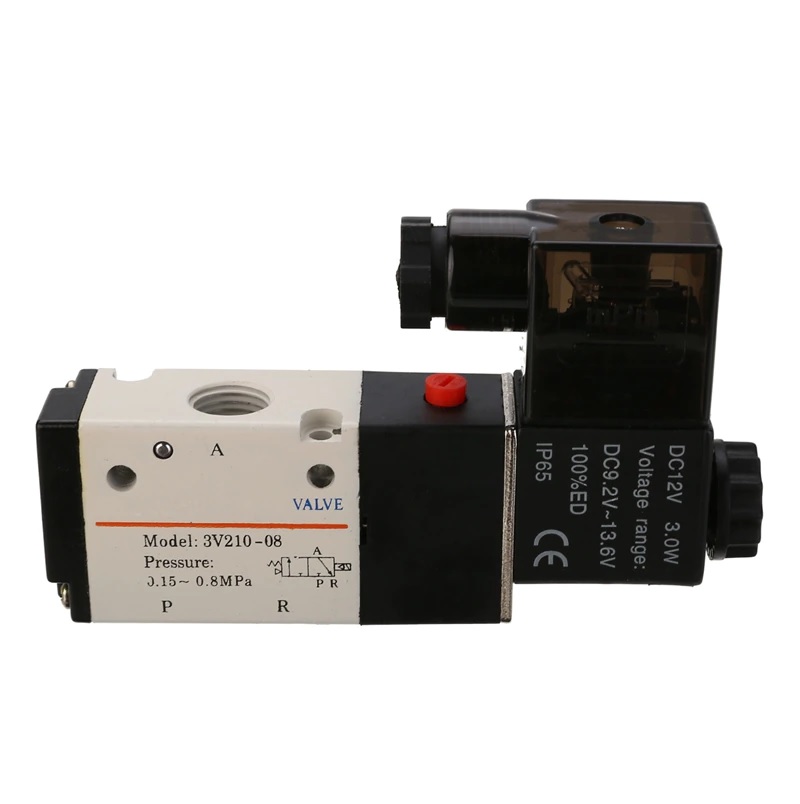

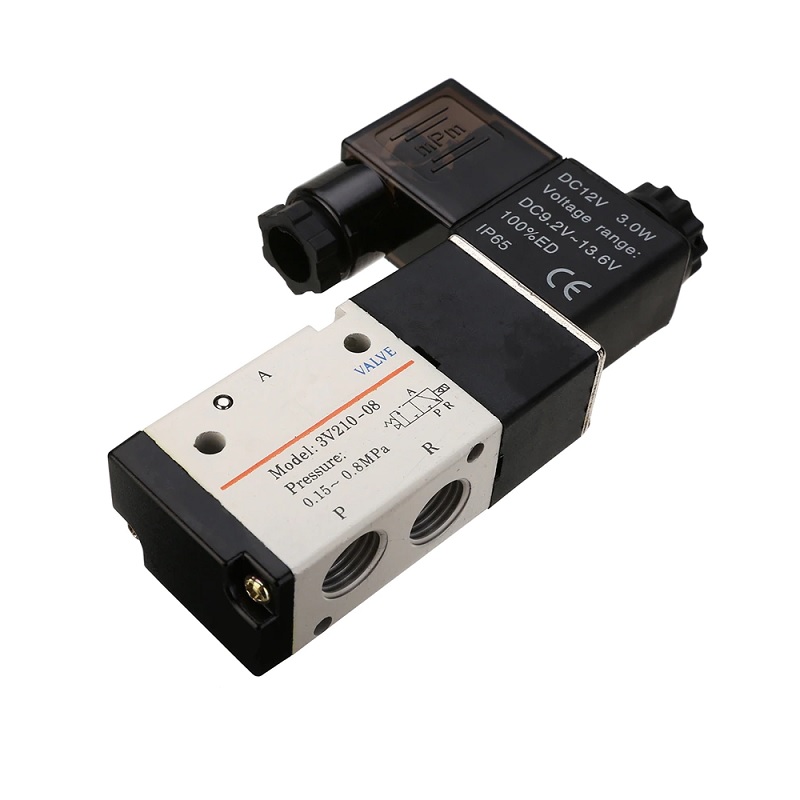

DC12V 1/4” 3 Way 2 Position Pneumatic Solenoid Valve for controlling compressed air (gas)
- Model: 3V210-08
- Biggest Withstanding Pressure: 12kgf/c㎡
- Working Medium: Air(40 micron cleaned)
- Power Consumption: DC12V, 2.5W
- Motion Pattern: Internal Pilot
- Protection Class: IP65(DIN40050)
SKU: Not Found
Brand: Generic
Out of stock
₹1243.00
Free Delivery Expected:
Thursday, May 28 - Saturday, May 30
Order within the next 16 hrs to get it by this date.
- 100% Secure Checkout
- 7-Day Easy Returns
- Authentic & Quality Checked
- 24/7 Priority Support
Product Description
DC12V 1/4” 3 Way 2 Position Pneumatic Solenoid Valve for controlling compressed air (gas)
Package Includes:
1 x DC12V 1/4” 3 Way 2 Position Pneumatic Solenoid Valve for controlling compressed air (gas)
Technical Specifications
| Adapter's Caliber | Air-in=Air Out=PT1/8, Air-in=Air Out=PT2/8, Air-in=Air Out=PT3/8 |
|---|---|
| Ambient Temperature (°C) | 5~60℃(23~140)℉ |
| Body Material | Al Alloy |
| Effective Section Area | 14㎡(Cv=0.78), 16㎡(Cv=0.89), 25㎡(Cv=1.39), 30㎡(Cv=1.67) |
| Electrifying Model | Box Type |
| Highest Action Frequency | 5/sec |
| Insulation Class | Class F |
| Item Type | Solenoid Valve |
| Model Name | 3V210-08 |
| Motion Pattern | Internal Pilot |
| Power Consumption (W) | DC12V, 2.5W |
| Protection Class | IP65(DIN40050) |
| Response Time(s) | 0.05s |
| Shipping Dimensions | 12 × 7 × 1 cm |
| Shipping Weight | 0.2 kg |
| Voltage Rating (V) | 12VDC |
| Withstanding Pressure | 12kgf/c㎡ |
| Working Medium | Air(40 micron cleaned) |
| Working Pressure | 1.5~8.0 kgf/c㎡ |
